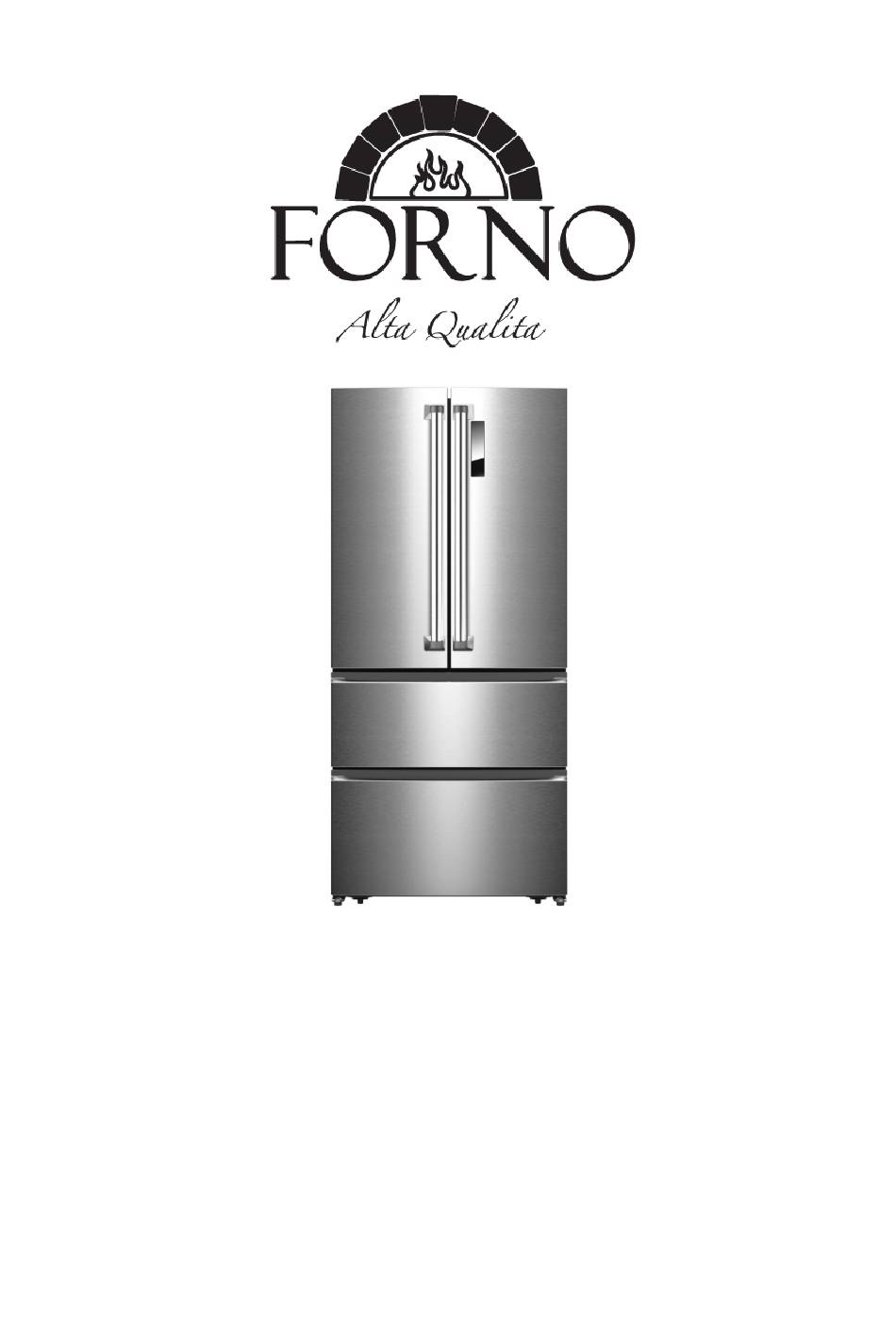

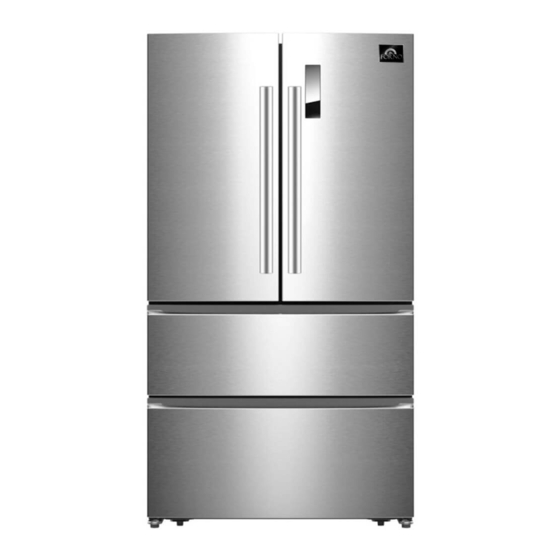

- Page 1 FFFD1907-33S 33” French Door Refrigerator BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATINGINSTRUCTIONS. RETAIN THIS INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. IF YOU TRANSFER THE APPLIANCE TO A THIRD PARTY, ALSO HAND OVER THIS INSTRUCTION MANUAL.
- Page 2 Index Customer Care Safety information ignal words Safety instructions limatic classes nstallation Accessories Door handle installation Unpacking and positioning Space and ventilation requirements Leveling Flipper clapboard Operation Description of the appliance Operating buttons and display Key lock / Child protection Setting of the temperature Selection of the modes Door alarm...
-
Page 3: Customer Care
Or email: info@forno.ca Digital instruction manual can be downloaded from www.forno.ca If your appliance ever requires servicing, be sure to use a FORNO Factory Certified Service provider recommended by our customer care center. All Factory Certified Service providers are carefully selected and thoroughly trained by us. -
Page 4: Correct Disposal Of This Product
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Safety Information
Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance. The figures in this instruction manual may differ in some details from the current design of your appliance. -
Page 6: Signal Words
persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised. - Page 7 CAUTION – Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used. DANGER - Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside. WARNING! To reduce the risk of burns, electrocution, fire or injury to persons: 1.
- Page 8 23. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator. 24. Do not put any heat-radiating appliances onto your appliance. 25. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
-
Page 9: Climatic Classes
10. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time. 11. Do not operate the appliance unless all components are installed properly. 12. - Page 10 damp cloth using lukewarm water and a mild detergent ( see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance! 4. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
- Page 11 Space and ventilation requirements Observe the required minimum distances for proper ventilation. All dimensions in this chapter are given in millimeters Space requirements of the appliance A = Depth / B = Width / C = Depth (when the doors are open) / D = Space requirement of the doors 600mm 830mm...
- Page 12 Sides ↔ wall Mind. 30cm Door opening angle Mind. 132° SPACE REQUIREMENT INCL. MINIMUM DISTANCES FOR PROPER VENTILATION: A 1= Depth / B 1 = Width / C 1 = Depth (when the doors are open) / D 1 = Space requirement of the doors Mind.
-
Page 13: Operation
Flipper clapboard 1. Ensure that the flipper clapboard (depending on model) is in proper position; otherwise the door cannot be closed properly. 2. It is normal that the clapboard becomes hot as it is equipped with an integrated heating element for dewing protection Correct Incorrect Operation... -
Page 14: Description Of The Appliance
Description of the appliance The figure above is an example only. Modifications are possible. Fridge Internal light of the fridge (LED) Door trays Bottle shelf Crispers Glass shelves Break-proof glass covers of the crispers Freezer Upper freezer drawer / freezer compartment Lower freezer drawer / freezer compartment Adjustable feet AFTER INSTALLATION WAIT 4-6 HOURS BEFORE YOU CONNECT YOUR APPLIANCE TO THE... - Page 15 Fridge + 5 °C(41°F) Freezer - 18 °C(- 0.4°F) ※The settings of the temperature of both the fridge and freezer can be adjusted manually, if required (see chapter SETTING OF THE TEMPERATURE) INDICATORS OF THE DISPLAY: Indicator of the FRIDGE Indicator of the FREEZER Indicator of the set TEMPERATURE of the fridge or freezer Indicator of the FAST COOLING MODE...
- Page 16 ※Press the button MODE (C) for 3 seconds to turn the KEY LOCK / CHILD PROTECTION on. >The indicator of the KEY LOCK / CHILD PROTECTION (8) goes on. >All keys of the display are locked DEACTIVATION OF THE KEY LOCK / CHILD PROTECTION: ※Press the button MODE (C) for 3 seconds to turn the KEY LOCK / CHILD PROTECTION off.
- Page 17 FREEZER: ※You can set the temperature from -15 °C(5°F)to -25 °C(-13°F). >Press the button COM. CHOICE (A) repeatedly until the indicator of the freezer (2) goes on. >Press the button TEMP (B) for the setting of the temperature repeatedly until the desired temperature is displayed (3). >After a few seconds without using any operation buttons, the set temperature will be activated.
-
Page 18: Vacation Mode
>Press the MODE BUTTON (C) repeatedly until the indicator of the ARTIFICIAL INTELLIGENCE MODE (6) goes on. >After a few seconds without using any operation buttons, the ARTIFICIAL INTELLIGENCE MODE will be activated. VACATION MODE: >Press the MODE BUTTON (C) repeatedly until the indicator of the VACATION MODE (7) goes on. -
Page 19: Door Alarm
>After a few seconds without using any operation buttons, the FAST COOLING MODE will be activated. >The FAST COOLING MODE can be quitted at any time by pressing the button TEMP (B). The temperature of the fridge will be reset to the previous setting ※The temperature of the fridge will be set to +2 °C(35.6°F)automatically. -
Page 20: Glass Shelves
Door trays 1. Depending on model the medium door trays can be removed. 2. Remove all stored food of the relevant door trays before. 3. Lift the door tray vertically. 4. Insert the door tray by proceeding vice versa. The door trays can be removed and inserted for cleaning as shown above (depending on model) Glass shelves 1. -
Page 21: Environmental Protection
※ Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain. ※ Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags. ※... -
Page 22: Storage Of Food
will depend on how the appliance is used and where it is located. Meaning of the *-labeling of freezers 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food. 2-stars (**) and 3-stars (***) freezers are suitable for storing frozen food (pre-frozen) and ice or for making ice and ice cubes. - Page 23 Store foods that are very fresh and of good quality. Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in color or losing taste and will help maintain freshness. It will also prevent odor transfer.
- Page 24 tomatoes. Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying. Do not refrigerate avocados (until they are ripe), bananas and mangoes. Freezing and storing food in the freezer compartment To store deep-frozen food. To make ice cubes.
-
Page 25: Operational Parameters
Plastic film, tubular film made of polyethylene, aluminum foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C(-0.4°F)) Food Storage time... -
Page 26: External Cleaning
6. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance. Cleaning and maintenance DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK! WARNING! Disconnect the appliance from the mains before you clean or maintain it. -
Page 27: Cooling Compartment
DRAIN HOLE (depending on model): >Clean the drain hole at the back of the cooling compartment periodically; otherwise defrost water can get into the cooling compartment. Use a suitable device such as a pipe cleaner. NOTICE! Empty and clean the drip tray regularly! Defrosting COOLING COMPARTMENT >The cooling-compartment is defrosted automatically... -
Page 28: Troubleshooting
Trouble shooting WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only. MALFUNCTION POSSIBLE CAUSE MEASURE THE APPLIANCE DOES NOT WORK AT ALL 1. - Page 29 THE LIGHT IS NOT WORKING 1. The LED light may be damaged. 1. Refer to replace LED lights in cleaning and 2. The control system has disabled the lights care chapter. due to the door being kept 2. Close and reopen the door to reactivate the open too long.
-
Page 30: Technical Data
1. Do the same as described above, or 2. let the appliance operate. a. remove all perishable food from the cooling compartment. b. clean the cooling compartment. c. freeze all food which is suitable to be frozen. IF YOU WANT TO MOVE THE APPLIANCE: 1. -
Page 31: Waste Management
Waste management 1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD! 2.
