2D BARCODE SCANNING
Using the 2D barcode scanner:
The Infinea TAB 2D uses a scan engine that supports one-dimensional (1D) and
two-dimensional (2D) barcode symbols. The effective reading distance of the
barcode reader varies depending on the barcode size.
Scanning 2D Barcodes:
To scan a 2D barcode fist activate the scanner. Then position the scan head to
center the aiming laser near the center of the barcode and the illumination box
is over the outer edges of the barcode as shown in the figure below.
!

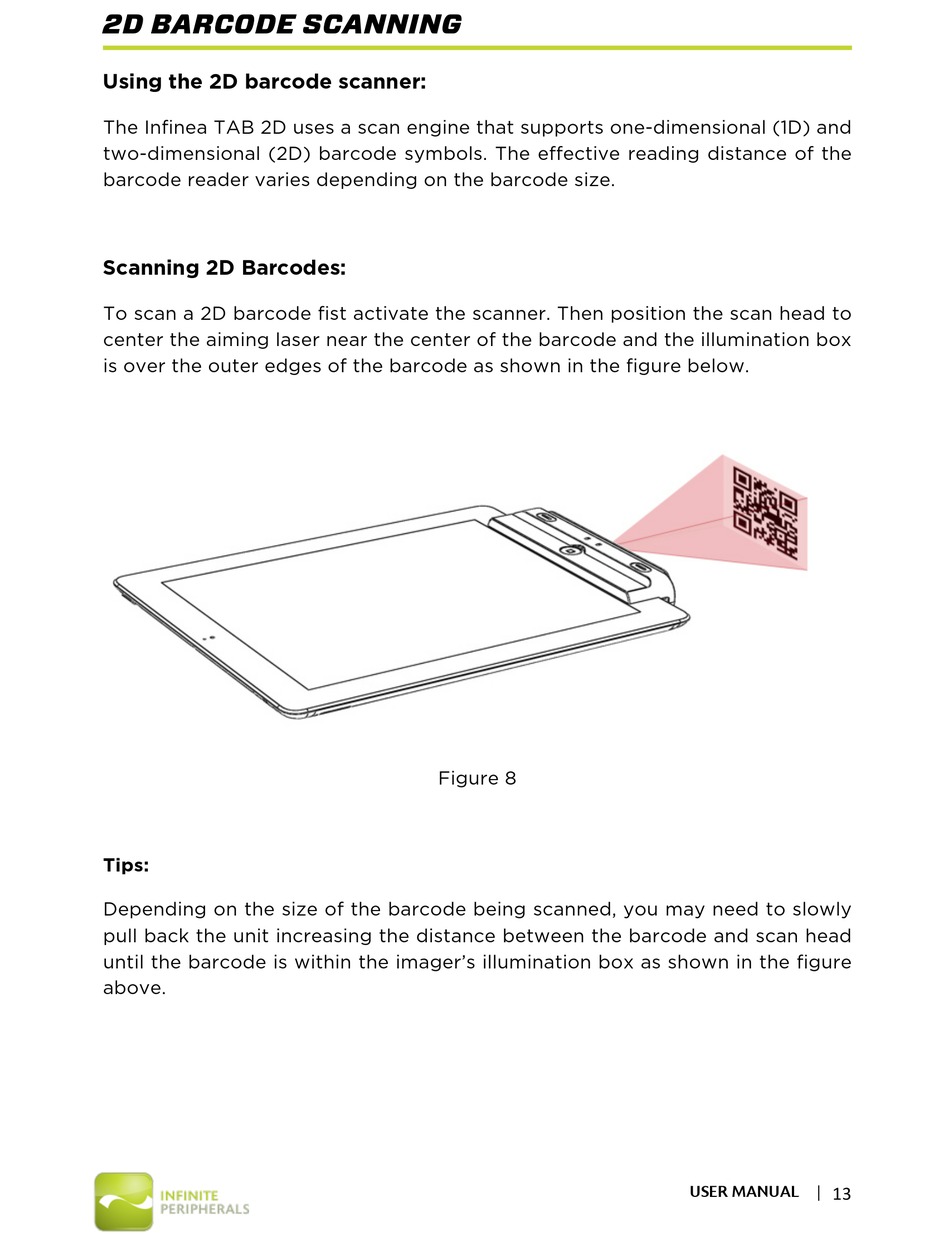

Figure 8
Tips:
Depending on the size of the barcode being scanned, you may need to slowly
pull back the unit increasing the distance between the barcode and scan head
until the barcode is within the imager's illumination box as shown in the figure
above.
*#!
