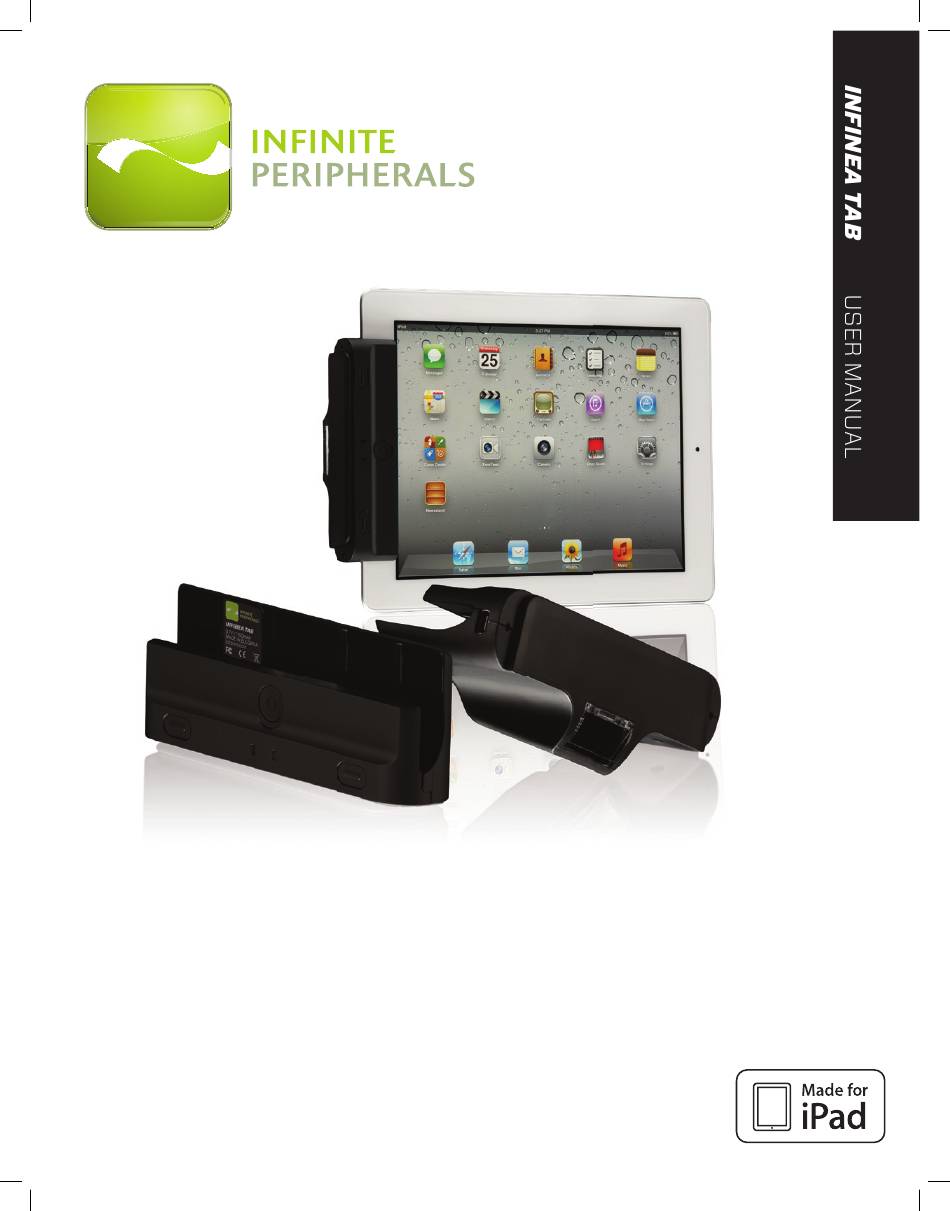

- Page 1 INFINEA ™ iPad®...
- Page 2 CONTACT INFORMATION National Sales Headquarters: Infi nite Peripherals, Inc. 1124 Main Street Suite B Irvine, CA 92614 Toll Free: (866) 278-7860 ce: (949) 222-0300 Fax: (949) 222-0375 HQ and Main Distribution Facility: Infi nite Peripherals, Inc. 3104 N. Arlington Heights Road Arlington Heights, IL 60004 Toll Free: (800) 278-7860 Phone: (847) 818-1260...
- Page 3 LEGAL NOTICE “Made for iPad” means that an electronic accessory has been designed to connect specifically to iPad, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPad may affect wireless performance.
-
Page 4: Table Of Contents
CONTENTS Compatability Models Overview Technical Data Box Contents Getting Started About Your INFINEA TAB Assembling Your INFINEA TAB Charging Your INFINEA TAB Status and Operational Modes 1D Barcode scanning 2D Barcode scanning MSR reading RFID reading Syncing Replacing battery Develping Solutions Secured Device Information Troubleshooting Card Reading Troubleshooting Scanning... - Page 5 MODELS Features Encryption Part # Scanner RFID Bluetooth Battery Standard LPTX-MSE LPTX-S-MSE LPTMS LPTMSE LPT-S-MSE LPTE LPT-S-E LPTBTRE LPT-S-BTE LPTC2D LPTC2DE LPT-S-C2DE LPTC2DBTRE LPT-S-C2DBTE Table 1 USER MANUAL...
-
Page 6: Overview
OVERVIEW The Infinea TAB allows mobile employees to convert their iPad into a powerful solution for retail, warehousing, supply chain, ticketing and hospitality industries. The Infinea TAB includes optional 1D or 2D barcode scanner, 3-track encrypted magnetic stripe reader, optional Bluetooth support, and RFID. Features: Battery: Rechargeable Li-ion Battery –... -
Page 7: Technical Data
TECHNICAL DATA General Specifications: Power supply From iPad & from internal Li-Ion Battery 3,7V (700-1100)mAh Active (turn on Infinea TAB) / Active with Scanning / Stand By (after 5sec without operate) Modes of Active (disconnected Bluetooth) / Active(connected Bluetooth) / operation Active Search Magnetic card reader, Bar code reader, RFID reader... -
Page 8: Box Contents
BOX CONTENTS Your Infinea TAB comes with the following items listed below: Item Part Number Descriptions Image Infinea TAB Reader / Infinea TAB Scanner USB A to mini USB USB sync cable Infinea TAB Quick Start Infinea TAB Quick Start Guide Table 3 *Bulk Shipments may ship without cables and manuals in each box. -
Page 9: Getting Started
GETTING STARTED The Infinea TAB allows you to scan barcode and capture Magnetic Strip information onto your iPad. Before using your Infinea TAB the battery should be properly charged. The following Quick Start guide will help to get your Infinea TAB ready for use. Quick Start: Where to find more Step... -
Page 10: About Your Infinea Tab
ABOUT YOUR INFINEA TAB Scan Button 2. Scan Button 3. Home Button 4. RFID Receiver/Transmitter 5. Magnetic Strip Reader 6. Docking Connectors 7. Barcode Scanner Figure 1 8. 30 Pin iPad connector 9. USB Sync & Charging Port Figure 2 USER MANUAL... -
Page 11: Assembling Your Infinea Tab
ASSEMBLING YOUR INFINEA TAB Align both the home button on iPad and Infinea TAB as shown below. Figure 3 2. Gently slide Infinea TAB into position as shown below. Figure 4 USER MANUAL... -
Page 12: Charging Your Infinea Tab
CHARGING YOUR INFINEA TAB Charging the Infinea TAB through USB port: The Infinea TAB uses a Lithium Ion rechargeable battery pack. Before first use, the battery pack should be charged for at least (4) hours. To prevent electrical damage to the Infinea TAB and/or battery pack, please use approved AC adaptors and USB to Mini USB cables only. -
Page 13: Status And Operational Modes
STATUS AND OPERATIONAL MODES The Infinea TAB uses LEDs to indicate various conditions of operation. This may be charging, active or online, battery low conditions. The following explains these conditions and LED indication. Status Slow flashing, indicates no Fast flashing, indicates connection with iOS connection with iOS Application. -
Page 14: Barcode Scanning
1D BARCODE SCANNING Using the 1D barcode scanner: The Infinea TAB 1D uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 1D Barcodes: To scan a 1D barcode fist activate the scanner. Then position the scan head as close to the barcode label as possible so that the scan line crosses both ends of the barcode as shown in the figure below. - Page 15 2D BARCODE SCANNING Using the 2D barcode scanner: The Infinea TAB 2D uses a scan engine that supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 2D Barcodes: To scan a 2D barcode fist activate the scanner.
-
Page 16: Msr Reading
MSR READING Reading Magnetic Strips: The Infinea TAB has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head requiring a single swipe to read field data from all three tracks. The magnetic read head faces outwards. When placing the card into the reader, the magnetic strip must be facing towards the iPad as shown in the figure below. -
Page 17: Rfid Reading
RFID READING Reading RFID Cards: The Infinea TAB has a built-in RFID tag/card reader. The RFID reader incorporates several RFID format depending on the model of your Infinea TAB. To Read/Write to RFID tag/cards will require special software not included with the Infinea TAB. -
Page 18: Syncing
SYNCING The Infinea TAB portable barcode scanner and card reader is designed specifically for use with iPad there by allowing the iPad to sync with iTunes through the Infinea TAB while connected. To sync iPad with iTunes through the Infinea TAB follow the steps below; Connect the Infinea TAB to a computer using a Mini USB cable as shown in the figure below. -
Page 19: Replacing Battery
REPLACING BATTERY The Infinea TAB portable barcode scanner and card reader is designed with an internal Lithium Ion rechargeable battery pack. For problems related to battery not charging or unit not turning on, please consult your Infinite Peripheral representative or certified service center. Figure 12 Warning: Disassembling of the Infinea TAB may impact your Infinea TAB... -
Page 20: Develping Solutions
DEVELPING SOLUTIONS Integrating the Infinea TAB into your solution requires the use of the Infinea TAB SDK. The SDK incorporates an API specifically for rapid development of iOS applications designed to use the barcode scanning, card reading, Bluetooth, and RFID capability of the Infinea TAB. For details on using the Infinea TAB SDK, please refer to the SDK’s documentation. -
Page 21: Secured Device Information
This will require the unit to be sent back to Infinite Peripherals for servicing. To prevent down time caused by the magnetic read head security feature becoming disabled follow the recommendations below: Do not allow the Infinea TAB battery to fully discharge. -
Page 22: Troubleshooting Card Reading
TROUBLESHOOTING CARD READING EADING If you are having problems with reading card magnetic strip refer to the table below for possible causes. Item Problem Possible Cause * Infinea TAB not turned On. * Card inserted incorrectly. * Swipe method incorrect. No card data returned during * Faulty read head. -
Page 23: Troubleshooting Scanning
TROUBLESHOOTING SCANNING ARCODE CANNING If you are having problems scanning barcodes refer to the table below for possible causes. Item Problem Possible Cause * Infinea TAB battery is too low. Scanner does not turn On. * Infinea TAB not turned on by software. * Faulty scan engine. -
Page 24: Troubleshooting Rfid
TROUBLESHOOTING RFID RFID R EADING RITING If you are having problems reading or writing RFID Tags/Cards refer to the table below for possible causes. Item Problem Possible Cause * INFINEA TAB battery is too low. RFID does not turn On. * INFINEA TAB not turned on by software. -
Page 25: Dimensions
DIMENSIONS Figure 13 "#! USER MANUAL... -
Page 26: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. - Page 27 instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. "%! USER MANUAL...
