Skeleton Rock Buckets
AP-SRB1566, AP-SRB1572, & AP-SRB1578
37855
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Kubota dealer.
380-101MK
Operator's Manual
Printed 11/11/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-SRB1566 and is the answer not in the manual?

Questions and answers

Related Manuals for Kubota AP-SRB1566

Summary of Contents for Kubota AP-SRB1566

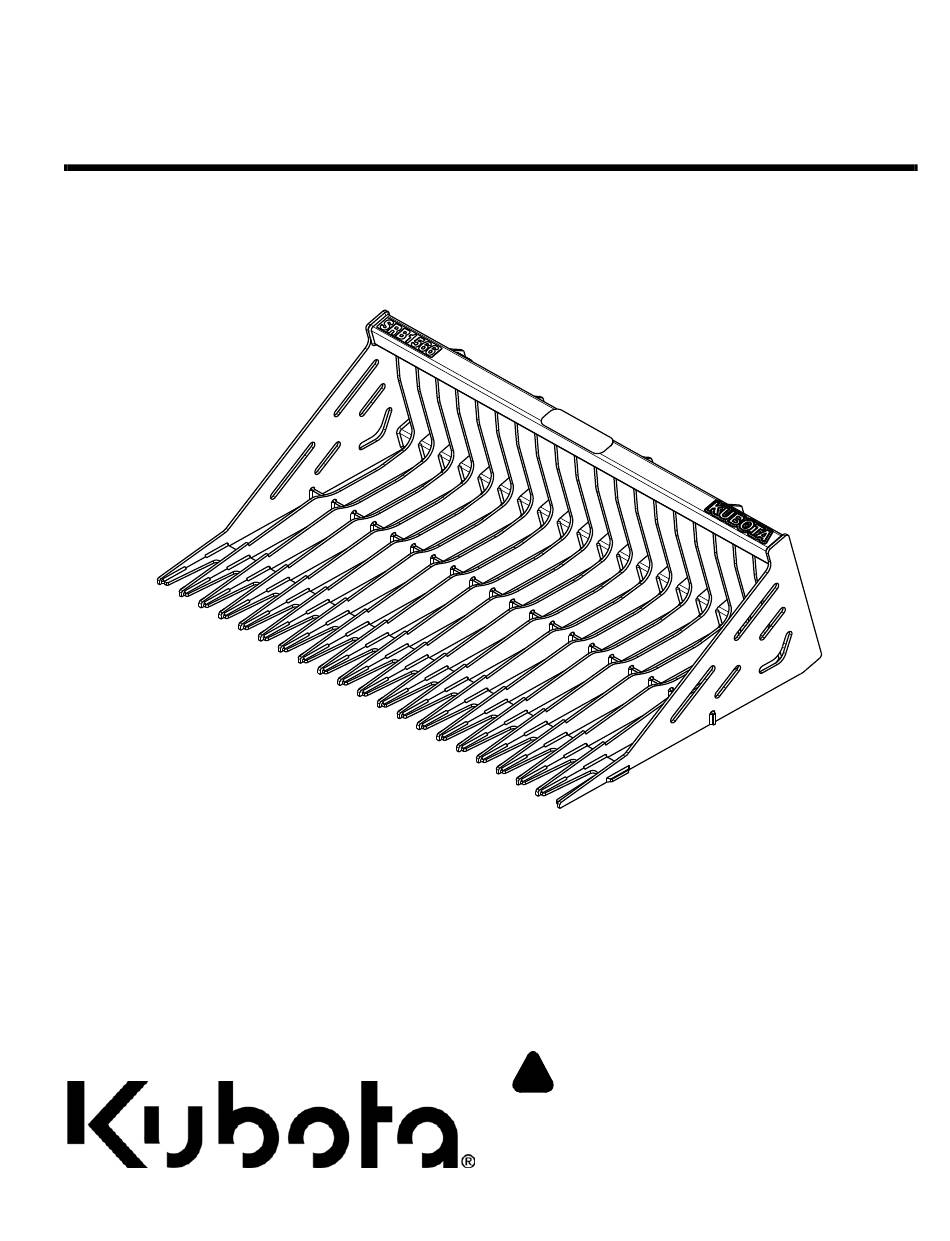

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Kubota dealer. Printed 11/11/19...

  • Page 2: Machine Identification

    Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...
  • Page 3 Copyright 2019 All rights Reserved Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right to revise and improve its products as it sees fit.
  • Page 4 Download the appropriate App on your Parts Manual QR Locator on smart phone, open the App, point your this page for detailed phone on the QR code and take a picture. instructions. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...

  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.

  • Page 6: Transport Safely

    Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Dig Safe - Avoid Transport Safely  Engage park brake when stopped on an incline. Underground Utilities  Comply with federal, state, and ...

  • Page 7: Wear Personal Protective Equipment (Ppe)

    Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Prepare for Emergencies Wear Personal Protective Avoid High Equipment (PPE) Pressure Fluids Hazard  Be prepared if a fire starts. ...
  • Page 8 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 11/11/19...

  • Page 10: Safety Labels

    Peel backing from label and press label firmly onto the all damaged or missing labels. Order new labels from your surface. nearest Kubota dealer. To find your nearest dealer, visit d. Squeeze out air bubbles with edge of a credit card or our dealer locator at www.landpride.com.

  • Page 11: Using This Manual

    Introduction Introduction The parts on your bucket have been specially designed Kubota welcomes you to the growing family of new product owners. The Rock Buckets have been designed by Kubota/Land Pride and should only be replaced with with care and built by skilled workers using quality genuine Kubota parts.

  • Page 12: Torque Requirements

    Make sure all major components and Assembly loose parts are shipped with the machine. & Set-up Make sure all safety labels are correctly Page 6 located and legible. Replace if damaged. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...

  • Page 13: Equipment Clearances

    Make sure lock pins are fully inserted into the bottom slots. 13. Shut power machine down before dismounting. Refer to “Power Machine Shutdown Procedure” on page 11. 11/11/19 AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK...

  • Page 14: Operating Checklist

    Drive at a slower speed to compensate for blind spots. • Consult your power machine’s manual for operating capacity, lifting capacity, and operating specifications. Exceeding rated capacities and specifications can result in a roll-over or other serious hazard. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...
  • Page 15 Do not use attachment to lift, carry, push or tow other equipment or objects. It is not properly designed or guarded for this use. The operator could lose control resulting in equipment damage and/or tipping hazard. 11/11/19 AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK...

  • Page 16: Transport Safety

    3. Check for overhead obstructions. 5. Stop moving forward when the load is positioned 4. Center the bucket on the material to be picked up. over its dump location. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...
  • Page 17 It isn’t going to take 11. Lower the bucket to transporting height (low to the you long to learn how to use your new Kubota bucket, but ground) before moving again. we do recommend that you take a little time to practice...

  • Page 18: Section 3: Maintenance & Lubrication

    Always shut power machine down following the “Shutdown Replace illegible or missing safety labels by obtaining Procedure” provided in this manual before leaving the new labels from your Kubota dealer. Refer to “Safety operator’s seat. Labels” on page 6 for installation instructions.

  • Page 19: Section 4: Specifications & Capacities

    21 1/2" (54.6 cm) SRB1566 = 66 3/4" (1.70 m) SRB1572 = 72 3/4" (1.85 m) 45 1/4" (1.15 m) SRB1578 = 78 3/4" (2.00 m) SRB15 Series Rock Buckets 37859 11/11/19 AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK...

  • Page 20: Section 5: Features & Benefits

    Grade 80 teeth material More than double the strength of mild steel. Front gusseted tines Strengthens tine tips. Open bottom and back Allows dirt to fall through tines. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...

  • Page 21: Section 6: Troubleshooting

    Never run the bucket teeth under ground to below ground such as tree roots and rocks. get under a load. Do not wedge objects between the bucket Wedging objects between the bucket teeth. teeth. 11/11/19 AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK...

  • Page 22: Section 7: Torque Values Chart

    = nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK 11/11/19...
  • Page 23 IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service. Model Number ____________________ Serial Number ____________________ 11/11/19 AP-SRB1566, AP-SRB1572, & AP-SRB1578 Skeleton Rock Buckets 380-101MK...
  • Page 24 Kubota used reasonable efforts to set forth and include accurate and up to date information in this publication. Kubota disclaims all representations and warranties, whether express or implied, including, but not limited to, warranties of merchantability...
  • Page 26 31700 W. 207th ST., Edgerton, KS 66021 Telephone: (913) 215-5915 Central Division: 14855 FAA Blvd., Fort Worth, TX 76155 Telephone: (817) 571-0900 Northern Division: 6300 at One Kubota Way, Groveport, OH 43125 Telephone: (614) 835-1100 Southeast Division: 1025 Northbrook Parkway, Suwanee, GA 30024 Telephone: (770) 995-8855...
