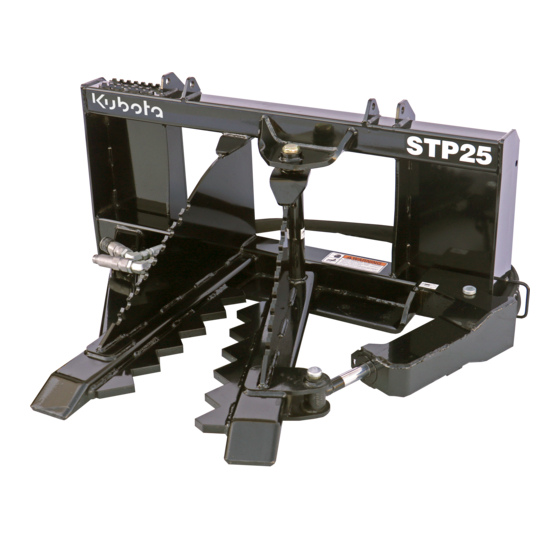

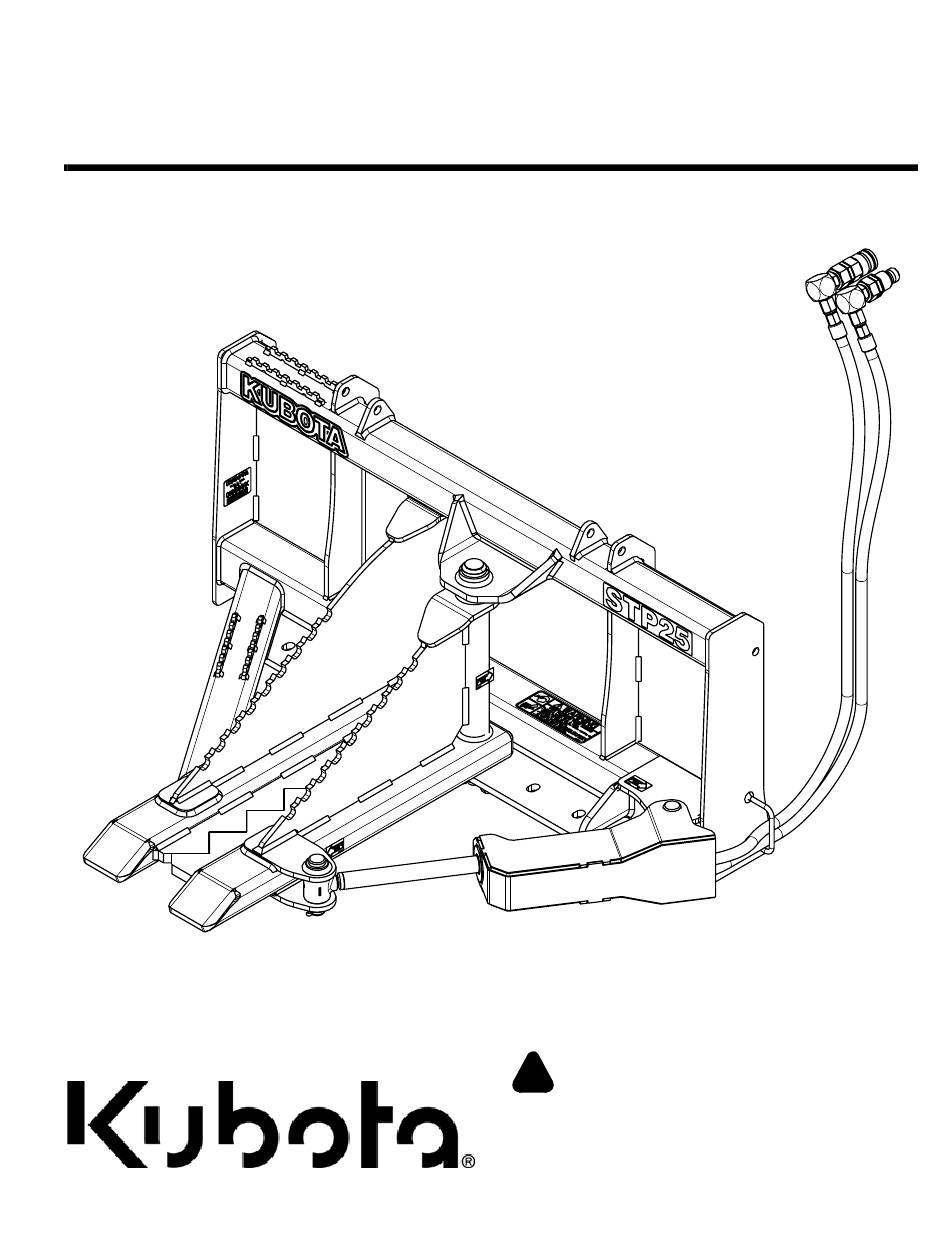

Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Kubota dealer.
39817
328-230MK
Operator's Manual
Printed 4/10/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kubota AP-STP25
Summary of Contents for Kubota AP-STP25
- Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Kubota dealer. Printed 4/10/19...
-
Page 2: Machine Identification
Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov AP-STP25 Tree/Post Puller 328-230MK 4/10/19... - Page 3 Copyright 2019 All rights Reserved Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right to revise and improve its products as it sees fit.
- Page 4 Parts Manual for this equipment. for Kubota products. Refer to Download the appropriate App on your Parts Manual QR Locator on smart phone, open the App, point your this page for detailed phone on the QR code and take a picture.
-
Page 5: Safety At All Times
Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident. - Page 6 Lower attachment to the ground and Replace parts on this attachment above recommended pressures follow all shutdown procedures with genuine Kubota parts only. Do shown in the Operator’s Manual. before leaving the operator’s seat to not alter this attachment in a way ...
- Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery Kubota recommends the use of a CAB or roll-over-protective- Slow moving tractors, skid steers, Never carry riders on skid steer structures (ROPS) and seat belt and self-propelled machines can or attachment.
-
Page 8: Important Safety Information
Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Be aware of and follow OSHA If possible, change into disposable Avoid crystalline Silica or washable work clothes at the (or other local, State, or Federal) (quartz) Dust guidelines for exposure to airborne... - Page 9 Important Safety Information This page left blank intentionally. 4/10/19...
-
Page 10: Safety Labels
Order new labels from your Spray soapy water onto the cleaned area. nearest Kubota dealer. To find your nearest dealer, visit Peel backing from label and press label firmly onto the our dealer locator at www.landpride.com. -
Page 11: Using This Manual
The information contained within this manual was current at the time of printing. Some parts may change Your Kubota dealer wants you to be satisfied with your slightly to assure you of the best performance. new attachment. After having carefully read these •... - Page 12 6. Slowly raise loader arms up until the skid steer hitch plate is seated under the top angle bar. Rotate top of skid steer tilt arms back until skid steer hitch plate makes full contact with puller’s hitch plate. AP-STP25 Tree/Post Puller 328-230MK 4/10/19...
-
Page 13: Purge Hydraulic System
Hose Stay Kit Purge Hydraulic System Figure 1-2 Figure 1-3 NOTE: If attaching to a Kubota skid steer, route Purge Hydraulic System hydraulic hoses through Kubota’s SVL or SSV Hose Refer to Figure 1-3: Stay as shown in Figure 1-2. Purchase SVL Hose... -
Page 14: Equipment Clearances
Tree/Post Puller. Stop movement if hydraulic hoses are starting to stretch, kink, pinch, or become entangled. 5. Raise puller fully up and repeat step 4. 6. Lower puller to about 12" off the ground. AP-STP25 Tree/Post Puller 328-230MK 4/10/19... - Page 15 5. If included, raise seat bar and move controls until both lock. 6. Wait for all components to come to a complete stop before leaving the operator’s seat. Use steps, grab-handles and anti-slip surfaces when stepping on and off the skid steer or attachment. 4/10/19 AP-STP25 Tree/Post Puller 328-230MK...
-
Page 16: Operating Safety
Do not use attachment as a lifting device for people or as a result in equipment damage or a roll over that can cause work platform. It is not properly designed or guarded for injury or death. this use. AP-STP25 Tree/Post Puller 328-230MK 4/10/19... -
Page 17: Transport Safety
If implement blocks visibility of slow moving vehicle sign, relocate sign so it is visible from the back at all times. Always comply with all federal, state, and local laws. 4/10/19 AP-STP25 Tree/Post Puller 328-230MK... -
Page 18: General Operation
It small trees using this method until the jaws exceed their won’t take you long to learn how to use your new Kubota ability to hold more trees. Tree/Post Puller, but we do recommend that you take a... -
Page 19: Section 3: Optional Equipment
Push Bar Option the push bar mount pads (#7) line up with the slots on Kubota offers a push bar option for the STP25. The push the lower support plate (#6). bar helps keep branches and limbs away from the skid 3. -
Page 20: Long Term Storage
3. Repaint parts where paint is worn or scratched to actuated even when power to hydraulics is off. prevent rust. Ask your Kubota dealer for touch-up paint. Paint is available in aerosol can, quarts, and WARNING gallon sizes. -
Page 21: Lubrication Points
Clevis Pin, Cylinder Rod End 1 - Zerk Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges 39823 Hours Clevis Pin, Cylinder Base End 1 - Zerk Type of Lubrication: Multi-purpose Grease Quantity = Until grease emerges 39824 4/10/19 AP-STP25 Tree/Post Puller 328-230MK... -
Page 22: Section 5: Specifications & Capacities
Quick disconnect couplers Small flat face male & female couplers Maximum pressure rating psi (mPa) 3500 (24.1) 45 7/8" (1.17 m) 35 7/8" (91.1 cm) 43 3/4" (1.11 m) 22" (55.9 cm) 39825 48 1/4" (1.22 m) AP-STP25 Tree/Post Puller 328-230MK 4/10/19... -
Page 23: Section 6: Features And Benefits
Angled jaw tips For digging roots and loosening soil around the base of trees. Anti-slip access points Prevents slipping while entering and exiting the skid steer. Supplied with Quick Many competitors do not supply couplers. Disconnect couplers 4/10/19 AP-STP25 Tree/Post Puller 328-230MK... -
Page 24: Section 7: Troubleshooting
Wait for the soil to dry enough to support Soil is too wet to support the skid steer. the skid steer. Post does not pull Try pulling posts once ground has firmed Soil is very dry and hard. up after a rain. AP-STP25 Tree/Post Puller 328-230MK 4/10/19... -
Page 25: Section 8: Torque Values Chart
= nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. 4/10/19 AP-STP25 Tree/Post Puller 328-230MK... - Page 26 Registration is done by your dealer. IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service. Model Number ____________________ Serial Number ____________________ AP-STP25 Tree/Post Puller 328-230MK 4/10/19...
- Page 27 Kubota used reasonable efforts to set forth and include accurate and up to date information in this publication. Kubota disclaims all representations and warranties, whether express or implied, including, but not limited to, warranties of merchantability...
- Page 28 1175 S. Guild Ave., Lodi, CA 95240 Telephone: (209) 334-9910 Central Division: 14855 FAA Blvd., Fort Worth, TX 76155 Telephone: (817) 571-0900 Northern Division: 6300 at One Kubota Way, Groveport, OH 43125 Telephone: (614) 835-1100 Southeast Division: 1025 Northbrook Parkway, Suwanee, GA 30024 Telephone: (770) 995-8855...
