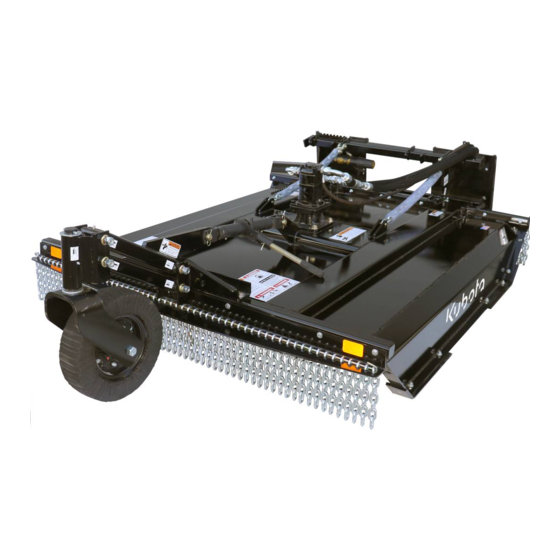

Rotary Cutter
AP-SC2560 & AP-SC2572 Skid Steer
39165
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Kubota dealer.
326-836MK
Operator's Manual
Printed 12/18/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-SC2560 and is the answer not in the manual?

Questions and answers

Related Manuals for Kubota AP-SC2560

Summary of Contents for Kubota AP-SC2560

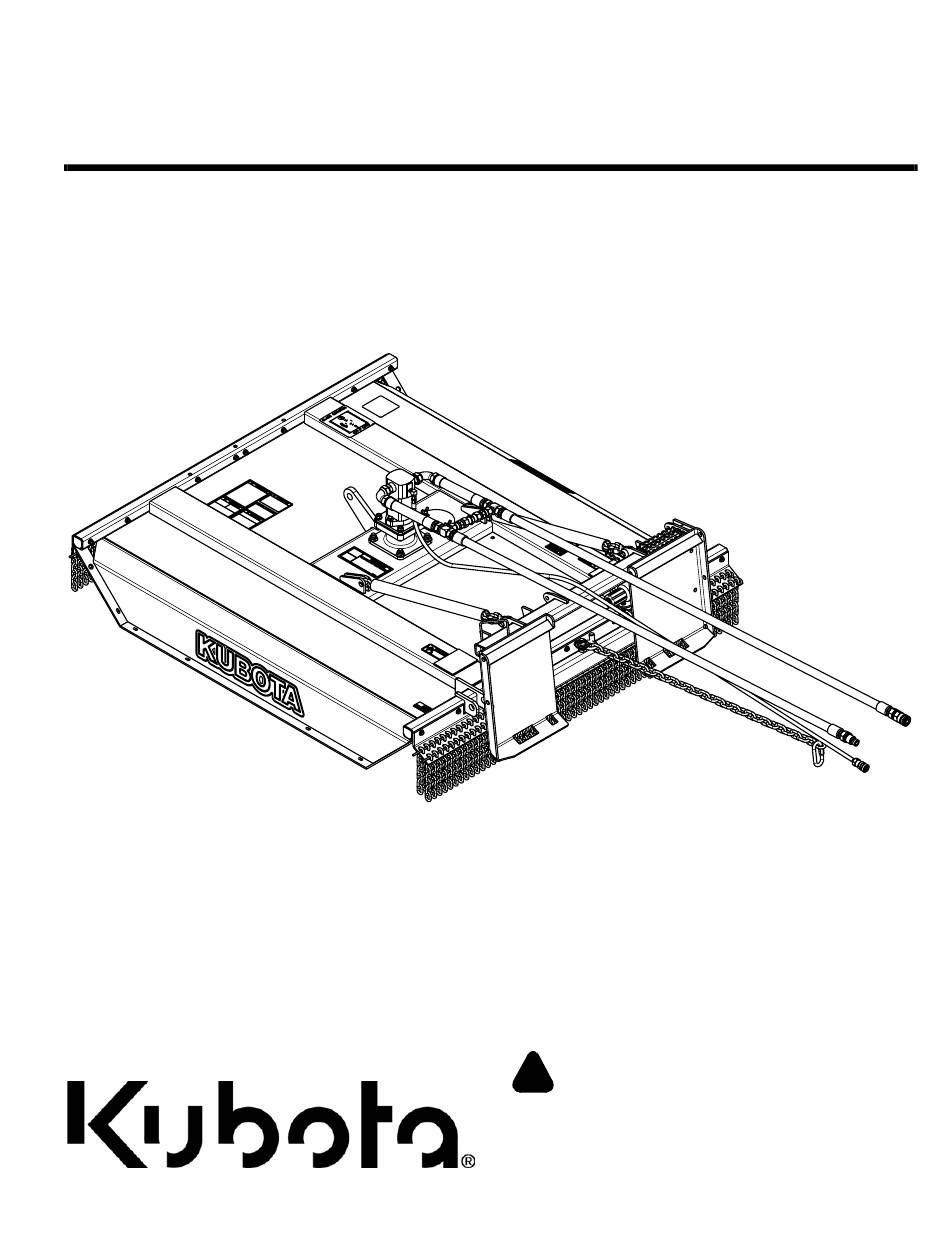

  • Page 1 Table of Contents Rotary Cutter AP-SC2560 & AP-SC2572 Skid Steer 39165 326-836MK Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
  • Page 2 Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 3: Table Of Contents

    Copyright 2019 All rights Reserved Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right to revise and improve its products as it sees fit.
  • Page 4 Download the appropriate App on your Parts Manual QR Locator on smart phone, open the App, point your this page for detailed phone on the QR code and take a picture. instructions. AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.
  • Page 6  Lower attachment to the ground and  Replace parts on this attachment above recommended pressures follow all shutdown procedures with genuine Kubota parts only. Do shown in the Operator’s Manual. before leaving the operator’s seat to not alter this attachment in a way ...
  • Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Kubota recommends the use of a CAB or roll-over-protective-  Slow moving tractors, skid steers,  Never carry riders on skid steer structures (ROPS) and seat belt and self-propelled machines can or attachment.
  • Page 8 Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 12/18/19...

  • Page 10: Safety Labels

    Peel backing from label and press label firmly onto the all damaged or missing labels. Order new labels from your surface. nearest Kubota dealer. To find your nearest dealer, visit d. Squeeze out air bubbles with edge of a credit card or our dealer locator at www.landpride.com.
  • Page 11 Table of Contents 39166 838-948C Danger: Do Not Operate 39166 818-229C Amber Reflector 39165 818-555C Danger: Rotating Blade Hazard 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...
  • Page 12 Table of Contents Important Safety Information Important Safety Information 39165 Model SC2560 39179 818-831C Warning: High Pressure Model SC2572 39166 39166 818-798C Warning: Pinch Point Hazard 3-Places AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...
  • Page 13 Table of Contents Important Safety Information 39179 818-552C Danger: Rotating Driveline (SC2572 Only) 39179 818-543C Danger: Guard Missing (SC2572 Only) 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 14: Introduction

    Some parts may change The SC2560 and SC2572 Series Skid Steer Rotary slightly to assure you of the best performance. Cutters are built and designed by Kubota for cutting on • gently sloping or slightly contoured right-of-ways, To order a new Operator’s or Parts Manual, contact...

  • Page 15: Further Assistance

    Serial Number Plate Location Figure 1 Further Assistance Your Kubota dealer wants you to be satisfied with your new attachment. If for any reason you do not understand any part of this manual or are not satisfied with the service received, the following actions are suggested:...

  • Page 16: Section 1: Assembly & Set-Up

    Loose parts bag/box shipped with the Rotary Cutter. 3. Turn off engine, and remove switch key to prevent unauthorized starting. AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 17: Float Chain Assembly

    1/2"-13 x 2" lg. GR 5 hex head bolts (#1), lock washers (#3), and 1/2"-13 hex huts (#2). Tighten nuts to the correct torque. See “Torque Values Chart for Common Bolt Sizes” on page 40. 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 18: Sc2572 Motor And Hose Assembly

    Common Bolt Sizes” on page 40. Reattach coupling guard (#11) with 5/16" spring lock washers (#8) and 5/16"-18 x 3/4" GR5 hex head cap screws (#7). Tighten nuts to correct torque. AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 19: Hitch Hook-Up

    Section 1: Assembly & Set-up Blade Bolt Access Hole If connecting hoses to a Kubota SVL, be sure to route hydraulic hoses through hose loop mounted on top of the hitch plate on the left side and Kubota’s Hose Stay Kit.

  • Page 20: Gauge Wheel Assembly (Optional)

    (#1) and 1 1/2" I.D. secure. Do not remove punch at this time. machine washer (#10). Secure gauge wheel with 3/8" x 2 1/2" lg. roll pin (#13). AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 21: Skid Shoe Assembly (Optional)

    (#2), flat washers (#5), -16X1 1/4" GR5 lock washers (#4), and 3/8" locknuts (#3). Torque locknuts (#3) to 31 ft. lbs. 4. Raise cutter up and remove support blocks 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 22: Motor Pressure Gauge Assembly (Optional)

    5. Attach 3/4" x 10 15/16" hose (#3) to the adapter fitting connected to the motor (#1) and to the male end of tee fitting (#4) AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 23: Section 2: Adjustments

    (B1) with chain pins (#5). 6. Insert cotter pins (#2) through chain pin holes and bend one or both legs of each cotter pin to secure them in place. 37928 Hitch Offset Figure 2-1 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 24: Height Adjustment Safety Chain

    37386 NOTE: Two people may be required to install and adjust the safety chain. Kubota CTL or Skid Steer Loader Machine (CTL Shown) Figure 2-3 Raise cutter’s rear skid shoes slightly less than 3. Raise cutter up until the safety chain is tight. Check 16 1/2"...

  • Page 25: Optional Gauge Wheel

    Skid Shoe the front deck corner. front leading cutting blade to at the front deck corner to ground level. ground level. 39173 Nominal Cutting Height Figure 2-4 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 26: Optional Gauge Wheel

    Skid Shoe the front deck corner. cutting blade to ground level. at the front deck corner to ground level. Nominal Cutting Height Figure 2-5 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 27: Section 3: Operating Procedures

    To avoid serious injury or death: readjusting to maintain correct deck positioning. • Do not become entangled in hydraulic hoses while entering or exiting the skid steer operator station. 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 28: Transporting

    This cutter was designed to cut grass and medium swinging the deck side to side. brush cutting on gently sloping or slightly contoured right-of-ways, pastures, set aside acres, and row crop fields. AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...
  • Page 29 Never swing deck side to side without first raising the deck off the ground and high enough to clear all obstacles. Deck not open Deck not open Cutting Operation Figure 3-3 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 30: General Operating Instructions

    Cordura been supplied with the skid steer unit. Kubota does offer sleeves to contain potential leaks. Connect the height a protective door with the SC2560 and SC2572 if one is limiting safety chain to the chassis attaching point and not provided by your skid steer supplier.
  • Page 31 With a little practice we are confident you will soon achieve safe and excellent results with your new Kubota SC2560 or SC2572 skid steer Rotary Cutter. If attachment is to be operated in reverse, make sure visibility to the rear of the power unit is appropriate for the attachment.

  • Page 32: Section 4: Optional Equipment

    Motor and Hose Assembly Figure 4-3 If your cutter’s motor and hose assembly is not compatible with your skid steer, you should replace it with one of the following assemblies: AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 33: Motor Pressure Gauge

    Kubota offers an optional Motor Pressure Gauge Bundle that allows for the operator to ensure that the motor is operating at optimal psi. Optimal operating psi should be between 2200-2800 psi. 39205 Motor Pressure Gauge Figure 4-4 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 34: Section 5: Maintenance & Lubrication

    The parts on your cutter have been specially designed injury must treat the injury within a few hours or gangrene and should only be replaced with genuine Kubota parts. may result. DO NOT DELAY. Do not alter the cutter in a way which will adversely affect One of the most important things you can do to prevent its performance.
  • Page 35 Blade rotation is clockwise with cutting edge leading. Airfoil (lift) must be oriented towards the top of the deck. 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 36: Skid Shoe Maintenance

    Always replace skid shoes at the first sign of wearing thin. Skid shoes should be inspected at the beginning of each cutting season and replaced when material thickness is less than 1/8" at any point. Order only genuine Kubota parts from your local Kubota dealer. Replace skid shoes as follows: Raise the Rotary Cutter 3"...

  • Page 37: Long-Term Storage

    Ensure that the main frame is stable. Use auxiliary supports or posts if necessary to prevent the possibility of the unit tipping over. Store hitch in the upright position. 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 38: Lubrication Points

    Gauge Wheel Spindle 1- Zerk Type of Lubrication: Multi-purpose Grease Quantity = As required 24549 Hours Axle Hub Bearing 1- Zerk Type of Lubrication: Multi-purpose Grease Quantity = As required 24549 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 39: Motor Spindle Hub (Sc2560 Only)

    Quantity = Fill until oil reaches top mark on dipstick or begins to flow out side plug hole in gearbox. 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 40: Section 6: Specifications & Capacities

    Single row chain guard. Rear deck protection Double row chain guard. Deck lift height protection Safe chain limiter. Cutting height gauging (Optional) Pivoting and adjustable front mounted gauge wheel with laminated tire. AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...
  • Page 41 SC2560 = 79 3/4" (2.03 m) SC2572 = 92 1/4" (2.34 m) SC2560 = 110 1/4" (2.80 m) SC2572 = 121 3/4" (3.09 m) 25 1/4" (64.1 cm) MIN CUTTING HEIGHT 39178 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 42: Section 7: Features & Benefits

    Allows the operator to ensure that the motor is operating at proper psi. Provides additional operator protection from flying objects by allowing the Rotary Lift limit safety chain Cutter to only be lifted up to 18". AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...

  • Page 43: Section 8: Troubleshooting

    Blade carrier bent. Replace blade carrier. Do not tilt the hitch plate too far forward. Hitch lugs failing Tilting hitch plate too far forward. Do not put down pressure on hitch plate 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 44: Section 9: Torque Values Chart

    Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Additional Torque Values Wheel Hub Stub 1/2"-20x1 5/8Gr 5 85 ft-lbs. Blade Bolt Locknut 450 ft-lbs Blade Carrier Hub Nut 450 ft-lbs AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...
  • Page 45 Table of Contents Section 9: Torque Values Chart This page left blank intentionally 12/18/19 AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK...

  • Page 46: Section 10: Warranty & Legal Disclaimer

    IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service. Model Number ____________________ Serial Number ____________________ AP-SC2560 & AP-SC2572 Skid Steer Rotary Cutter 326-836MK 12/18/19...
  • Page 47 Kubota used reasonable efforts to set forth and include accurate and up to date information in this publication. Kubota disclaims all representations and warranties, whether express or implied, including, but not limited to, warranties of merchantability...
  • Page 48 31700 W. 207th ST., Edgerton, KS 66021 Telephone: (913) 215-5915 Central Division: 14855 FAA Blvd., Fort Worth, TX 76155 Telephone: (817) 571-0900 Northern Division: 6300 at One Kubota Way, Groveport, OH 43125 Telephone: (614) 835-1100 Southeast Division: 1025 Northbrook Parkway, Suwanee, GA 30024 Telephone: (770) 995-8855...
