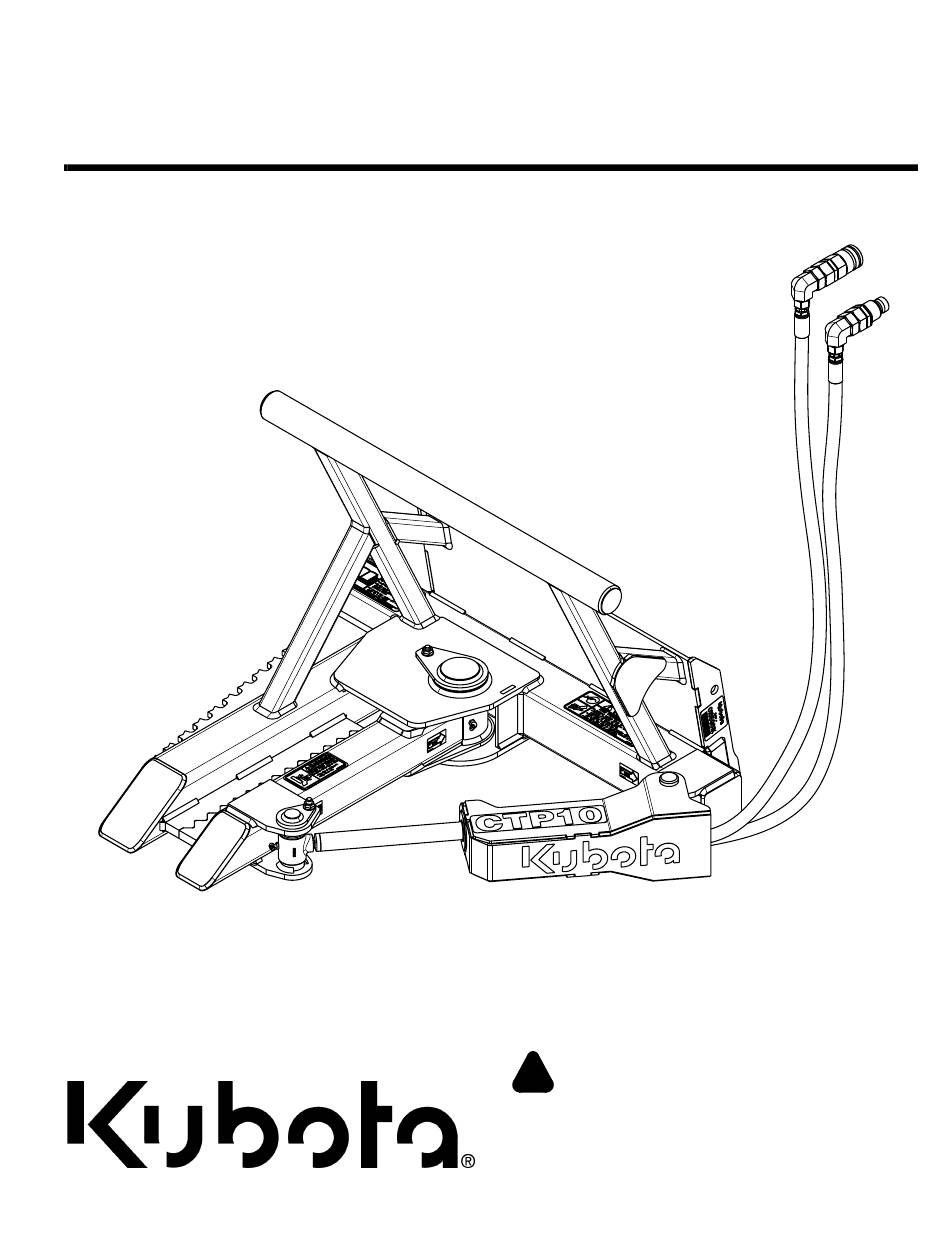

Kubota AP-CTP10 Operator's Manual
Kubota AP-CTP10 Operator's Manual

Kubota AP-CTP10 Operator's Manual

Compact tree/post puller

Advertisement

Quick Links

Compact Tree/Post Puller
AP-CTP10
83125
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Kubota dealer.
328-242MK
Operator's Manual
Printed 1/8/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-CTP10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kubota AP-CTP10

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Kubota dealer. Printed 1/8/25...
  • Page 2: Machine Identification

    Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Dealer Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 3 Copyright 2025 All rights Reserved Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right to revise and improve its products as it sees fit.
  • Page 4 Parts Manual for this link you to available dealers equipment. Download the appropriate for Kubota products. Refer to App on your smart phone. Scan the QR Parts Manual QR Locator on code and take a picture.
  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol The SAFETY ALERT SYMBOL indicates there is a potential hazard Careful operation is your best to personal safety and extra precaution must be taken.
  • Page 6  Lower attachment to the ground and  Replace parts on the stand-on the machine. follow all shutdown procedures compact loader with genuine Kubota  Riders can be struck by objects before leaving the operator platform parts only. Do not alter this machine or thrown from the machine.
  • Page 7 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Prepare for Emergencies Wear Personal Protective Avoid High Pressure Equipment (PPE) Fluids  Be prepared if a fire starts. ...
  • Page 8 Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual.  Be aware of and follow OSHA  If possible, change into disposable Avoid Crystalline Silica (or other local, State, or Federal) or washable work clothes at the (Quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 1/8/25...
  • Page 10: Safety Labels

    Peel backing from label and press label firmly onto the all damaged or missing labels. Order new labels from your surface. nearest Kubota dealer. To find your nearest dealer, visit Squeeze out air bubbles with edge of a credit card or a our dealer locator at www.landpride.com.
  • Page 11 Table of Contents Important Safety Information 83125 70245 838-094C Warning: High Pressure Fluid Hazard 1 Place: As Shown 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 12: Using This Manual

    Further Assistance • The information contained within this manual was Your Kubota dealer wants you to be satisfied with your current at the time of printing. Some parts may change new attachment. If for any reason you do not understand slightly to assure you of the best performance.
  • Page 13: Before You Start

    1-2 minutes before shutting engine off. This helps cool the engine before shutting off. In the case of an emergency you can shut the engine off immediately by turning the power switch to the off position. 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 14 Ensure bottom of loader hitch plate (#3) is seated replace any part that is excessively worn, bent, against puller’s hitch plate (#6). broken, or missing. c. Ensure lock pins (#1) are fully inserted through bottom slots (#5) and are fully down. AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 15: Connect Hydraulic Hoses

    If needed, add cable ties to secure and protect them from possible damage. 5. If puller hydraulic cylinder operated erratically, purge hydraulic system according to “Purge Hydraulic System” on page 12. 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 16: Purge Hydraulic System

    Fully close jaw, fully raise loader arms then repeat platform and start compact utility loader. steps 5-6. 5. Raise puller slightly off support blocks and slowly retract the cylinder rod (#11) until trapped air is purged out at port “A” . AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 17 Wear gloves when working with hydraulic components including while connecting and disconnecting couplers. It is best to allow hydraulic components to cool before touching them. 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 18: Operating Checklist

    Replace damaged rock back when the tree suddenly breaks loose from the and worn hoses with genuine Kubota parts. ground or if the jaws slip instantaneously on the tree or post. Read and follow assembly & connecting instructions.
  • Page 19: Transport Safety

    Always comply with all federal, produce dust containing crystalline silica. Trenching, state, and local laws. sawing, and boring of material containing crystalline silica can produce dust containing crystalline silica. 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 20: General Operation

    It won’t take you long to learn how to use your new the pincher arm can be used to break loose roots by Kubota Tree/Post Puller, but we do recommend that you moving forward and backward with teeth against the take a little time to practice securely attaching and roots.
  • Page 21 Table of Contents Section 2: Operating Procedures This page left blank intentionally. 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 22: Long Term Storage

    3. Repaint parts where paint is worn or scratched to • Allow only persons to perform maintenance on this prevent rust. Ask your Kubota dealer for aerosol attachment who have been properly trained in the safe touch-up paint. Paint is also available in touch-up operation of this attachment.
  • Page 23: Lubrication Points

    Quantity = As required (ensure that grease is visible) 81325 Hydraulic Cylinder Pins 2 Zerks (1 on each end of cylinder) Type of Lubrication: Multi-purpose Grease Quantity = As required (ensure that grease is visible) 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 24: Section 4: Specifications & Capacities

    1 male & 1 female Hydraulic cylinder 2" x 8" x 1 1/8" rod Maximum pressure rating 3500 psi (24.1 mPa) 33 1/2" (85 cm) 83171 34 1/4" (87 cm) 24 1/2" (62 cm) 36" (91 cm) AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 25: Section 5: Features & Benefits

    For digging roots and loosening soil around the base of trees. Saw teeth on outside of pincher arm Helps break loose roots at base of trees. Supplied with Quick Disconnect Many competitors do not supply couplers. couplers 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 26: Section 6: Troubleshooting

    Soil is too wet to support the power unit. the power unit. Post does not pull Try pulling post once ground has received Soil is very dry and hard. rain and is firm enough to support the power unit. AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 27: Section 7: Torque Values Chart

    Torque tolerance + 0%, -15% of torque values. Unless otherwise specified use torque values listed above. All locknuts or lubricated fasteners: Use 75% of torque value. (i.e. 1/2"-13 GR5 = 76 ft-lb; 75% of 76 or .75 x 76 = 57 ft-lb) 1/8/25 AP-CTP10 Compact Tree/Post Puller 328-242MK...
  • Page 28 IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service. Model Number ____________________ Serial Number ____________________ AP-CTP10 Compact Tree/Post Puller 328-242MK 1/8/25...
  • Page 29 Kubota does not represent or warrant that the information in this publication is completely accurate or current; however, Kubota used reasonable efforts to set forth and include accurate and up to date information in this publication. Kubota disclaims all representations and warranties, whether express or implied, including, but not limited to, warranties of...
  • Page 30 Kubota HP: https://www.kubota.com/network/index.html...
