4600, 8400 SERIES
1-3/4"
MAX.
1/2" IPS
THREADED
CONNECTIONS
Complies with ASME A112.18.1M and CSA B125
CAUTION:
Before turning water on during either rough-in or trim-out, make sure that cartridge retainer clip is in place. The cartridge and
retainer clip were properly installed and tested before leaving the factory. Although it is unlikely, it is nevertheless possible
that through the handling of the valve by any number of persons the retainer clip may not be properly installed. This should
be carefully checked at time of rough-in and trim out. If the retainer clip is not properly installed, water pressure could force
the cartridge out of the casting. Personal injury or water damage to the premises could result.
®

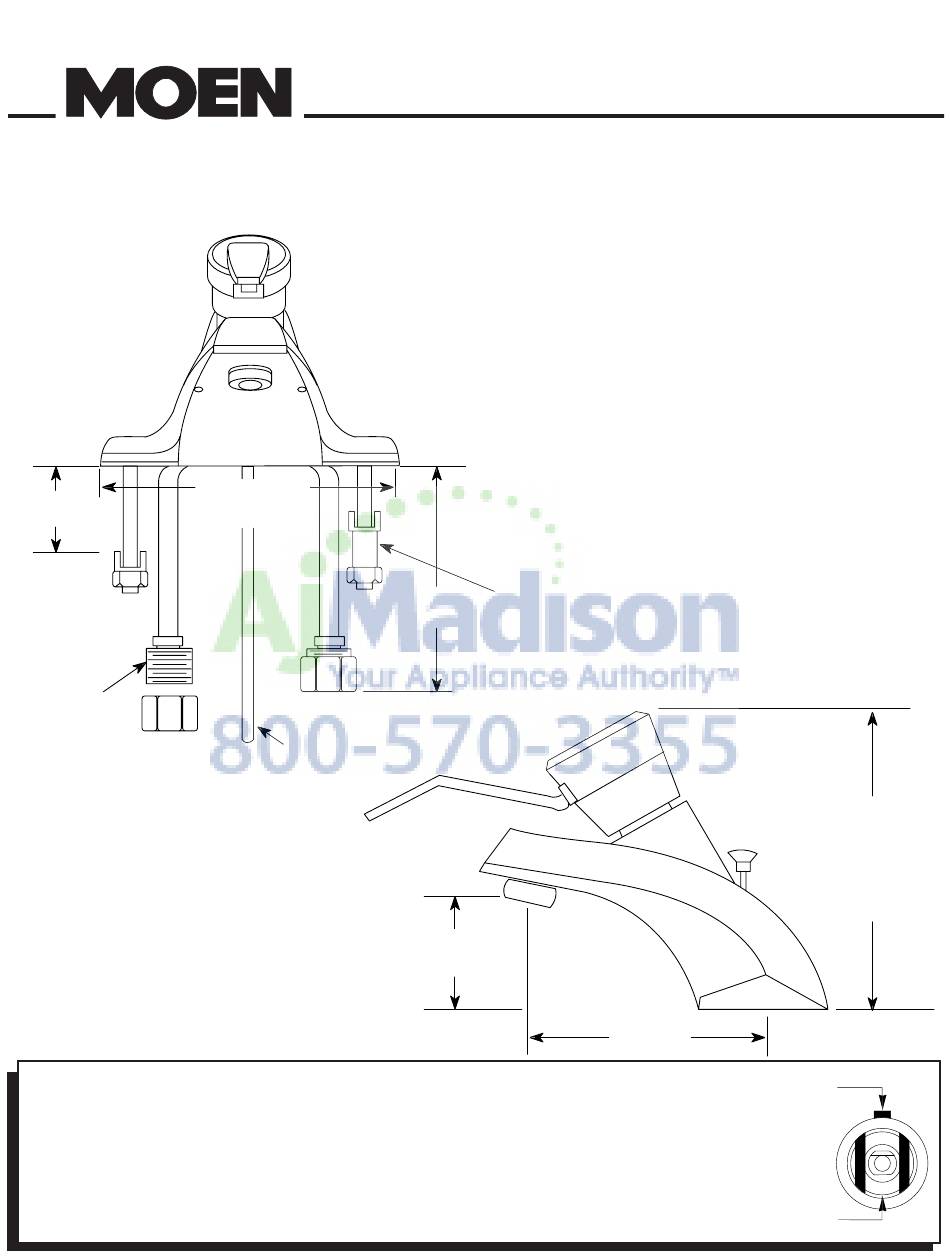

LAVATORY FAUCETS
FOUR-INCH CENTERSET
6" X 2" WIDE
LIFT ROD
POSITION
Always turn water off before disassembling the valve. Open valve handle to relieve water
pressure and to insure that complete water shut-off has been accomplished.
USE SPACER TO INSTALL
ON THINNER LAVATORY
4-3/4"
BOWLS OR COUNTERS
1-3/4"
Installation INSTRUCTIONS
MEASUREMENTS
Fits 4" centers and through a 1" minimum
diameter hole.
ALL MODELS EQUIPPED WITH A MOEN
FLOW-RATOR™.
3-5/8" CC
CLIP
EAR
MT169A
5" NOMINAL
OPEN
POSITION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moen 4600 Series
Summary of Contents for Moen 4600 Series
- Page 1 ® INSTALLATION INSTRUCTIONS LAVATORY FAUCETS FOUR-INCH CENTERSET MEASUREMENTS Fits 4" centers and through a 1" minimum diameter hole. ALL MODELS EQUIPPED WITH A MOEN FLOW-RATOR™. 6" X 2" WIDE 1-3/4" MAX. USE SPACER TO INSTALL ON THINNER LAVATORY 4-3/4"...
- Page 2 Installation Be sure lavatory or mounting surface is clean and dry. Place a bead of plumber's putty HOLD WITH around the inside lip of the gasket, position gasket on deck. Assemble clamp bars, WRENCH spacers if needed, and mounting nuts to escutcheon studs. Tilt clamp bars back as TAILPIECE shown in illustration, then place faucet supplies and studs down through the deck.
- Page 3 Slide off grooved sleeve and spacer. Using the cartridge twisting tool (furnished with new Moen cartridge) and pliers turn the cartridge back and forth between 11 and 1 o'clock, then grasp the cartridge stem and pull out the cartridge. If the cartridge is difficult to remove use a Moen cartridge puller.
- Page 4 Toronto, 905-829-3400 Rest of Canada, 1-800-465-6130 ® © Copyright, 1995 Moen Incorporated 25300 Al Moen Drive, North Olmsted, OH 44070-8022, U.S.A. Moen Incorporated In Canada: Moen Inc. 2816 Bristol Circle, Oakville, Ontario L6H5S7 Printed in U.S.A. MT169A SEP 95...
Need help?
Do you have a question about the 4600 Series and is the answer not in the manual?
Questions and answers
On the 4600 Moen single handle lavatory faucet, what side of the gasket is set on the sink surface - the smooth surface or the surface with more of the ribbing? I **** assuming it is the smooth surface but it is not spelled out in the instructions. Thanks
The document does not specify whether the smooth or ribbed side of the gasket should be placed on the sink surface. However, it does mention placing a bead of plumber's putty around the inside lip of the gasket before positioning it on the deck.
This answer is automatically generated
