5 Set-up process and troubleshooting

5.1 Pre-requisites

It is necessary to have an ASCII IP client or ASCII Serial master operative and well connected to the corresponding
ASCII port of Intesis as well as the KNX devices connected to their corresponding ports as well.
Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied
by HMS Industrial Networks SLU for this standard integration.
Items supplied by HMS Networks for this integration are:
•
Intesis gateway.
•
Mini-USB cable to connect to PC
•
Link to download the configuration tool.
•
Product documentation.
5.2 Intesis MAPS. Configuration & monitoring tool for Intesis ASCII series

5.2.1 Introduction

Intesis MAPS is a Windows
The installation procedure and main functions are explained in the Intesis MAPS User Manual for ASCII. This document
can be downloaded from the link indicated in the installation sheet supplied with the Intesis device or in the product
website at www.intesis.com
In this section, only the specific case of KNX to ASCII systems will be covered.
Please check the Intesis MAPS user manual for specific information about the different parameters and how to configure
them.

5.2.2 Connection

To configure the Intesis connection parameters press on the Connection button in the menu bar.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
®
compatible software developed specifically to monitor and configure Intesis ASCII series.

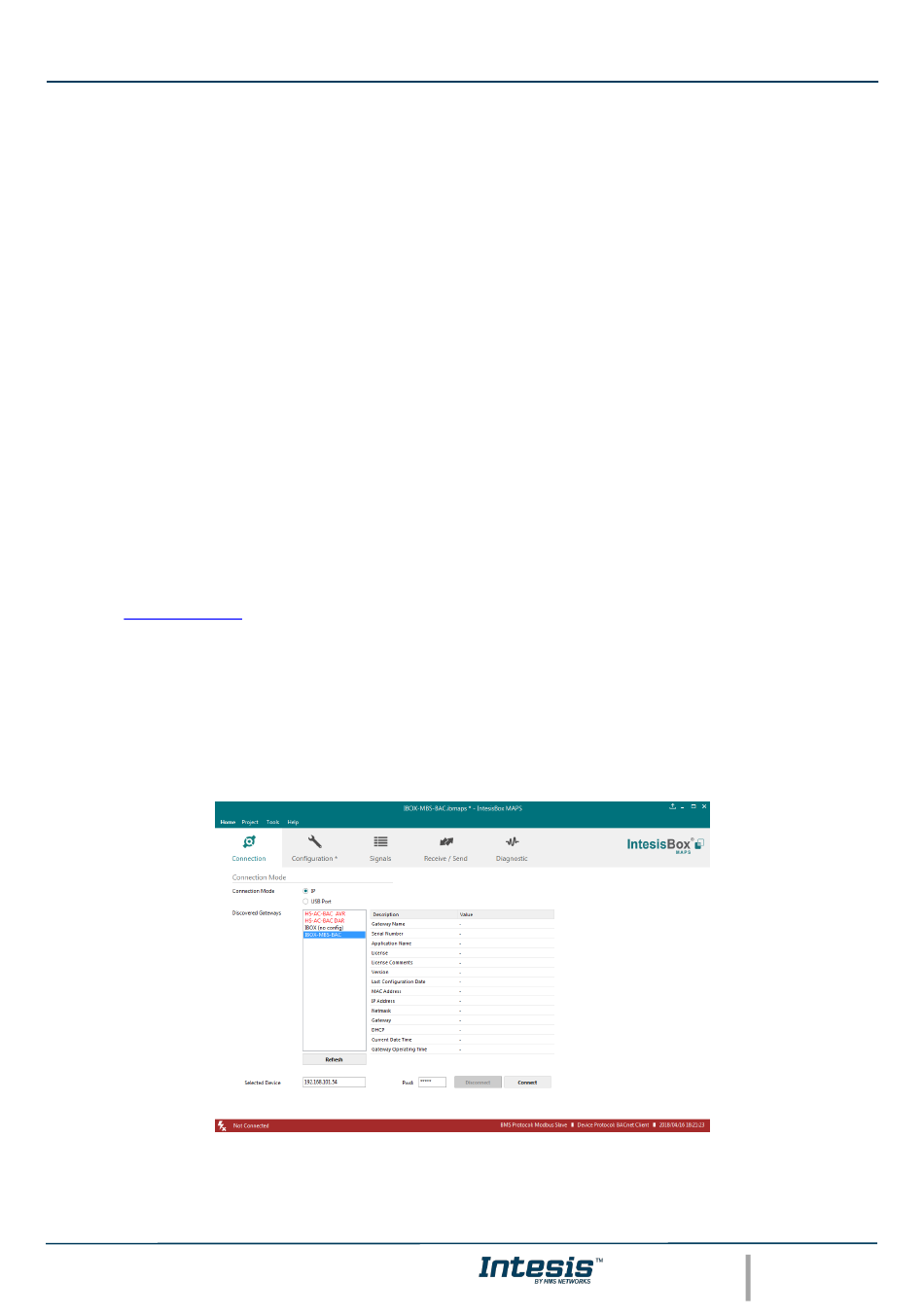

Figure 5.1 MAPS connection
