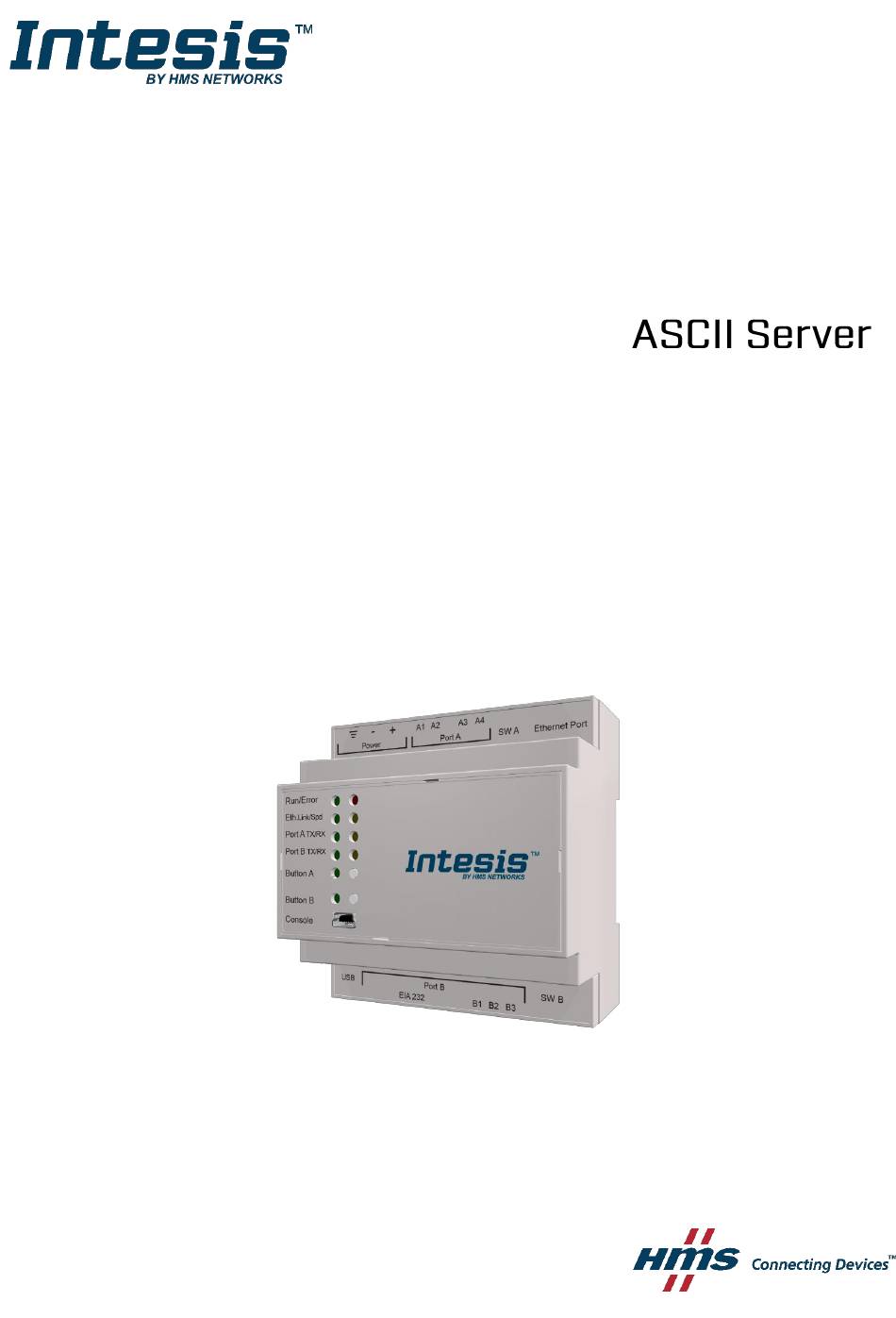

- Page 1 USER MANUAL Issue date: 04/2020 r1.4 ENGLISH...
- Page 2 ASCII Server – KNX Intesis User Manual r1.4 EN Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.
- Page 3 ASCII Server – KNX Intesis User Manual r1.4 EN Gateway for the integration of KNX installations into ASCII IP or ASCII Serial enabled monitoring and control systems. ORDER CODE LEGACY ORDER CODE INASCKNX6000000 IBASCKNX6000000 INASCKNX6000000 IBASCKNX3K00000 © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 3 / 20...
-
Page 4: Table Of Contents
ASCII Server – KNX Intesis User Manual r1.4 EN INDEX 1 Description ................................. 5 Introduction ................................. 5 Functionality ............................... 6 Gateway’s capacity ............................6 2 KNX System ................................7 Description................................7 Points definition ..............................7 3 ASCII interface ................................8 Description................................ -
Page 5: Description
ASCII Server – KNX Intesis User Manual r1.4 EN 1 Description 1.1 Introduction This document describes the integration of KNX installations into ASCII serial (EIA232 or EIA485) or ASCII IP compatible devices and systems using the Intesis ASCII Server – KNX gateway. The aim of this integration is to make accessible KNX system signals and resources from any system capable to be programmed to read and write simple text messages through EIA232 or EIA485 serial port or Ethernet TCP/IP port (for example Extron, LiteTouch systems). -
Page 6: Functionality
ASCII Server – KNX Intesis User Manual r1.4 EN 1.2 Functionality From the KNX system point of view, after the start-up process, the gateway reads the points configured to be read at the start and remains listening for changes of value of group addresses associated with internal data points. Any of these changes, when detected, are immediately updated in memory and become available to be read by the ASCII system in any moment. -
Page 7: Knx System
ASCII Server – KNX Intesis User Manual r1.4 EN 2 KNX System In this section, a common description for all Intesis KNX series gateways is given, from the point of view of KNX system which is called from now on internal system The ASCII system is also called from now on external system. 2.1 Description Intesis KNX connects directly to the KNX TP-1 (EIB) bus and behaves as one more devices into the KNX system, with the same configuration and operational characteristics as other KNX devices. -
Page 8: Ascii Interface
ASCII Server – KNX Intesis User Manual r1.4 EN 3 ASCII interface This section describes the ASCII interface of the Intesis, its configuration and functionality. 3.1 Description The gateway can be connected to any ASCII enabled device using its EIA232 interface (DB9 connector DTE), EIA485 interface or TCP/IP (Ethernet connector) and offers through this interface the possibility of supervision and control of its internal KNX addresses using simple ASCII messages. - Page 9 ASCII Server – KNX Intesis User Manual r1.4 EN Defines the current function (read, write or both) to be used from the ASCII side with this register. It can’t be configured as it is directly set when selecting the current KNX flags applying to the communication object.
-
Page 10: Ascii Messages
ASCII Server – KNX Intesis User Manual r1.4 EN 3.6 ASCII messages Communication from the ASCII side is carried out thanks to simple ASCII messages. Note that these messages can be configured from the configuration tool to match the ASCII master device. The ASCII messages used to read/write points into the gateway through this interface have the following format •... -
Page 11: Connections
ASCII Server – KNX Intesis User Manual r1.4 EN 4 Connections Find below information regarding the Intesis connections available. Power Supply Ethernet Power Supply Must use NEC Class 2 or Limited Power Source (LPS) and SELV ASCII IP rated power supply. If using DC power supply: Respect polarity applied of terminals (+) and (-). -
Page 12: Powering The Device
ASCII Server – KNX Intesis User Manual r1.4 EN 4.1 Powering the device A power supply working with any of the voltage range allowed is needed (check section 6). Once connected the RUN led (Figure above) will turn on. WARNING! In order to avoid earth loops that can damage the gateway and/or any other equipment connected to it, we strongly recommend: •... -
Page 13: Set-Up Process And Troubleshooting
ASCII port of Intesis as well as the KNX devices connected to their corresponding ports as well. Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied by HMS Industrial Networks SLU for this standard integration. Items supplied by HMS Networks for this integration are: • Intesis gateway. -
Page 14: Configuration Tab
ASCII Server – KNX Intesis User Manual r1.4 EN 5.2.3 Configuration tab Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in this window: General (Gateway general parameters), ASCII (ASCII interface configuration) and KNX (KNX TP-1 interface configuration). -
Page 15: Signals
ASCII Server – KNX Intesis User Manual r1.4 EN • Communication type: Select if ASCII communication will be through TCP/IP, serial (EIA232 or EIA485) or both. • Notification on ASCII Value: Gateway will allow sending spontaneous messages to the ASCII bus when a change of value is received in the KNX side. -
Page 16: Sending The Configuration To Intesis
ASCII Server – KNX Intesis User Manual r1.4 EN 5.2.5 Sending the configuration to Intesis When the configuration is finished, follow the next steps. 1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User Manual). - Page 17 ASCII Server – KNX Intesis User Manual r1.4 EN Figure 5.6 Diagnostic More information about the Diagnostic section can be found in the Configuraion Tool manual. © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 17 / 20...
-
Page 18: Set-Up Procedure
ASCII Server – KNX Intesis User Manual r1.4 EN 5.3 Set-up procedure 1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by the Installation wizard. 2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface (DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended). -
Page 19: Electrical & Mechanical Features
ASCII Server – KNX Intesis User Manual r1.4 EN 6 Electrical & Mechanical Features Plastic, type PC (UL 94 V-0) Size: Coin 20mm x 3.2mm Net dimensions (d h): 90x88x56 mm Enclosure Battery Capacity: 3V / 225mAh Recommended space for installation (d h): 130x100x100mm Type: Manganese Dioxide Lithium Color: Light Grey. -
Page 20: Dimensions
ASCII Server – KNX Intesis User Manual r1.4 EN 7 Dimensions 56 mm (h) 88 mm (w) 90 mm (d) Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for external connections 100 mm (h) 100 mm (w) 130 mm (d)
