Summary of Contents for Fraser HP50-ION

  • Page 1 HP50-ION...

  • Page 2: Table Of Contents

    Index Indice Index Indice Index Indice Index Indice Index Indice Index Indice Index Indi Index 1. Intended use ......................4 2. Safety instructions ....................4 3. Installation instructions ..................4 4. Installation of cables ....................4 5. Electrical connection ....................4 5.1 Power supply ......................
  • Page 3 HP50-ION Power Unit Operating Instructions Instructions/Booklet/HP50-ION Iss.1...

  • Page 4: Intended Use

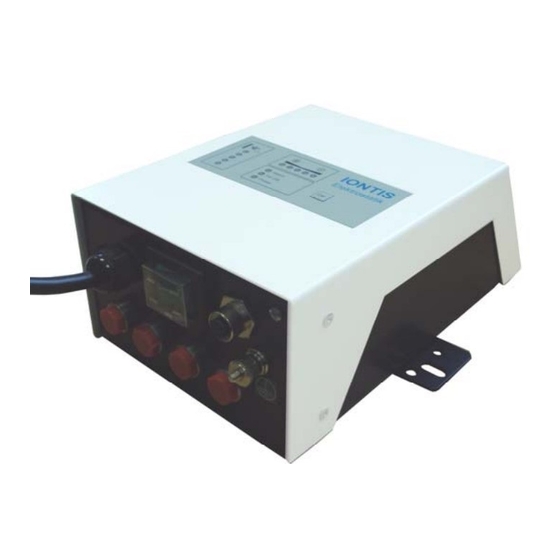

    1. Intended use The high voltage power supply unit HP50-ION serves as high voltage supplies for the Fraser Static Eliminators for at least 5,5 kVAC. A different use or interventions / changes are not permitted. 2. Safety instructions The unit can be hazardous even in intended operation.

  • Page 5: Power Supply

    1.5 x electrode length total per unit! On a more powerful supply unit with a “-F” on the name plate the total length doubles. 5.4 Interface signals Units with electrode monitoring provide the following signals on the 5-pin terminal: View onto the terminal Active outputs :+24 VDC (Input voltage), max. current 100 mA Instructions/Booklet/HP50-ION Iss.1...

  • Page 6: Operation

    If the Problem continues to appear, disconnect all electrodes from the device while it is turned off and reconnect them one at a time, until the fault can be allocated to the supply unit or an electrode and replace the faulty component. Instructions/Booklet/HP50-ION Iss.1...

  • Page 7: Specifications

    Weight: 1.9 kg Display: LEDs for 5-level monitoring of electrode pollution 5-level monitoring of material's charge Power High voltage Fault Interface: Open-Collector Output for - Operation - Contamination premonition - Contamination alert - Failure Max: 30 VDC, max. 0.1 A Instructions/Booklet/HP50-ION Iss.1...
  • Page 8 The Fraser range of Static Control equipment includes the following: La gamme Fraser d’équipements de contrôle de l’électricité statique comprend les produits suivants: Das Produktprogramm von Fraser umfasst folgende Geräte: Technische Daten der HP50 Netzteile SHORT RANGE Static Neutralisation LONG RANGE Static Neutralisation...
  • Page 9 For more information about static and a full range of our products, visit our website at: www.fraser-antistatic.co.uk Scotts Business Park, Bampton, Devon. EX16 9DN United Kingdom Tel: +44 (0) 1398 331114 Fax: +44 (0) 1398 331411 E: sales@fraser-antistatic.co.uk...
