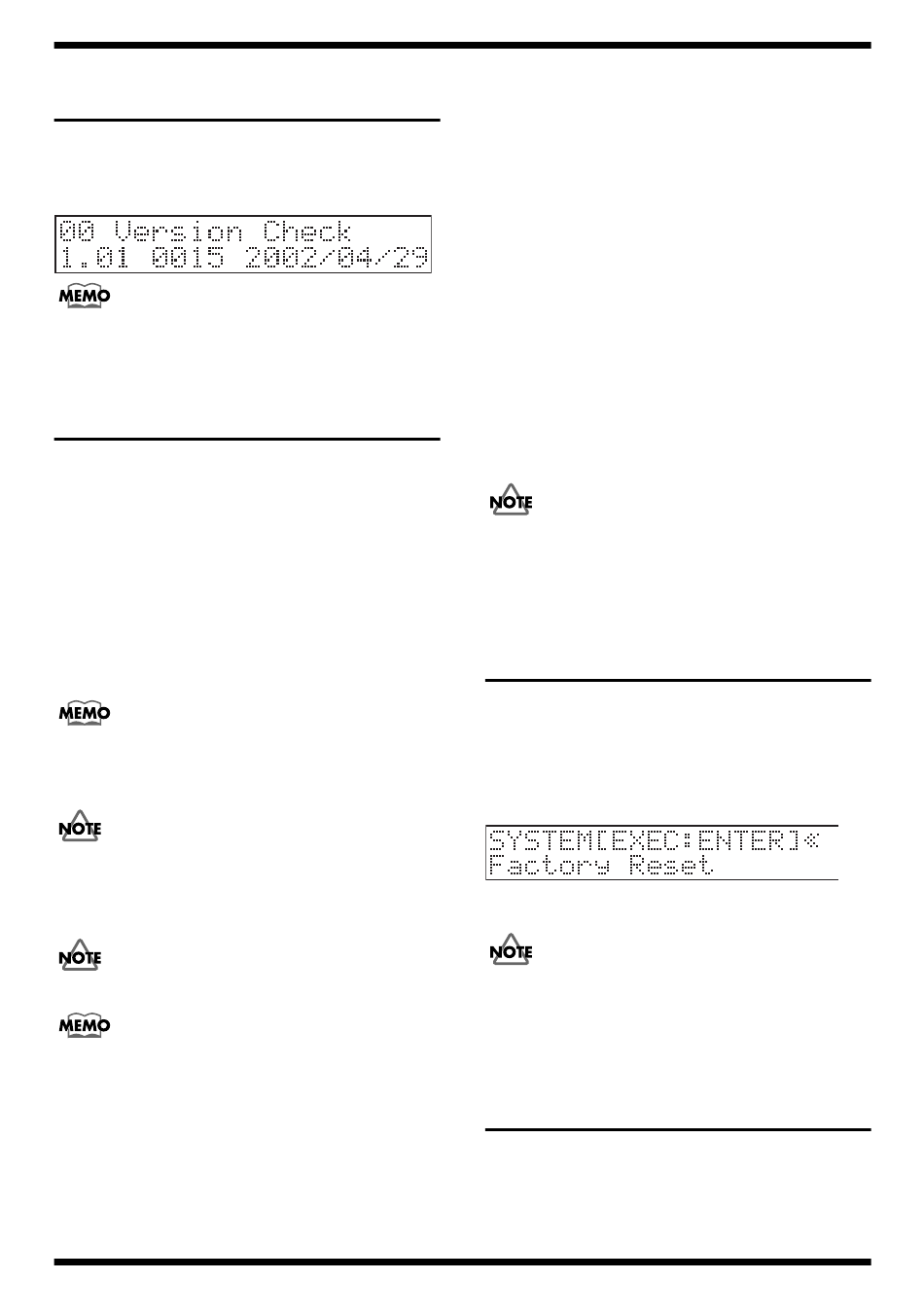

CHECKING THE VERSION
NUMBER
While holding down the [INST], [PART>] and [SHIFT] buttons, turn on the
power.
Keep holding down these buttons until the program version appears.
The version number appears at the bottom left of the screen.
fig.3-1_65
To use the machine after confirming the version number, turn the power off
and on again.
DATA SAVING AND
LOADING
Necessary items
· Computer equipped with USB terminal, application sequencer and USB cable
· MIDI sequencer (MC-80 or equivalent) and MIDI cable
Preparation for using computer
* Do not turn off the SD-80's power while opening applications on Computer.
Otherwise, computer operation becomes unstable.
Close all applications before turning off the SD-80's power.
1.
See the start-up manual of the SD-80 and install the SD-80 USB driver on
the computer to be used.
Installation is not required on a computer (OS) on which the driver has already
been Installed.
(But if you reinstall the OS, you need to reinstall the driver as well).
2.
Connect the SD-80 to the computer with the USB cable.
Do not connect any USB device other than the SD-80.
3.
Open the [Start] of Windows, [Settings], [Control panel], [Multi-media
properties] and [MIDI setting] boxes. Select EDIROL SD-80 PART A for
the MIDI output. Then, select EDIROL SD-80 PART A for the MIDI
input.
When using sequencer applications, "EDIROL SD-80 PART A" must be set to
the output and input of MIDI the respective applications.
Make sure that the SD-80 produces the sound when playing the ordinary SMF
(for example, the one attached to Windows).
4.
Close all applications and turn off the SD-80's power.
DATA SAVING
The SD-80 and the computer must be connected with the USB cable.
For applications using MIDI, MIDI IN of the sequencer and MIDI OUT 1 of the
SD-80 must be connected with the MIDI cable.
1.
Turn on the SD-80's power and set the sequencer to recording standby
mode.
2.
Press the [SYSTEM] button, then press the [PAGE>] button to display
Bulk Dump.
3.
Display the USER AREA by rotating the [VALUE] control.
4.
Start sequencer recording.
5.
Press the [ENTER] button of the SD-80. The "Transmit SysEx" message
appears on the screen of the SD-80.
6.
Stop sequencer recording when the "Transmit SysEx" message
disappears.
7.
Save the song on the sequencer in the hard disk or a floppy disk.
DATA LOADING
The SD-80 and the computer must be connected with the USB cable.
For applications using MIDI, MIDI OUT of sequencer and MIDI IN 1 of the
SD-80 must be connected with the MIDI cable.
1.
Turn on the SD-80's power.
2.
Load the song that were saved in the above procedure via the sequencer.
3.
Start replaying the song with the sequencer.
4.
The "Writing ..." message appears on the screen of the SD-80 when the
sequencer ends replaying.
5.
Data loading is completed when the "Completed" message appears.
Do not turn off the power of the SD-80 as long as the "Writing..." message is
displayed.
If the power is turned off, the board memories may be destroyed.
Note that the main board must be replaced in this case.
RESTORING FACTORY
SETTINGS
* After factory resetting, all data in the user's area is erased.
Back-up the user's area as instructed in "DATA SAVING AND LOADING"
before factory resetting.
1.
Turn on the SD-80's power.
2.
Press the [SYSTEM] button to open the SYSTEM setting screen.
3.
Press the [PAGE>] button until the [Factory Reset] screen appears.
4.
Press the [ENTER] button. Factory resetting is completed when the
"Completed" message appears.
Do not turn off the power of the SD-80 as long as the "Executing ..." message
is displayed.
If the power is turned off, the board memories may be destroyed.
Note that the main board must be replaced in this case.
SYSTEM SOFTWARE
UPDATING PROCEDURE
Updating is done by using the SMF file. Updating can be done by any of the
following two methods:
1.
By USB
2.
By MIDI
