2020P, 2025P, 2520P, and 2525P

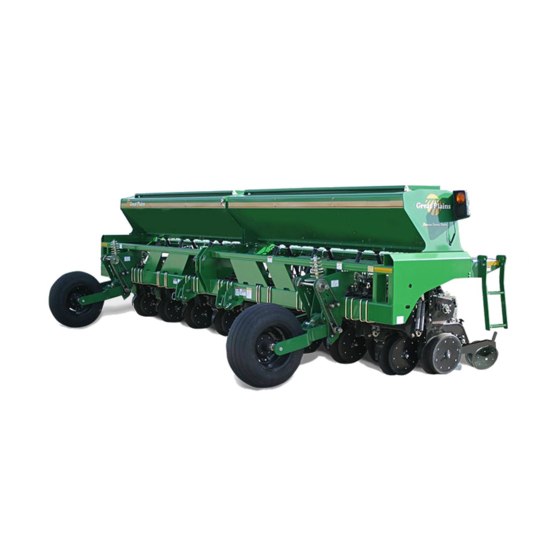

20- and 25-Foot 3-Point Precision Seeding System
Read the operator manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit or
may depict similar models where a topic is identical.
ORIGINAL INSTRUCTIONS
© Copyright 2018
Table of Contents
Index
Operator Manual
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2020-08-05
Index
2007+
22705
EN
118-231M
