7. Installation

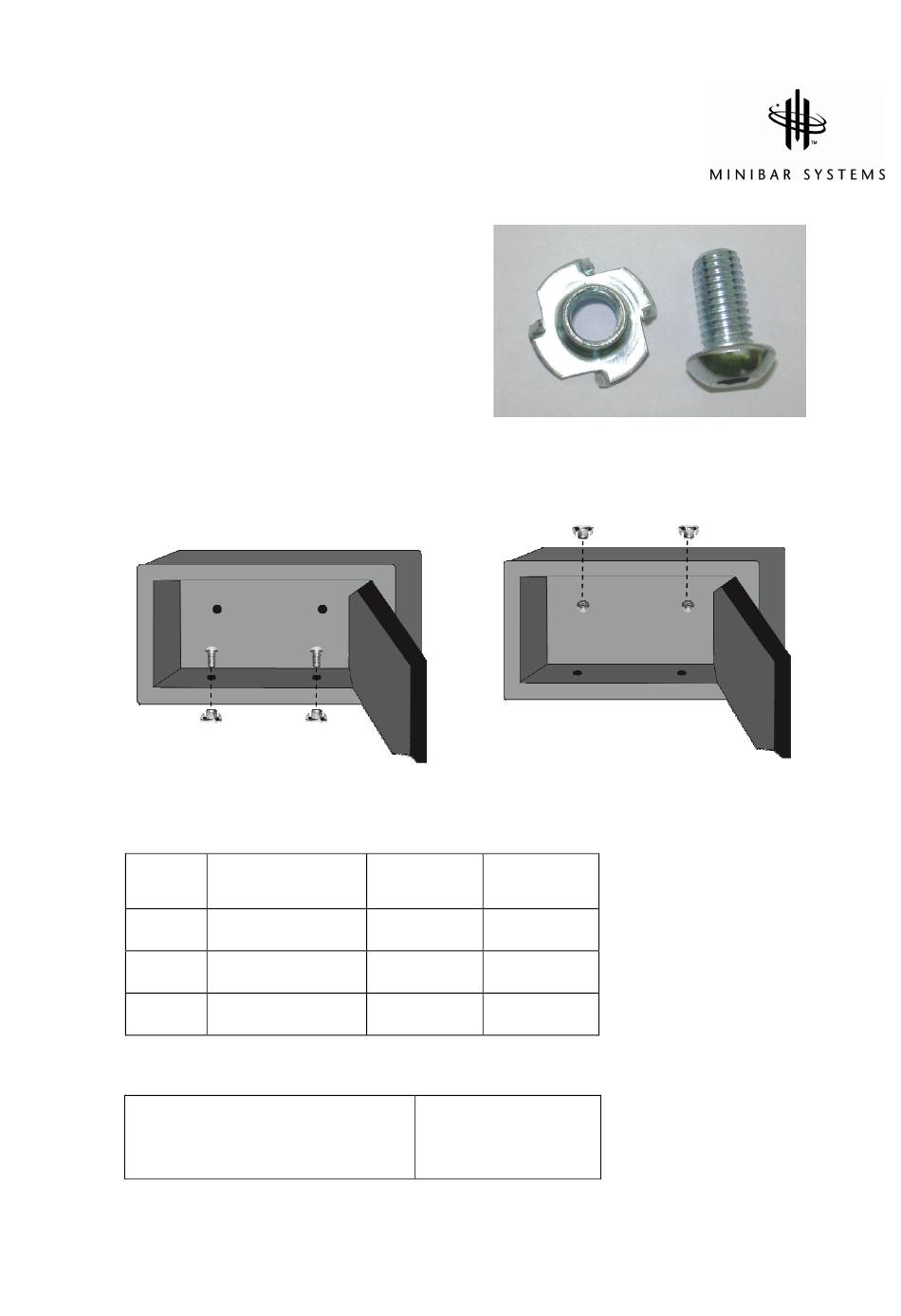

Anchoring bolts

The safe must be anchored by securing
either the back or the bottom of the safe.
You may select the expansion bolt for a
concrete wall surface or select a clamping
bolt for a wooden surface.

Securing the bottom of the safe

Safe Dimensions
Model
S
M
L
Technical Specifications
Thickness of body
Thickness of door
Material of body, door and bolt work
Material of fixing screws
SMARTBOX OPERATING MANUAL—JUNE 2009
Dimensions Net weight
H x W x D (mm) (kgs)
200 x 350 x 220 9
200 x 435 x 383 14
254 x 483 x 400 17
Example of a clamping bolt

Securing the back of the safe

Volume
(litres)
10
22
34
2 mm
5 mm
solid steel DIN ST37-2
solid steel DIN ST37-2
18
