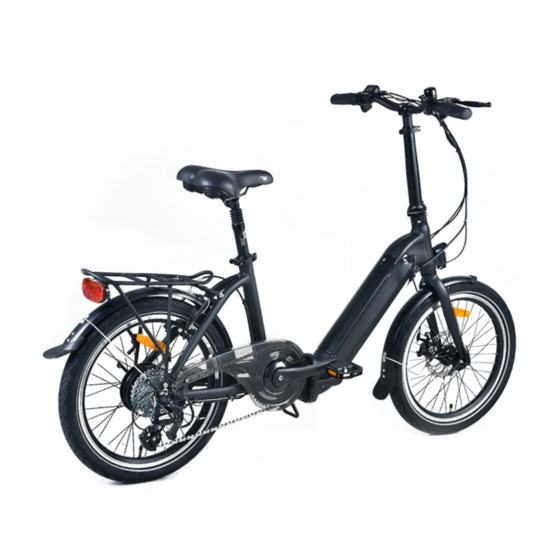

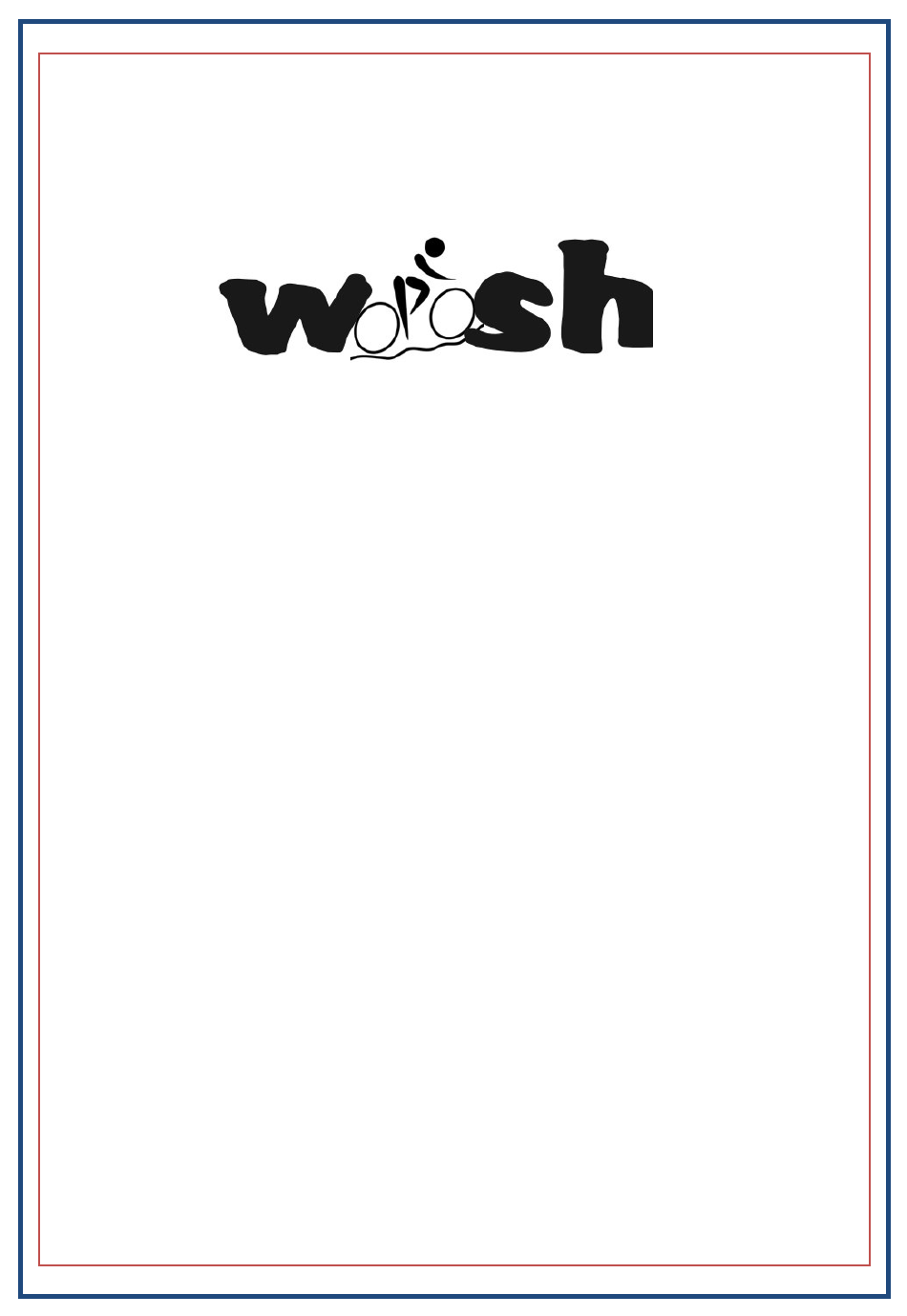

- Page 1 Woosh Rambletta Please read this manual. It contains important information regarding your safety, and the correct use of the bike. Support is available Mon to Fri from 10am to 5pm support@wooshbikes.co.uk Tel. 01702 435566 — E-mail: support@wooshbikes.co.uk...
- Page 2 Thank you for buying a Woosh Rambletta. Please read this manual completely before putting your bike together and riding it. As well as in- structions on assembly and maintenance it also contains essential information that may affect your consumer rights.
- Page 3 See the maintenance manual for how to adjust and maintain the various components of the bike. Please note that failure to carry out these checks properly could result in serious injury for which Woosh Bikes Ltd will not be held liable.
- Page 4 Unpacking: Two people are required to unpack the bike. The carton should be kept upright at all times. Remove the shipping straps, cut the tape seals and then remove any/all loose packaging and also the ac- cessory box, mud guards, and battery (if it’s not already fitted on the bike). Then lift the bike out of the car- ton, and immediately down to the floor.
- Page 5 Handlebars: When the bike is unboxed, the stem will be in the folded position on the right-side of the bike. The handle- bar itself will be secured on the left side, you will need to slide the handlebars into the stem, close the clamp and then fold the handlebars into an upright position.
- Page 6 Charging/locking the battery: The battery will not leave us fully charged. You should fully charge the battery before using your bike. The socket used to charge the battery can be accessed at the top-left of the downtube, see below. Lift the rubber cover to access the charging socket.
- Page 7 Seat-post/saddle: To adjust the height of the saddle, undo the clamp, position the post at the desired height and then close the clamp to secure the post in position. Pedals: Important—the pedals fit a specific side of the bike. If you attempt to fit the pedals to the wrong side, you will damage the threads on the cranks.
- Page 8 To fold the bike: There are two areas of the bike that can be folded. The handlebars can be folded down wards so that they rest at the right side of the front wheel, and the bike also folds in half. To fold the handlebars: lift the locking mechanism upwards (see below-left), and then open the clamp (see below-right).
- Page 9 The handlebar stem should not rattle or feel loose, if it does, or if over time it starts to feel slightly loose, you will need to make a small adjustment. Open the clamp, and loosen the allen bolt indicated below-left, with a 2.5mm allen key.
- Page 10 Obviously the bike shop will you charge for this service. Woosh Bikes will not reimburse you for these costs.
- Page 11 Operating/maintaining the front & rear lamps: The rear lamp uses 2x AA batteries. The on/off button is located on the top face. To change the batteries, there is a lug on the lower-rear of the light, this needs to be pulled down and away from the bike. The front lamp uses 2x AA batteries.
- Page 12 Riding the bike To turn the bike ON and OFF, press AND HOLD the middle button for a second or so. With the display now illuminated, the bike is now on and will provide assistance when ridden. Use the plus (+) and minus (-) buttons to increase or decrease the amount of assistance given.
- Page 13 If you do not regularly maintain your bike, you may damage the bike and also there are likely to be safety issues for which Woosh Bikes will not be held liable. Please read the following: Your spokes will have been checked before despatch, but if you have a look, you will find some less tight than others.
- Page 14 Adjusting the brakes: The Rambletta comes with cabled ’V’-brakes front and rear. These are checked and set up before the bike is dispatched but you must check that the brakes are working properly before you ride the bike. See the maintenance manual for help on how to you adjust your brakes, but if you aren’t able to manage this yourself, you should take it to your local bike shop and have them adjust them for you.
- Page 15 Option 1 - is used to reset the trip back to zero. Option 2 - is used to select whether to display the speed in Miles or Kilometres. Making changes to options 3, 4 or 5 without first obtaining authorisation from Woosh will void your warranty with immediate effect.
-
Page 16: Declaration Of Conformity
Woosh Sant Ana 3 Woosh Sant Ana CD Manufacturer, address Made in China for Woosh Bikes Ltd 42-46 Queens Road, Southend-on-Sea, Essex, SS1 1NL, UK The product (system) identified above is in conformity with the listed European Directive(s). The following table identifies the applied standards and the conformity assessment procedure. - Page 18 (usually the same day). Support staff are not available at the weekends, so any emails sent over the weekend will normally be re- sponded to on the next working day. Support articles and FAQ’s: www.wooshbikes.co.uk/?support Email: support@wooshbikes.co.uk © 2020 Woosh Bikes Limited...
