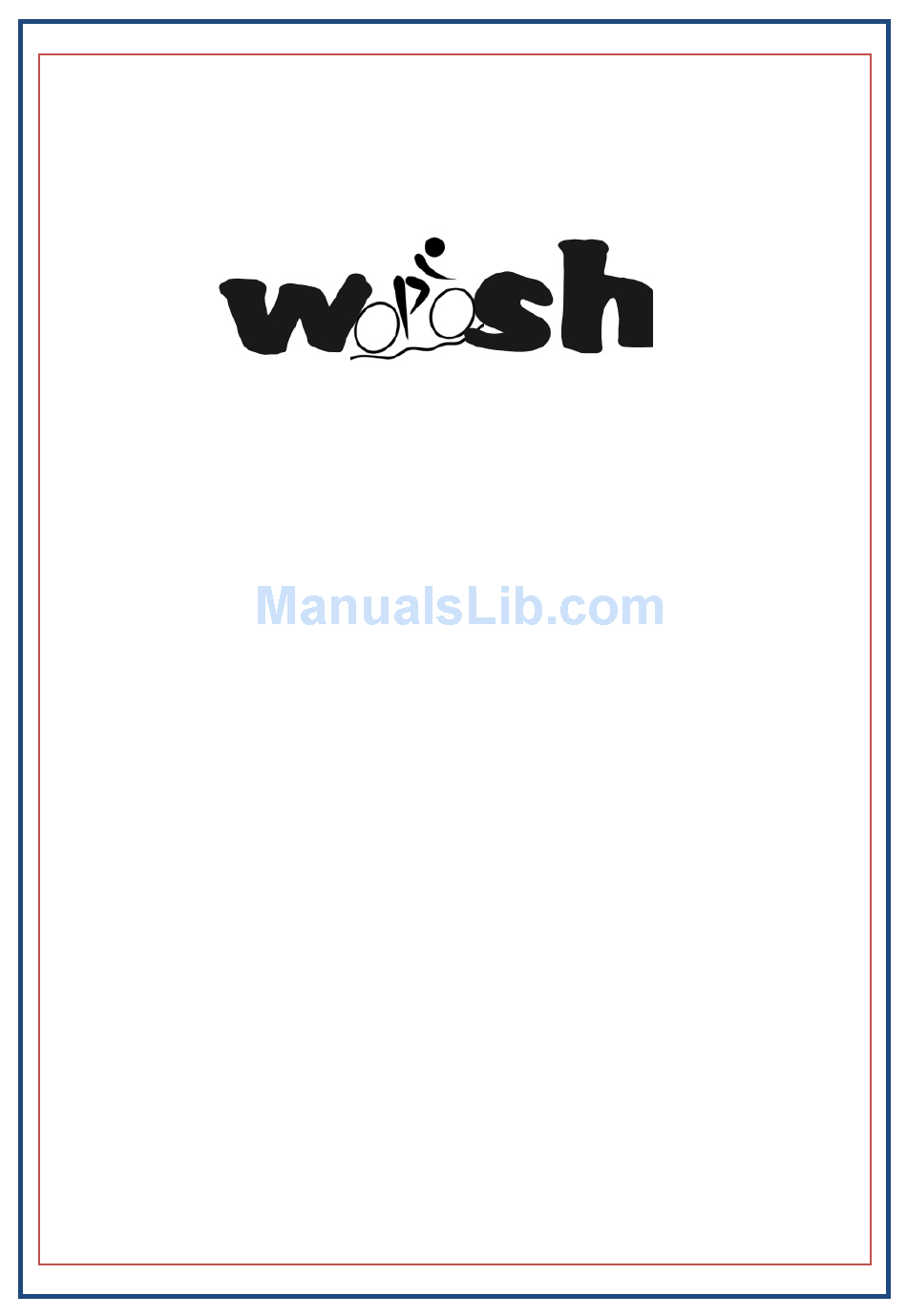

Zephyr 'B' Manual
Please read this manual.
It contains important information regarding
your safety, the correct use of the bike and
how to avoid expensive repair fees
in the future .
Support is available Mon to Fri from 10am to 5pm on
01702 684444 If there is no answer, leave a message and
we will call you back.
Sales: 01702 435566 — Support: 01702 684444 — E-mail: support@wooshbikes.co.uk
1
Advertisement
Related Manuals for Woosh Zephyr-B
Summary of Contents for Woosh Zephyr-B
- Page 1 Zephyr ’B’ Manual Please read this manual. It contains important information regarding your safety, the correct use of the bike and how to avoid expensive repair fees in the future . Support is available Mon to Fri from 10am to 5pm on 01702 684444 If there is no answer, leave a message and we will call you back.
- Page 2 Thank you for buying a Woosh Zephyr B electric bike. Please read this manual completely before putting your bike together and riding it. As well as instructions on assembly and maintenance it also contains es- sential information that may affect your consumer rights.
- Page 3 Expectations: please read this before riding Pedalling: E-bikes are designed to be primarily pedalled, with use of the throttle occasionally i.e. to rest for a short period. Using the throttle constantly will run the battery down far more quickly. Speed: Our bikes are designed for sensible use in accordance with UK law. The motor will power you up to 15.5 mph and no faster, though you can still pedal harder to achieve greater speeds.
- Page 4 Returning a bike — please read before riding. If you have purchased at a store, or have tried a bike at a store and then had one sent to you, you are not a mail order customer. We will only refund you for the bike if it has a serious fault within the first 28 days. We will not refund you if you simply change your mind after a few days.
- Page 5 The Woosh Electric Bike 12 month Warranty This warranty covers: Manufacturing defects causing electrical failure within the first year Manufacturing defects causing major mechanical failure (frame and handlebars) within the first year Manufacturing defects causing minor mechanical failure (pedals, spokes etc.) within the first 28 days.
- Page 6 Woosh Bikes Ltd will not be liable for personal injury caused through mishandling. Your Woosh electric cycle will come mostly assembled, but to make shipping easier, some parts of the cycle may require a small amount of assembly to be completed before use. This manual assumes you are reasonably competent with and have your own toolkit (though a very basic one is supplied).
- Page 7 Please be assured that we never sell second hand bikes as new. Using your Woosh electric bike abroad Please note that whilst you are allowed to use your throttle in the UK, its use is illegal in Europe. We highly recommend that you use the red switch to deactivate it when riding abroad.
- Page 8 Please note that failure to carry out these checks properly could result in serious injury for which Woosh Bikes Ltd will not be held liable. If you have any doubts about your own ability to do them, we strongly recommend you visit your local bike shop and pay their fee.
- Page 9 Unpacking: Two people are required to unpack the bike. Stand the carton upright as shown. Remove the shipping straps, cut the tape seals and then remove all of the polystyrene packaging. Keep the carton/bike in the upright position, and then lift the bike out of the carton and place it on a sturdy surface.
- Page 10 Handlebars: Next, set the handlebar stem at the desired height and then tighten the Allen bolt indicated in the left of the two picture below to secure the stem in position. Ensure that the handlebars line up correctly with the front wheel. The clamp on the top side of the assembly is used to adjust the height/rotation of the han- dlebars - with the clamp up/open, raise/rotate the handlebars to the desired position and then simply lock in place by closing the clamp, see below for a more detailed explanation of the available adjustments.
- Page 11 Seat-post/saddle: The seat-post simply slides into position and then the clamp is used to secure it. To adjust the height of the saddle, simply open the clamp and then position the seat-post at the desired height and then close the clamp to lock it into position.
- Page 12 Charging/locking the battery: The battery may not leave us fully charged. You should fully charge the battery before using your bike. The battery can be charged on the bike or it can be removed and charged separately. The socket used to charge the battery is located on the underside of the frame as shown below. Ensure that the charger is switched OFF before attaching the charger to the bike.
- Page 13 Charging/locking the battery cont. The picture below shows the bolt protruding from inside the frame, when the bolt is in this position, the bat- tery cannot be removed. This bolt can be seen by opening the clamp on the right side of the bike. Battery care: The Zephyr B comes with a modern light-weight lithium polymer battery.
- Page 14 Obviously the bike shop will you charge for this service. Woosh Bikes will not re- imburse you for these costs.
- Page 15 Riding the bike To begin using the bike, press (and hold) the ‘Mode’ button to switch on the ‘King-Meter’. The bike is now effectively on, and if you ride it in this state, the motor will provide assistance when pedalling and you will also be able to use the throttle if you wish.
- Page 16 Riding the bike cont. Your bike features 7 speed Shimano index shifting gears which are changed using the thumb selector on the right side of the handlebars. When the thumb stick is fully extended, the bike is in first gear (the easi- est to pedal).
- Page 17 If you do not regularly maintain your bike, you may damage the bike and also there are likely to be safety issues for which Woosh Bikes will not be held liable. Please read the following: Your spokes will have been checked before despatch, but if you have a look, you will find some less tight than others.
- Page 18 Fitting/Operating the lights: The front light is already fitted, to operate the this light, simply press the button on the top of the light to cycle through the modes which are: On, Flashing and Off. If your light doesn’t work initially, it is likely that the insulating material fitted at the factory to stop the bat- tery going flat is still in place.
- Page 19 Failure to carry out essential maintenance on your bike on a regular basis could result in an injury, for which Woosh Bikes Ltd will not be held liable. Please ensure this is done to ensure your safety.
- Page 20 King-Meter—Advanced The King-Meter has many advanced features and modes, these include back-lit display (for night riding), indicator options for max speed, average speed and current speed, a digital clock and a battery power in- dicator. Battery Level Indicator Assistance Level (Pedal Assist) Odometer Digital Clock Speed Indicator...
- Page 21 Riding Distance/Total Distance To change the display between riding distance and total distance, press the Mode button. The current mode is indicated by “Trip” for “Current Trip Distance” and by “Odo” for “Total Distance”. Control Module Battery The “control module” itself has a battery which retains the settings within the module. This battery should last for around 2 years.
- Page 22 Email: support@wooshbikes.co.uk Telephone: 01702 684444 (If there is no answer, leave a brief message and contact no. and someone will call you back asap). Support staff are available 10am to 5pm Monday to Friday. © 2014 Woosh Bikes Limited...
