Cruise N Comfort HD 12L Installation & Operating Instructions Manual

Installation

1. Locate the area where the unit will be mounted and double check
that there are NO obstructions. Make sure that the location allows
for the cold air to return to the units evaporator.

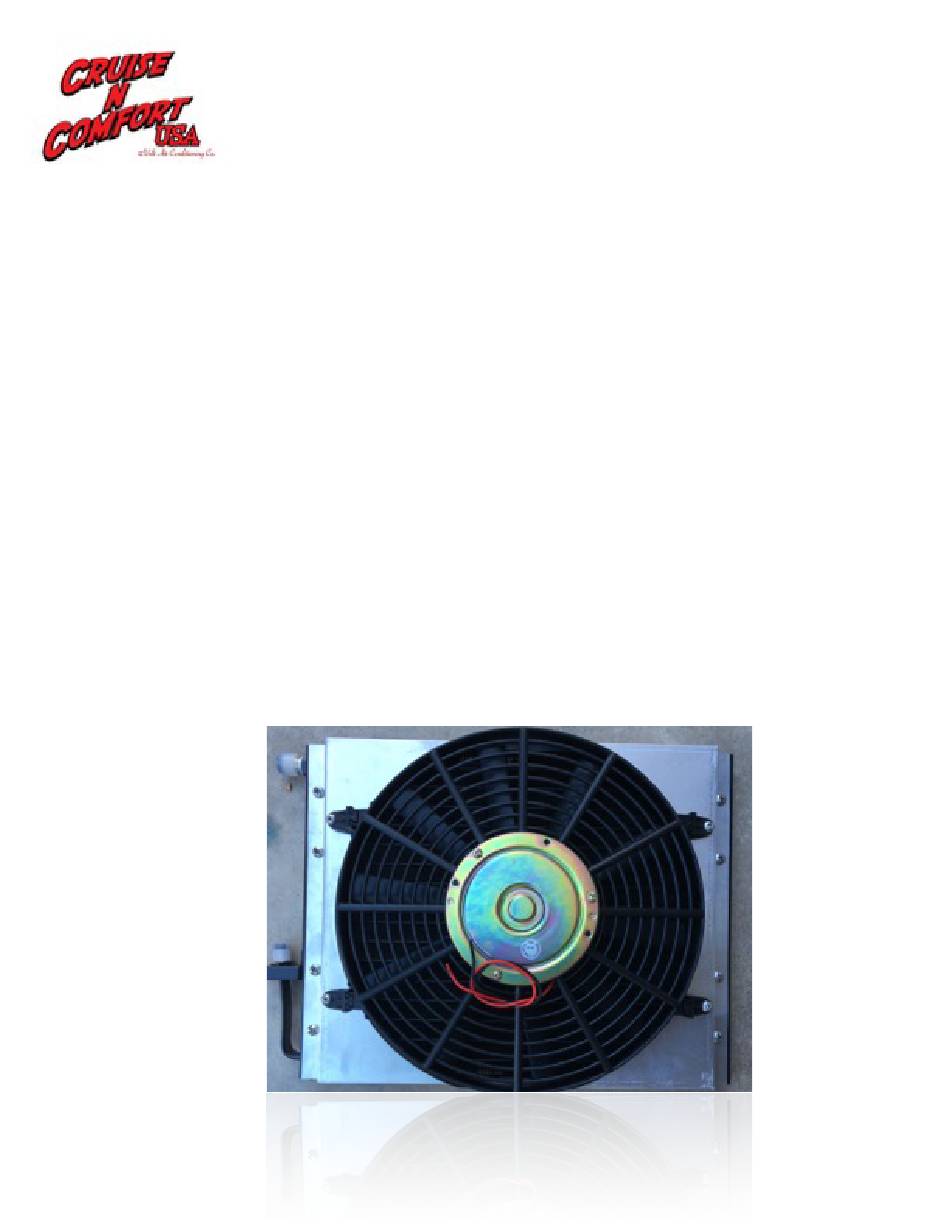

2. Find a suitable location for the remote condenser. This condenser is
not designed to be in front of a radiator, it will block the air flow and
cause over heating. The remote condenser must be installed so air
can enter the front of the condenser and then is pulled thru the fan. It
is a good idea to have the fan toward the back of the vehicle so when
traveling down the road air can easily go thru the condenser. The
unit can be mounted standing up with the large port being higher
than the small port and the hose exiting out the side not the top.
Remote condenser can be laid almost flat, always maintain a
minimum of a 15 degree angle so that the large port is always higher
than the small.
Large port
Small port
Installation/Operating Instructions
HD 12/24 L/s 12Volt Air Conditioners
Page 1 of 7
