Summary of Contents for Cotek CR Series
- Page 1 CR Series User’s Manual CR-20C Remote Control...

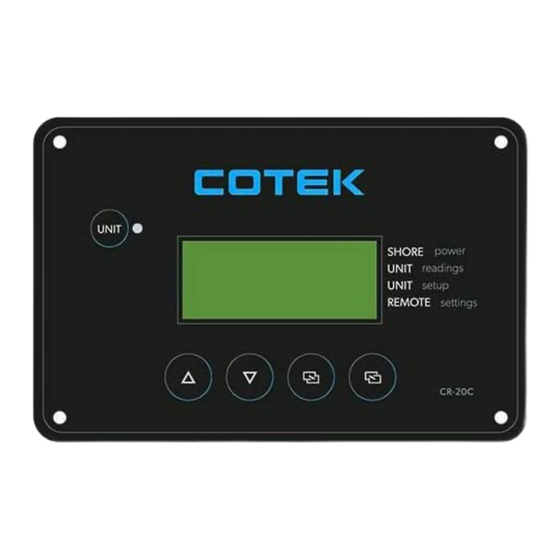

- Page 2 Overview CR-20C is a remote control designed for connecting to SC inverter/charger. The package is including: (1) CR-20C (2) 7.5m Cable (3) User Manual Fig. 1 (Unit: mm) The CR-20C is equipped with the following features : 1.1 LED Indicator The LED provides the inverter/charger statuses in a straight forward way.
- Page 3 ON/OFF Pushbutton To turn on/off UNIT quickly. Buttons Click buttons allows you to select a menu item or to save a setting, once it is displayed on the LCD screen. WARNING: Turning the unit OFF does not mean to disconnect the batteries or AC Power Source.
- Page 4 Installation Overview The remote is required in order to connect the inverter/charger. Each inverter/charger must be connected directly to the remote using the supplied RJ11 communication cables. The remote must be located close to the inverter/chargers within 7.5 meters and acts as the system control panel. Mounting the Inverter Select an appropriate location to install the remote.
- Page 5 Introduction Front Panel Fig. 3 LED Indicators - There is a LED indicator on the front panel that light solid to indicate the INV ON/OFF. LCD Display - The LCD display is used for setting up the system operation, as well as viewing current operating status and fault conditions.
- Page 6 UNIT setup - Setting inverter parameter. (see 4.3) REMOTE settings - Setting CR-20C parameter. (see 4.4) CR-20C Menu Maps 4.1 SHORE power. 4.2 Select SHORE power and press Enter Button as below frame. 4.3 UNIT readings.
- Page 7 4.4 UNIT setup. 4.5 REMOTE setting.
- Page 8 Default PIN Code: 1224 System Status Messages UNIT LED indicator UNIT ON/OFF Solid Green Normal Solid Red Error No.33, Sec. 2, Renhe Rd., DaxiDist., Taoyuan City 33548, Taiwan Phone：+886-3-3891999 FAX：+886-3-3802333 http：// www.cotek.com.tw 2018.10._A0...
