User Guide For CR-21 PLUS Remote Control
1. Introduction
1-1. System
The remote is designed to easily and quickly connect Cotek SR-1600 Plus.
The LCD display is used for setting up the inverter, as well as displaying current
status or fault messages.
to save a setting, once it is displayed on the LCD screen.
Description
A
UP
B
DOWN
C
ESC
D
ENTER
E
RJ-45 port
Pressing buttons allows you to select a menu item or

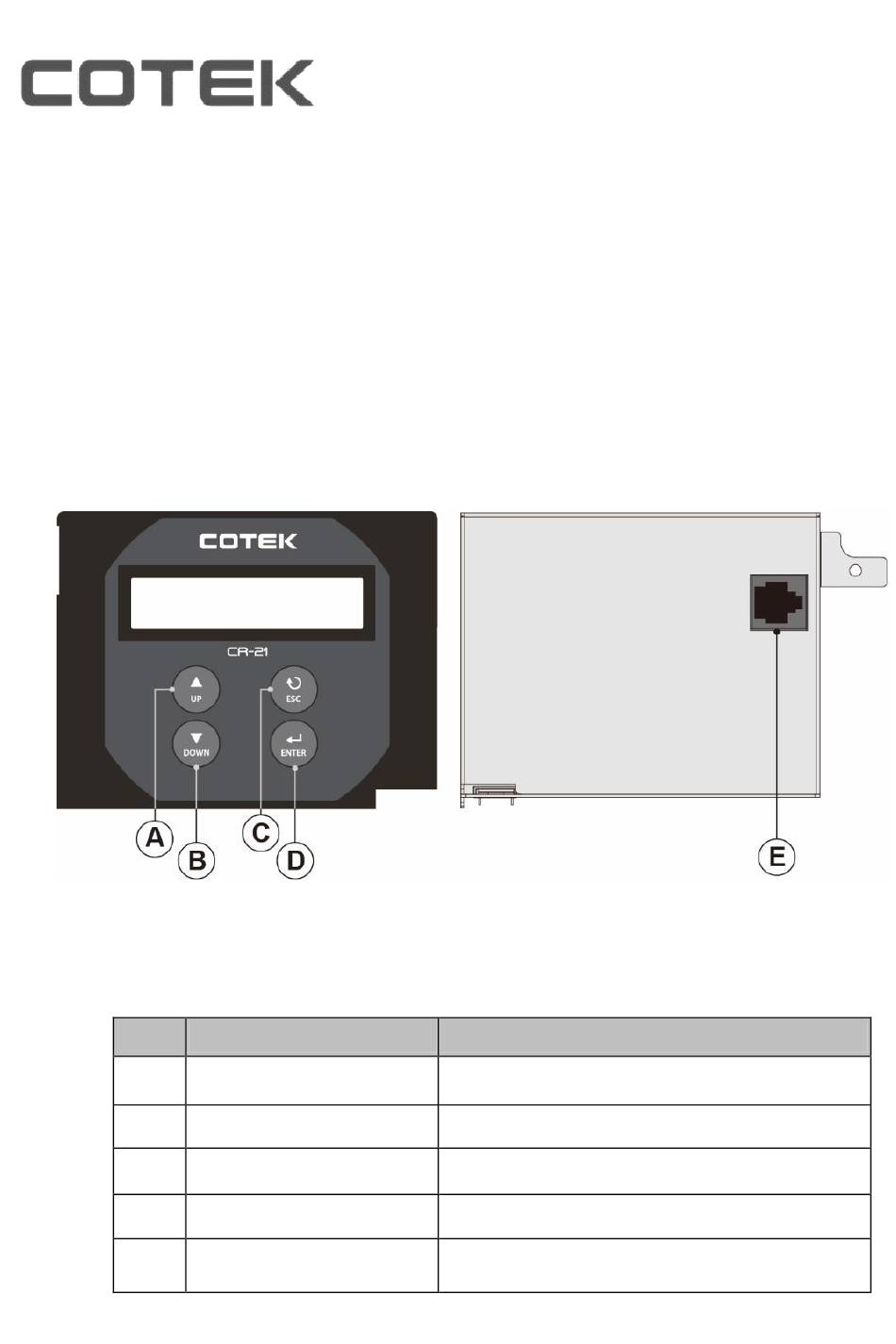

Front and rear Panel introduction
Function
Scroll up
Scroll down
Go back to previous page.
Enter next page and save setting value
Connect to the Inverter
