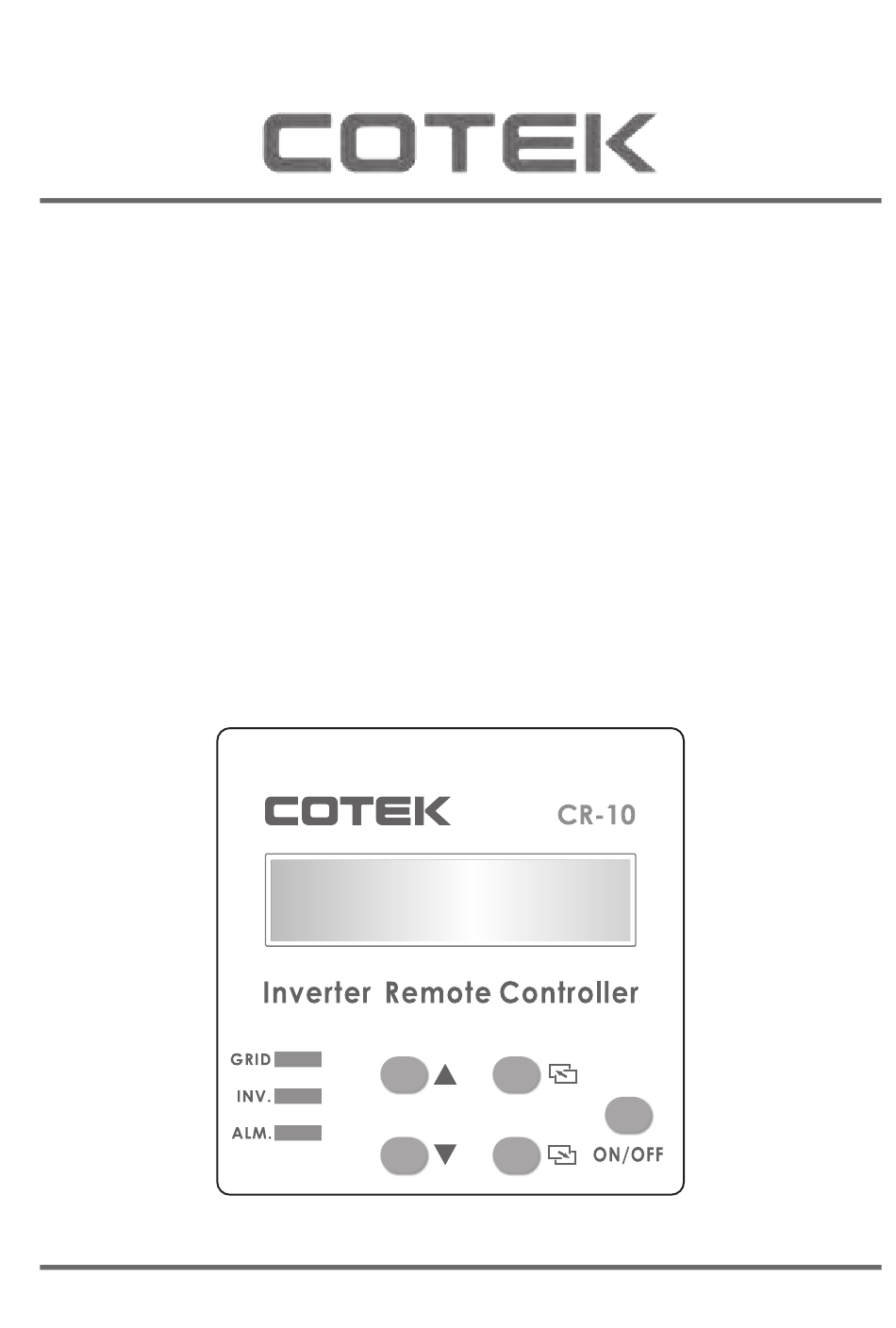

  • Page 1 CR-10 Remote Control User’s Manual www.cotek.com.tw...

  • Page 2: Remote Control Introduction

    Remote control introduction Press the ON / OFF button on the front. The SD-series starts working normally. After switching on expect a five to ten second delay. The SD-series will be operating in normal condition when either of the following messages are displayed on the LCD panel screen : 2-φ3.3 30.5 LED Indications :...
  • Page 3 LCD Remote Control Panel Selection Buttons : ˙ Function : Function [Up] You can use the “up” button to scroll through the menus or to select the value for set up under setting mode. [Down] You can use the “Down” button to scroll through the menus or to select the value for set up under setting mode.
  • Page 4 LCD Rear View Introduction Jump (reference 1 ) The “J1 jump” is placed inside the remote controller. ˙ J1 jump “open” J1 Jump “CTL” Input Voltage SD-series Turn ON 5 ~ 60 VDC Open Turn OFF ˙ J1 jump “short” J1 Jump “CTL”...
  • Page 5 ˙ ALM (PIN1) When the SD-series has the warning or the protection displayed, simultaneously this “ALM” pin will changing output to 5 Volt / 10mA control signal to provide the user. ˙ ENB (PIN3) User can USE this “-ENB” pin to control the SD-series to turn ON or turn OFF.
  • Page 6 Display tree: Power Switch ON INVERTER Initialization.. Vi=xx.xxVo=xxx.x FQ=xx.x Io=xx.x User Interface I/P Parameter O/P Parameter RST to Default LCD Contrast OVP Setting O/P Voltage <Function 14> <Function 0> <Function 5> OVP Recovery O/P Frequency LCD Auto-off <Function 1> <Function 7> <Function 15>...
  • Page 7 FQ = xx.x →Display the INV frequency. Io = xx.x →Display the INV output current. Vi:XX.X Vo:XXX.X FQ = xx.x →Display the INV frequency. FQ:XX.X Io:XX.X Io = xx.x →Display the INV output current. Parameter Setting: Press button before entering the “User Interface” menus. ˙...
  • Page 8 Setting Menu SETT(RS-232) Buzzer(Beep sound) Disable SHDN Alert Buzzer Alert , SHDN Setting MSG , SHDN MSG , Alert MSG , Alert , SHDN 5. Alert Setting : When alert occurs, the internal dry contact relay will open/close. Default = Alert, SHDN Setting range = 0~3 Setting Menu SETT (RS-232)
  • Page 9 ˙ I/P Parameter 1. OVP Setting : Set the Over Voltage Protection (OVP) and shutdown. Default = 16 VDC @ 12V Model, 32 VDC @ 24V Model. 64 VDC @ 48V Model Model Setting value range 15 VDC ~ 16 VDC 30 VDC ~ 32 VDC 60 VDC ~ 64 VDC 2.
  • Page 10 5. UV Alarm : Setting Under Voltage (UV) alarm. When the input voltage is lower than the set value, the SD-series will sound a “beep” to remind you that the unit is going to shut-down. In the meantime, the contact in the internal Dry Contact Relay will open / close.
  • Page 11 Example1: AC input = 230 VAC / 50Hz, User setting Value= 7Hz When the SD-series “Output frequency” is within The Range of 43 Hz~57 Hz, the internal transfer relay will close. When the output frequency is less than 43 Hz or more than 57 Hz, the internal transfer relay will still open.
  • Page 12 7. Bypass Relay : The setup is provided in one of the following two ways. On-line Mode or Off-line Mode ( Exacting, Normal, Haphazard). Default= Normal (Off line). SETT Model Setting value range <value> The transfer relay will switch “ON” or “OFF”. Conformance to, phase and frequency Haphazard synchronization will not be considered.
