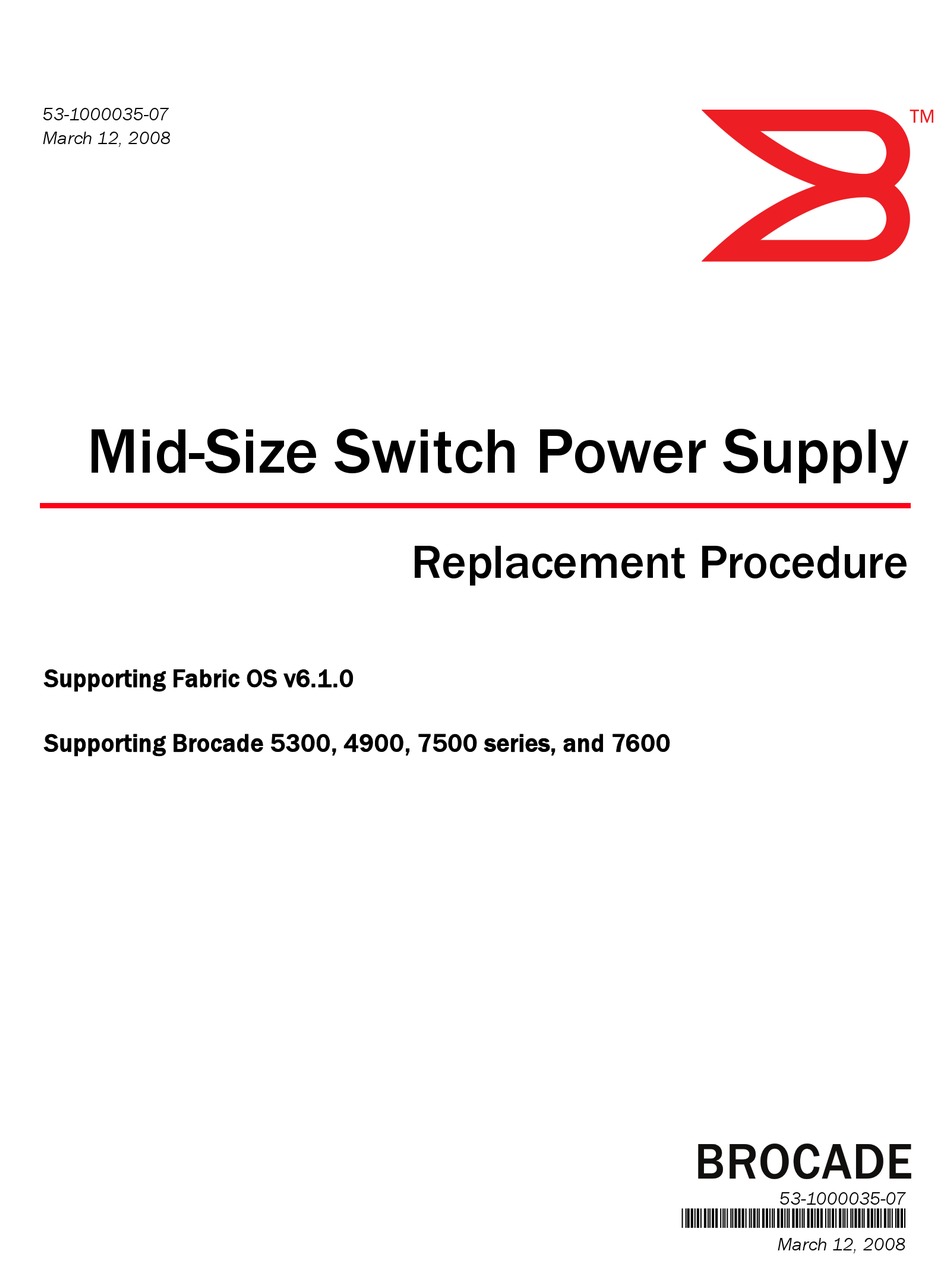

- Page 1 53-1000035-07 March 12, 2008 Mid-Size Switch Power Supply Replacement Procedure Supporting Fabric OS v6.1.0 Supporting Brocade 5300, 4900, 7500 series, and 7600 53-1000035-07 *53-1000035-05* March 12, 2008...
- Page 2 United States government. The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.
- Page 3 Brocade Communications Systems, Incorporated Corporate Headquarters Asia-Pacific Headquarters Brocade Communications Systems, Inc. Brocade Communications Singapore Pte. Ltd. 1745 Technology Drive 9 Raffles Place San Jose, CA 95110 #59-02 Republic Plaza 1 Tel: 1-408-333-8000 Singapore 048619 Fax: 1-408-333-8101 Tel: +65-6538-4700 Email: info@brocade.com Fax: +65-6538-0302 Email: apac-info@brocade.com...
-
Page 4: Power Supply Replacement
Power Supply Replacement The Switch or SAN Router has two power supplies, as displayed in Figure 1. Fabric OS identifies the power supplies from right to left on the nonport side as Power supply 1 and Power supply 2. (The actual appearance of the Switch or SAN Router may differ from this illustration but the locations are correct.) FIGURE 1 Power supplies on the nonport side... -
Page 5: Time Required
CAUTION Disassembling any part of the power supply voids the part warranty and regulatory certifications. There are no user-serviceable parts inside the power supply. The cooling system relies on pressurized air, do not leave either of the power supply slots empty longer than two minutes when the Switch or SAN Router is operating. -
Page 6: Replacing A Power Supply
Replacing a Power Supply Perform the following steps to replace a power supply unit in the Switch or SAN Router. 1. To leave the Switch or SAN Router in service while replacing a power supply, verify that the other power supply (the one not being replaced) has been powered on for at least four seconds and has a steady green LED. - Page 7 9. Optionally, if using the Command Line Interface (CLI), enter the psShow command at the command line prompt to display power supply status. Power supply status can also be viewed using the Web Tools application. See Figure 1 on page 4 for the location of Power supply 1 and Power supply 2. FIGURE 2 Inserting the power supply scale: 1/4"...
- Page 8 8 of 8 Mid-Size Switch Power Supply Replacement Procedure 53-1000035-07...
