Operation

Press the power button once to activate EvaDrive. The lift is ready for opera-
tion after about 2 seconds.
No load should be applied to the handlebar or the orange safety switch when
the lift is being started; calibration takes place instantaneously when the the

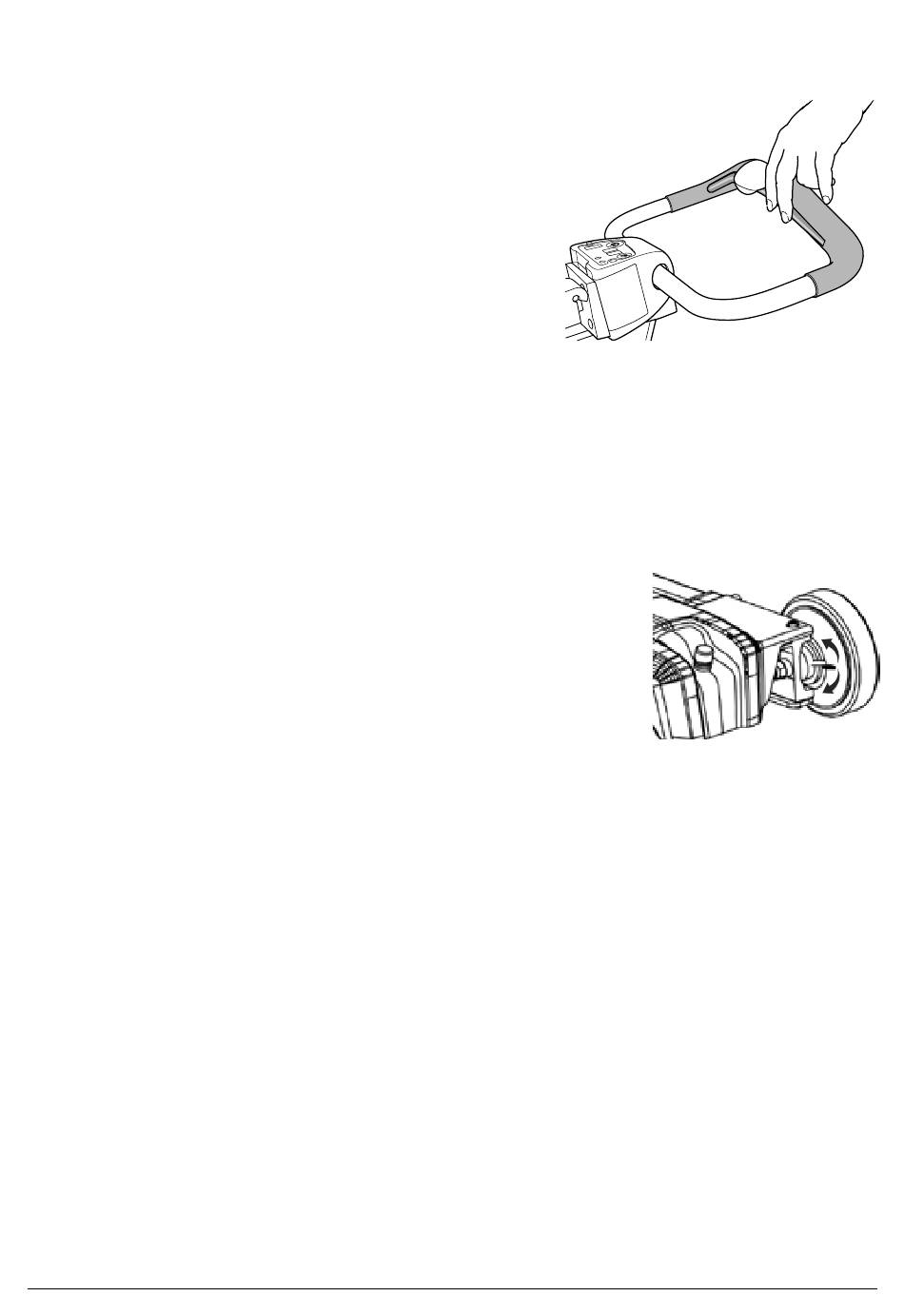

system is starting up. Grasp the handlebar, including the safety switch, and
apply pressure to the handlebar in the desired direction of travel; the lift will
then begin to move. The handlebar senses the desired speed and direction
of travel, and adapts to the right level. Transfer/movement of the lift is
more gentle and more even if the arms are somewhat relaxed while
manoeuvring the lift. To turn, simply apply a light pressure to the
handlebar in the desired direction.
NOTE! Only minimal pressure is required to manoeuvre EvaDrive, regardless of
the load on the lift.
Using the parking brakes
The parking brakes are activated by being pushed down and deactivated by being
pushed up wards.
When the brakes are activated they are automatic and only switched on when the lifts
is standing still and are released when a signal is given trough the handlebar. A click is
heard when the brakes are switched on or off. When the brakes are deactivated the
lift can be moved manually even though it moves easier if the drive system is shut off.
It is recommended that the brakes are deactivated during lifts.
Safety check before starting
After starting the lift, do not touch the handlebar for a few seconds to allow the lift to automatically calibrate. While this
is happening, the green light beside the low-speed button will blink quickly; operation of the lift is not possible until
EvaDrive has completed automatic calibration.
If the handlebar is hit violently or subjected to impact, the sensors' neutral values can be affected so much that the
blinking warning will not stop. In this case, manual calibration must be done according to the following instructions.
Manual calibration of EvaDrive
Hold the orange safety switch in while EvaDRive is starting up. This will cause the green light to blink slowly. Continue to
hold the safety switch in for about 5 seconds until the green light starts to blink faster. Release the safety switch and do
not touch the handlebar until the green light stops blinking (after about 10 seconds).
