Gronomics ECOGW 30-34 Assembly Instruction

1
Parts Identification
Stack matching pieces in piles. Using the parts list,
locate and count the individual pieces and verify that
you have received the correct number of pieces.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or
place product directly on a flat level surface before
filling with soil.
ITEM QTY. PART #
1 4
2 8
3 2
WER2538
4 2 WER1938
5 2 WER1358
6 2 WER0775
7 1
8 2
9 4
10 1
2
Post Assembly
Place two 3-1/4" x 3-1/4" x 41-1/4" corner posts (Item 1)
together as shown.
Repeat procedure for the two remaining corner posts.
Note: It is a snug fit placing the posts together. You may
need to use a rubber mallet until corner posts are seated
(flush) together
Packaged & Inspected by:
WWW.gronomics.com
Parts List
DESCRIPTION
CP41 Corner Post, 3-1/4" x 3-1/4" x 41-1/4"
R3100 Front & Back Side Rails, 31" x 5-9/16 x 7/8"
End Side Rails, 25-1/16" x 4-1/8" x 5/8"
End Side Rails, 19-3/8" x 4-1/8" x 5/8"
End Side Rails, 13-3/4" x 4-1/8" x 5/8"
End Side Rails, 8-1/8" x 4-1/8" x 5/8"
BCR29 Bottom Center Rail, 29-1/2" x 2-1/2" x 13/16"
SP1-30 Stiffener Plate
R3100 Post Cap, 4-5/8" x 4-5/8" x 1-1/2"
FL3652 Fabric Liner, 36" x 52"

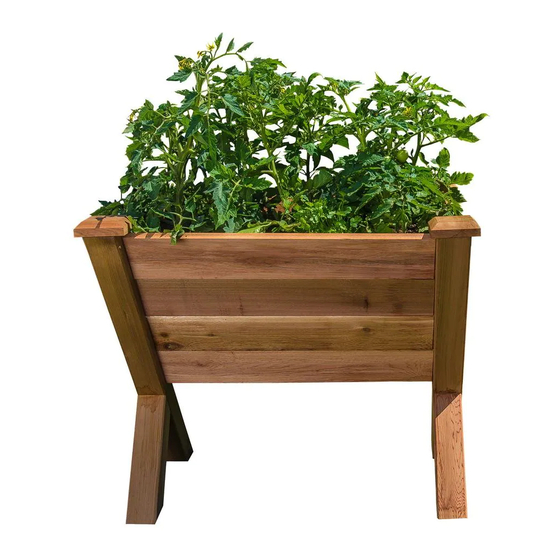

Eco Modular Rustic Garden Wedge
(30"W x 34"L x 32"H - 18D) Assembly Instruction
1
East Bethel, MN USA
Item #: ECOGW 30-34
2
7
3
4
5
6
9
10
Product Care & Maintenance
Western Red Cedar will turn a
weathered grey if left unfinished.
Although no finish is required for
cedar products when used out-
doors, a natural oil finish applied
regularly will help maintain the
beauty and minimize cracking and
drying. It is recommended to use
Gronomics Garden Bed Oil
(Item # GBO-1Q), a non-toxic,
food safe finish that is very easy
to apply. Apply Oil when air and
wind temperatures are between
50-90 degrees. Avoid applying in
direct sunlight.
1
Date:
8
Continued
763-753-7374
