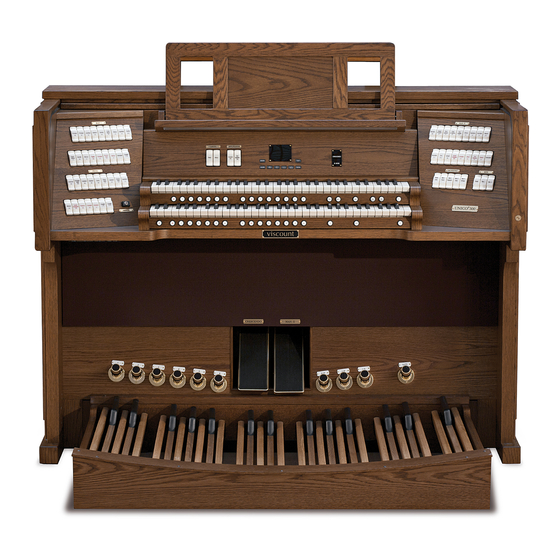

Viscount Unico 300 Instructions

Instructions for loading custom Factory Styles into Unico 300

1. Extract the Unico300 voicing archive to your computer.
2. Connect the Editor to the organ and establish a link to the organ.
3. Using the Editor, from the "Tools" menu, select "Select Organ Style" and choose any one of the four user
styles (it does not matter which one).
4. Load the additional voices into the organ using the Physis Organ Editor:
a. Right-click on a stop to load, then Select "Load Voice..."
b. Find the appropriate file (from page 2 of the document) and click "Open"
c. Repeat for each stop listed on page 2.
5. Load the new factory styles into the organ using the Physis Organ Editor.
a. From the "Tools" menu, select "Upload to Organ"
b. Select the "All (*.all)" option
c. Find the "VPFS300.all" file on your computer that was previously extracted and click "Open."
d. Click "Ok" to confirm that all current settings and parameters in the organ will be replaced.
6. Check the external audio channel size (if used) and adjust as needed.
a. Un-link the Editor or close the Editor, and enter the "SETUP" menu on the organ
b. Move down to the "EXT. OUT RESIZE" line and press enter
c. Set according to the installed external audio system.
7. Check the external audio channel configuration (if used) and adjust as needed.
a. Move to the "EXT. OUT CONFIG" line and press enter
b. Set as desired.
8. Check the external router config (if used) and adjust as needed.
a. Move to the "EXT. OUT ROUTER" line and press enter
b. Set each stop as desired.
NOTE: The use of POLY4 or POLY6 is suggested, provided the external speaker layout permits.
(organ OS ver. 1.14.2)
