- Page 1 S-line S-line Operator’s Manual 0407-17-08-18 V8...
-
Page 2: Table Of Contents
S-line CONTENTS SUBJECT Page …………………………………..… MAIN SETTINGS …………………………………….. OVERVIEW …………………………………….. PRACTICAL USE ..........CHECK OF SPREADER – before use …………………………………….. …………………………………….. TECHNICAL SPECIFICATIONS, general …………………………………….. TECHNICAL SPECIFICATIONS, specific …………………………………….. STANDARD EQUIPMENT …………………………………….. OPTIONAL EQUIPMENT …………………………………….. MAINTENANCE AND CARE Normal maintenance…………………..9 Protection, friction clutch .…………. -
Page 3: Main Settings
S-line MAIN SETTINGS PTO- speed RPM. TILT-angle Mounted Horizontal WORKING HEIGHT from ground to disc QUANTITY SETTING See chart VANE POSITION See chart LIMITER f/ SPREAD WIDTH See chart Spread Chart Vane type Agitator Type Speed PTO: 18-09-2007 Spread width - 905 Gr/m Kg/min... -
Page 4: Overview

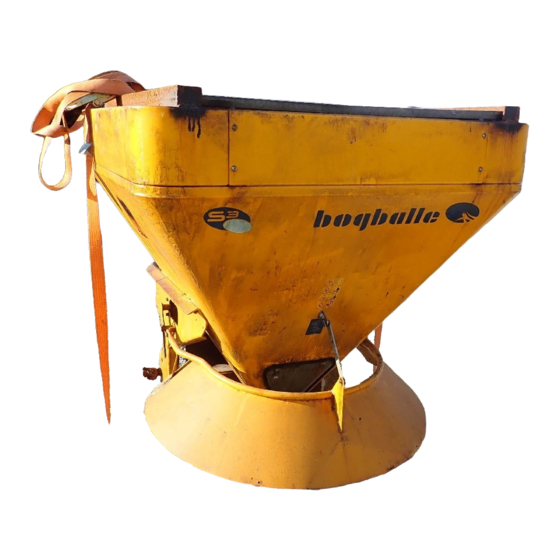

S-line OVERVIEW Hopper Setting pointer Setting scale Agitator Parallel guiding axle Fixture for Limiter adjustment of limiter PTO-shaft Link pins Angle transmission Alternatively: Oil motor Inspection window Top link fixture Serial No. Connection Rod f/ shutter Mudguard Canvas Skirt Friction clutch... -
Page 5: Practical Use
S-line PRACTICAL USE When driving with a full hopper it’s NOT recommended to drive on an uneven surface for a longer period of time – this might cause the material to compact. The tractor’s stabilization chains must be tightened in order to prevent the spreader from swinging from side to side while driving. - Page 6 S-line The spreading vanes are set by loosening the vane bolts and then place and fix the vane in the requested position. In case the material is supposed to be distributed even more to the left side of the spreader, the vane's inner fixture can be moved to track B. Track B Track A, Special...
- Page 7 S-line AGITATOR When driven by PTO the rotation has to be started slowly with the tractor idling. As standard the spreader is delivered with agitator for humid SAND and SALT (Agitator with rubber disc). The operation of the agitator is decisive for ensuring a constant and uniform material flow.
-
Page 8: Check Of Spreader - Before Use
S-line CHECK OF SPREADER - before use The adjustment and closing shutters must be easy to move. Never use force. If the system is not easy to move – the reason is often lack of lubrication of the setting system’s moving part or desiccated material remains. -
Page 9: Technical Specifications, General
S-line TECHNICAL SPECIFICATIONS, general Hopper volume Litres Hopper capacity 130, 240, 350 500, 775, 1.050 Spread width Max. 600 Max. 1.600 2 – 8 2 – 8 Spreading capacity Metres Ca. 5 – 350 App. 5 – 350 3-point linkage ... -
Page 10: Optional Equipment
CALIBRATOR ICON Traffic Lights Special Agitator for Rough Material All BOGBALLE products are subject to a continuous development. Therefore, the list might not always be up-to-date. MAINTENANCE AND CARE NORMAL MAINTENANCE The BOGBALLE machine is manufactured in such a way that it requires a minimum of maintenance. -
Page 11: Protection, Friction Clutch
S-line It is strongly recommended to grease the machine in a corrosion – BEFORE using it first time. protective liquid (for instance oil) Without protection, rust might arise within a few hours in areas, where the paint has been damaged – salt is very corrosive. -
Page 12: Lubrication
S-line LUBRICATION The components below must be greased according to below instruction ”OVERVIEW” See the explaining sketch in the paragraph LUBRICATION ONCE A DAY: COMPONENT INSTRUCTION Cardan joint and lock of the PTO Use grease Telescope axles of the PTO Use grease Setting and closing shutter Use grease... -
Page 13: Guarantee / Responsibility
S-line GUARANTEE / RESPONSIBILITY Claim conditions are according to Danish legislation. Service and repair are made free of cost within 12 months from date of purchase on the following conditions: That the failure is due to construction or material faults (Normal wear, missing maintenance and misuse not included). -
Page 14: Using The Calibration Kit
S-line Using the Calibration Kit Limiter and canvas skirt is used as calibration kit. Put the limiter in the lowest position with the canvas skirt mounted. The calibration kit is used for stationary calibration, so that the machine is adjusted precisely in comparison to the nature of the material in question. - Page 15 S-line Flow Factor Calculation [g/m ] x [M] x [Km/h] x 20 ► Flow Factor ► 400 rpm 30 sec. Flow [g/m [Km/t] Factor Rough Road Salt 2520 ► ► ► ► ► ► ► ► ► ► Flow Flow Factor Factor 1380...
-
Page 16: S2 Trail
S-line S2-Trail Agitator type OVERVIEW Setting pointer Setting scale Handle f/ disengagement Top link Lock/adjustment f/ limiter Setting of working width Clutch f/ spreading disc Drawbar and agitator Serial No. Wheel Transmission... -
Page 17: Practical Use
S-line PRACTICAL USE When setting the spreading system of the machine, say vane setting, PTO speed and limiter, see the paragraph ’PRACTICAL USE’ S2 / S3. S2 Trail reaches its maximum spread width at 16 Km/h – corresponding to 400 rpms/min. -
Page 18: Wheel Slip
S-line Wheel slip The S2 Trail spreading system is operated by the left wheel of the spreader. In case the ground is icy and the spreading material is compact – wheel slip may arise. (The wheel slides on the ground.) In such cases the following check and changes are recommended: ... -
Page 19: Technical Data General/Specific
Ground speed related quantity / working width Traffic lights Special agitator for rough material Better friction on icy surfaces Spike tyre Better friction on snow-covered surfaces Snow Sock All BOGBALLE products are subject to a continuous development. Therefore the list might not always be up-to-date. -
Page 20: Ec Declaration Of Conformity
S-line EC-Declaration of Conformity Manufacturer: BOGBALLE A/S Bogballe · DK-7171 Uldum Phone +45 7589 3266 Fax +45 7589 3766 Declares that machine: Sand and salt spreader: S2 / S3 Is made in conformity with: directive of 17 May 2006 conc. mutual approximation of the laws of the member states on machines (2006/42/EØF), with special reference to the enclosure II, A and enclosure I of the... -
Page 21: Pictograms
S-line PICTOGRAMS Read Operator’s Manual and safety rules before starting. Staying under the machine is prohibited. Safety distance for flying material must be observed. Avoid contact with rotating parts. Avoid contact as long as parts are moving. Do not spray water in this area. <... -
Page 22: Symbol Explanation
S-line SYMBOL EXPLANATION 2 is for spreading width and 904 is for material Vane Type (e.g. S3) Vane Settings (e.g. 3-3-3-3) Quantity (gr/m Grain Size: Ø > 4,75 mm 4,75 mm > Ø > 3,30 mm 3,30 mm > Ø > 2,20 mm Ø... -
Page 23: Notes
S-line NOTES: ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________... - Page 24 S-line NOTES: ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________...
