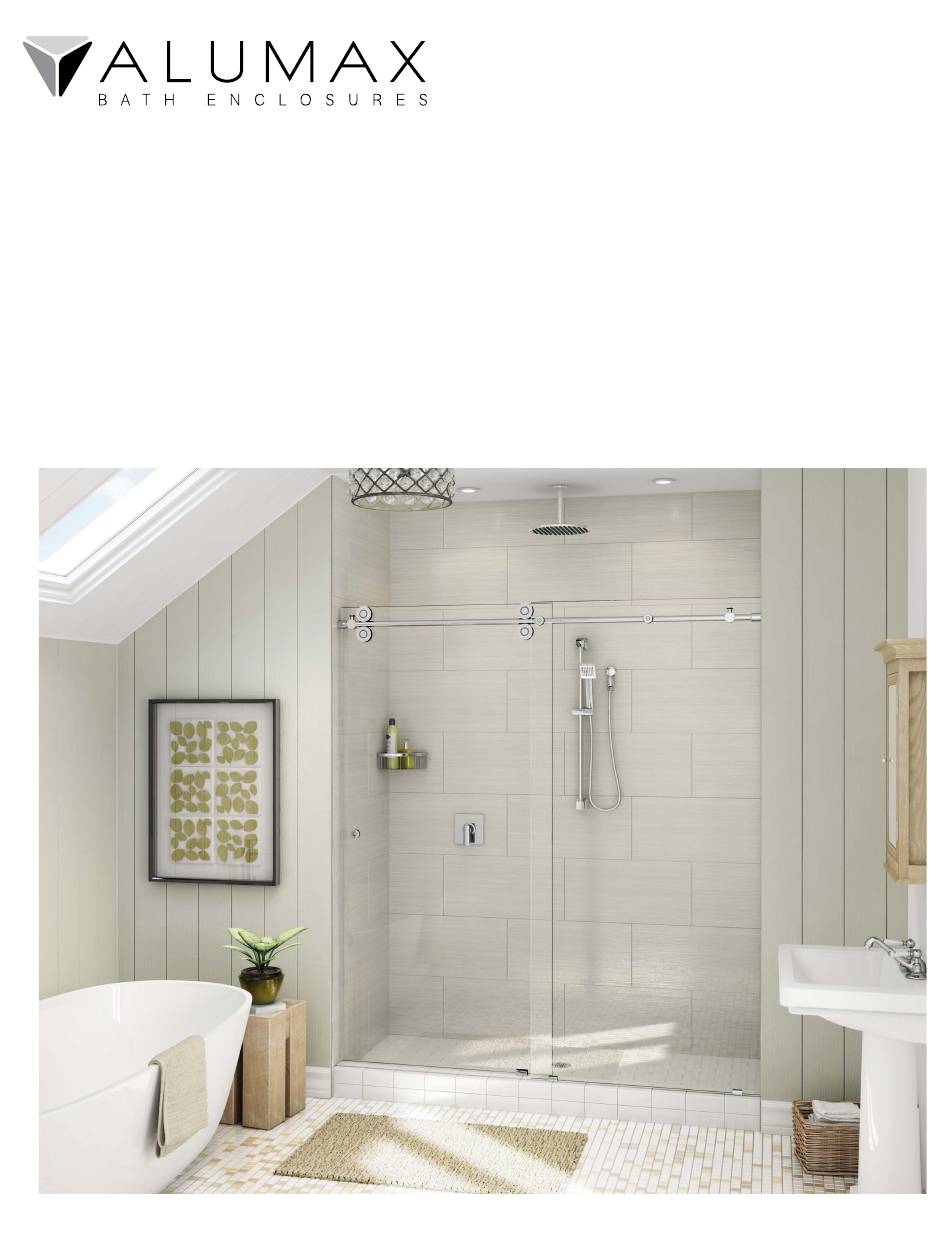

- Page 1 INSTALLATION INSTRUCTIONS ProLine PL60 HEAVY FRAMELESS BYPASS BATH ENCLOSURE Copyright © Alumax Bath Enclosures 2020. All rights reserved. G03980847 9-3-20...
- Page 2 How do You Get Warranty Assistance? To make a claim under the terms of this Limited Warranty, contact your local Alumax Dealer or call or write Alumax Consumer Service at 800-643-1514, 248 W. Greene St., Magnolia, AR 71753. Proof of Purchase and/or Registration of the product is required for warranty coverage.
-
Page 3: Before Beginning Installation
!WARNINGS! Alumax Bath Enclosures by Sapa are intended to be installed by experienced installers. If you need assistance with installation, or locating an experienced installer, contact Alumax Consumer Service at 800‐643‐1514. Ensure that the bath enclosure is installed appropriately. Improper installation can lead to breakage, damage or improper performance of the bath enclosure. Wear safety glasses when drilling or cutting to avoid injury to the eyes. When drilling holes in ceramic tile or marble, use a center punch and hammer to carefully break the surface glaze so the drill can start without skidding. A skidding drill can cause damage to the surface and can be dangerous (risk of personal injury). Use caution and proper technique whenever using tools to avoid damage to property and/or personal injury. Shower doors are not water‐tight. They are designed to prevent leaks under normal shower conditions. Excessive water ... - Page 4 Page 4 of 9...
- Page 5 Notes: This is a two person installation. All marks made on tile, marble or fiberglass should be made lightly in pencil so they can be removed after the installation is complete. An optional method is to use masking tape on the walls and sill that can be removed as the installation progresses.
- Page 6 Fixed Panel Glass Clips – Mark the center point of the sill, along the centerline, established in step one. Make a mark 1/2” over toward the Fixed Panel [F] side and 1” outside of the centerline. Make another mark 2” over from the wall and 1” outside of the centerline. Drill a 1/4” hole at each of these marks.
- Page 7 Door Panel – Notice that the Glass Insert [P] that is used when mounting the Rollers [Q] to the Door Glass [R] has an offset cen- ter hole. Mount the top Rollers to the glass with the offset holes in the Glass Insert to the left or right of the mounting holes.
- Page 8 Fixed Panel Installation - Install the “peel-and-stick” Wall Seal [EE] on the wall side edge of the Fixed Panel. Orient it with the open end to the inside of the enclosure. Lift the Fixed Panel and set it in the Glass Clips with the edge as tight to the wall as possible. Loosen the Set Screws in the wall mount sleeves and slide them over the Wall Mount Blocks.
- Page 9 Finishing Up – Make sure that all fasteners are tight. Clean all exposed marks you made on the sill and walls of the shower stall. Clean the glass panels. Allow 24 hours for any silicone to completely cure, before using your new Alumax Shower Door. Page 9 of 9...
