Guide for installation and use CONFORT PILOT
E
I/O

THERMOSTAT CONTROL

To select the desired [or recommended] temperature:
• Press the [+] or [-] button [A].
- The thermostat indicator light will begin to
flash if the room temperature is lower than the
desired temperature: the appliance will start.
- When the desired temperature has been
reached, the thermostat indicator light [C]
will stop flashing and will burn steadily: the
appliance will stop.
The appliance starts as soon as the room tempera-
ture is lower than the recommended temperature.

ELECTRICAL CONNECTION

Neutral : Grey wire • Phase : Brown wire
Attention: Pilot wire: Black wire with "FIL PILOTE" label.
The pilot wire can be used to reduce the set temperature
when connected to a suitable programmer. The pilot
wire should be insulated and NOT connected to the
earth if this function is not used.
USING THE TIMER TO ADJUST THE
TEMPERATURE
With this function, you can warm up a room or dry
laundry for 2 hours. The appliance thermostat does
not operate during that time [the recommended
temperature indicator light is off].
The timer indicator light will burn until the 2 hours
are over. The appliance will then return to normal
operation [thermostat-control of the room tempera-
ture] when the timer goes out.
To activate the timer:
• Press briefly on the
- The timer indicator light [D] will light up and the
2-hour heating cycle will start.
The timer indicator light will flash until the end
of the cycle.
P16MI380 - A02 - 01/2015.
v2_03_2015_instructions Confort Pilot - A4.indd 1
After connecting your appliance to the electrical installation,
put the switch located at the back of the control on the [I]
position to turn it on.

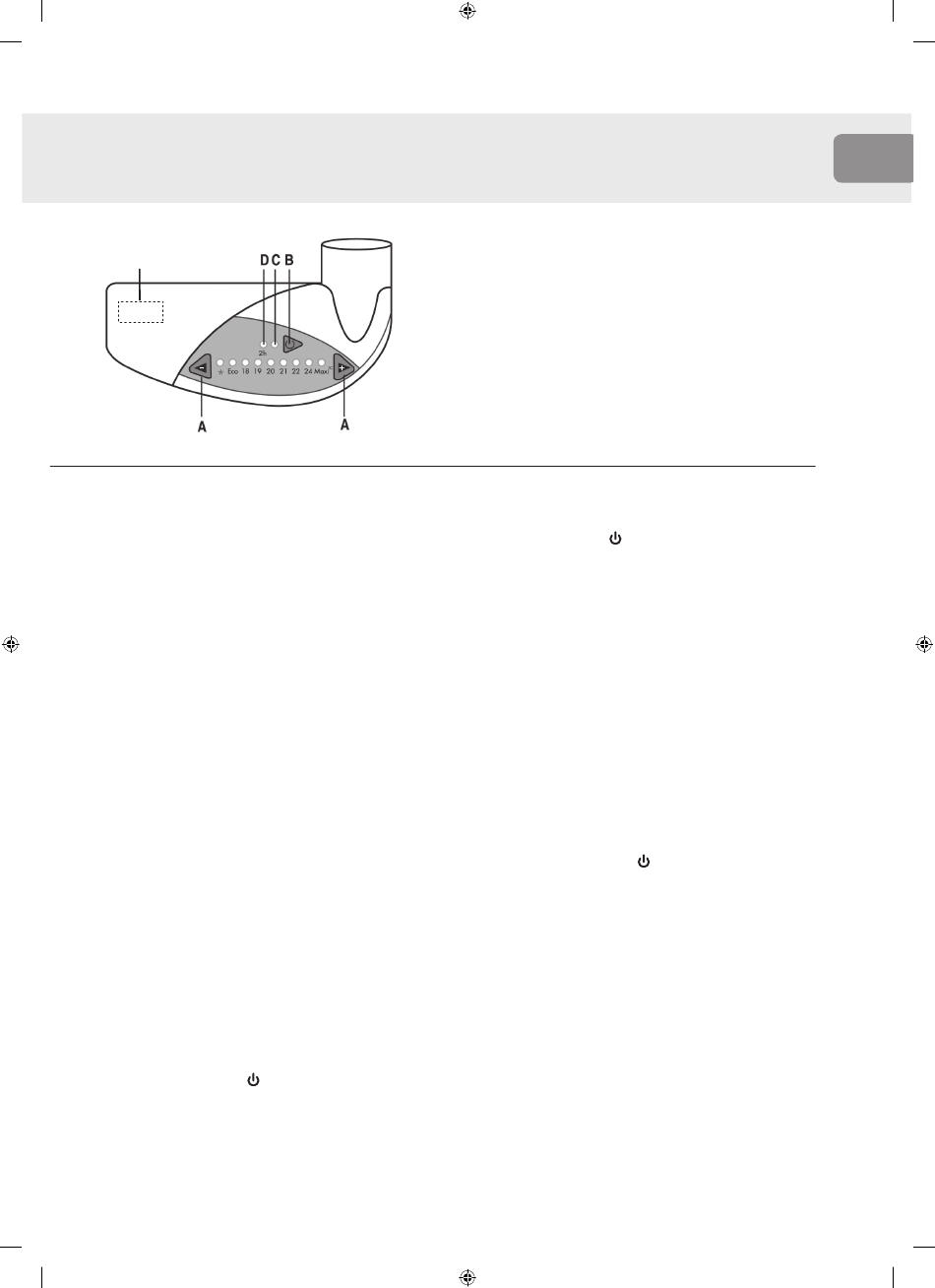

Function buttons:

A
B
C
D
E
button:
Temperature control [indicator light colours: frost
outside [*] - yellow; ECO - green; 18°C to max. - red].
Used to engage the "Confort Pilot" function.
ON/stand-by button, thermostat and 2-hr. timer.
Radiator control light [green indicator light].
Indicator light for the 2-hr timer [red indicator light].
[I/O] switch.
Note
You can interrupt the timer at any time by pressing 2
times quickly on the button.
To activate the "Confort Pilot" function:
With this function, you can programme the timer to
repeat a specific heating function every day at the
same time.
• Activate the timer [as explained below].
• Press on the desired time by pressing the [+] but-
ton for 5 seconds to register that you are activating
it [the red indicator light will flash].
- The heating will start immediately for 2 hours
and will repeat after 23.15 hours and thereafter
every 24 hours.
Example: on the 1st morning, the user pushes the
[+] button for 5 seconds at 7.00 o'clock in timer
mode. The next day, and for every day thereafter, the
appliance will start at 6.15 a.m. and run for 2 hours.
Note:
• You can interrupt the timer at any time by pressing
2 times quickly on the
• To cancel the programme, press the [+] button in
timer mode for 5 seconds.

TURNING OFF THE DEVICE

Put the switch located at the back of the control on
the [O] position.

CALIBRATING THE THERMOSTAT

A difference of 1° C to 2° C between the reference
temperature on the housing and the temperature
that is measured by a thermometer is normal.
If you want those 2 values to be identical, you can do
the following:
• Measure the room temperature with a thermo-
meter;
button.
