Barska Winbest BC575 Manual

Pursuit edition metal detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

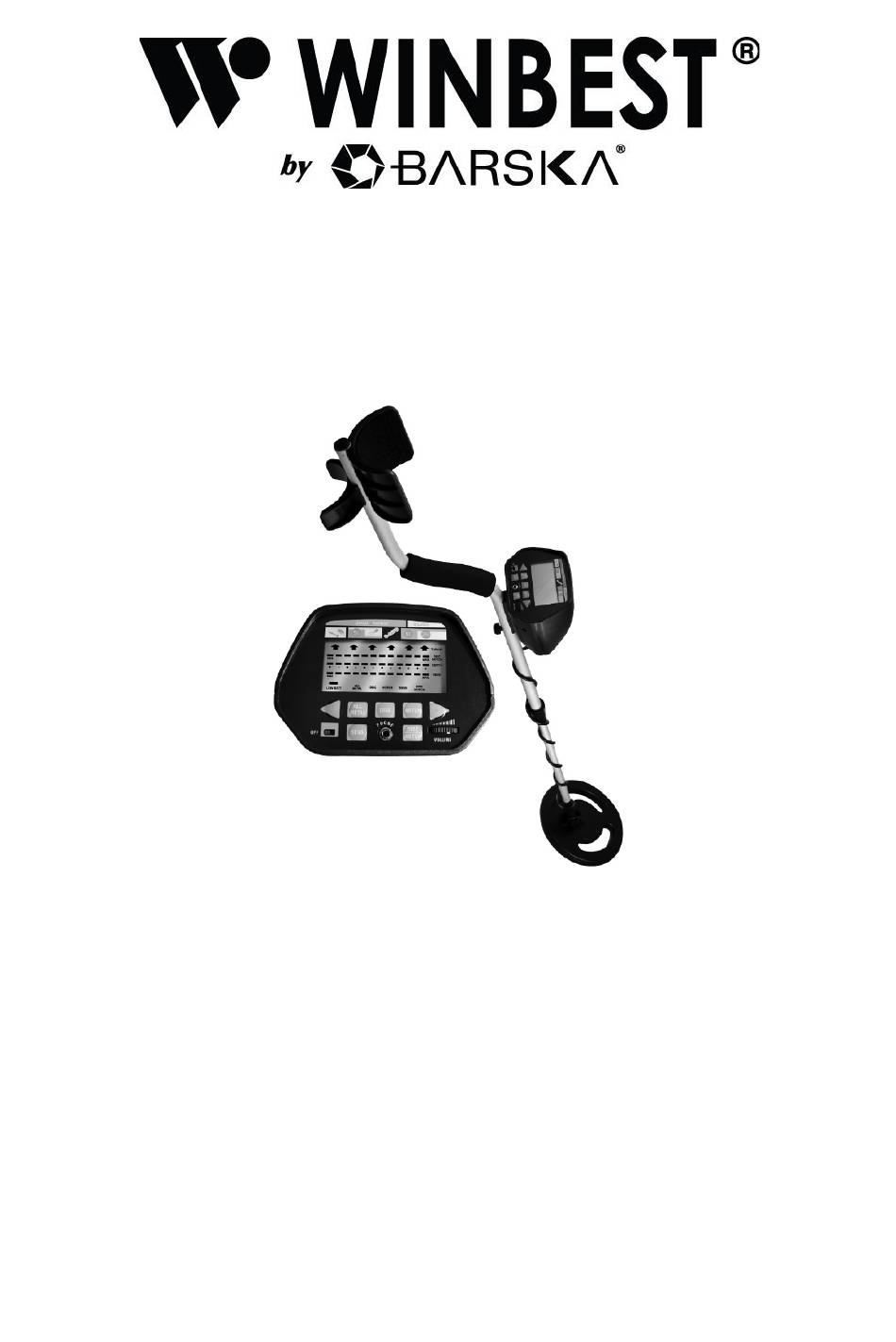

Pursuit Edition Metal Detector
LCD Display
Probable type of metal, depth of the
target, operating mode and low battery
indication
Three Tone Audio
Distinctive tones for different types of
metal
Super Slow Sweep Identification
With a very slow sweep discriminate
different metals
BC575
Notch Setting
Ignores junk metal
Headphone Jack
Connect headphones (not supplied)
Waterproof Search Coil
Use the detector in shallow water
Operates on two 9-volt alkaline
batteries (not supplied)
www.barska.com
8/18

Advertisement

Table of Contents
loading

Related Manuals for Barska Winbest BC575

Summary of Contents for Barska Winbest BC575

  • Page 1 Three Tone Audio Distinctive tones for different types of Waterproof Search Coil metal Use the detector in shallow water Super Slow Sweep Identification Operates on two 9-volt alkaline With a very slow sweep discriminate batteries (not supplied) different metals www.barska.com BC575 8/18...

  • Page 2: Table Of Contents

    Notes Before Use - This metal detector is a professional metal detector. As a sophisticated electronic device, the most difficult aspects in metal detecting have been preset. - If you are new to using metal detectors, it is recommended to set the sensitivity to a low level in the event of false signals.

  • Page 3: Preparation

    Notch Assembling Notching is the elimination of an item, or range of items, within the metallic spectrum. We “notch-out” an object, or objects, selectively. Assembling your detector is easy and requires no special tools. Relic A relic is an object of interest by reason of its age or its association with the past. Many relics are made of iron, but can also be made of bronze or precious metals.
  • Page 4 2. Unscrew the knobs on the search coil (4) and remove the knob and the bolt. Insert Caution: the lower stem (2) and align the holes on the search coil bracket and the stem. • The search coil cable plug fits into the connector only one way. Push the bolt through the holes, and then replace and tighten the knob.

  • Page 5: Using The Headphones

    USING HEADPHONES FUNCTIONS AND INDICATIONS 1. Control Panel 2. DISPLAYS 1. Insert the headphone’s 3.5mm plug into the PHONE jack. The detector’s internal speaker disconnects when you connect the headphones. The indicator of target includes target icons and LCD displays and is located at the 2.

  • Page 6: Tones

    Notes: • When you set the detector to DISC or NOTCH mode, the detector sounds a medium or high tone when it detects highly oxidized iron. An arrow appears in medium or high tone area. • Depending on the quality, about 15 percent of gold rings cause the detector to sound a medium tone.

  • Page 7: Search Coil Sweeping Hints

    3. Search Coil Sweeping Hints If you want to choose the target range from MAX to MIN, you need to press DISC/ NOTCH first and press + or – keys to adjust the range. The cursor bars under target • Never sweep the search coil as if it were a pendulum. Raising the search coil while range will show which metal objectives you may eliminate or select.

  • Page 8: Adjusting Sensitivity

    4. Adjusting SENSITIVITY 4. When in DISC or NOTCH mode, evenly sweep the nail 2-3 inches above the flat After you become familiar with how your detector works, it’s important to fine tune face of the search coil. The detector will emit a low tone and the arrow pointing to the sensitivity to get a good effect.

  • Page 9: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Care and Maintenance Handle the detector gently and carefully. Dropping it can damage circuit boards and Problem Reason Suggestion can cause the detector to work improperly. The detector may receive interference and false Use the detector only in normal temperature environments. Temperature extremes signal from broadcast Change searching place can shorten the life of electronic devices, causing internal damage to the detector.

  • Page 10: Warranty

    1 YEAR LIMITED WARRANTY Metal Detector WINBEST® by BARSKA®, as manufacturer, warrants this new product to be free of original defects in materials and/or workmanship for the length of time specified by this warranty. This warranty does not include damage caused by abuse, improper handling, installation, maintenance, normal wear-and-tear, unauthorized repairs or modifications and tampering in anyway.
