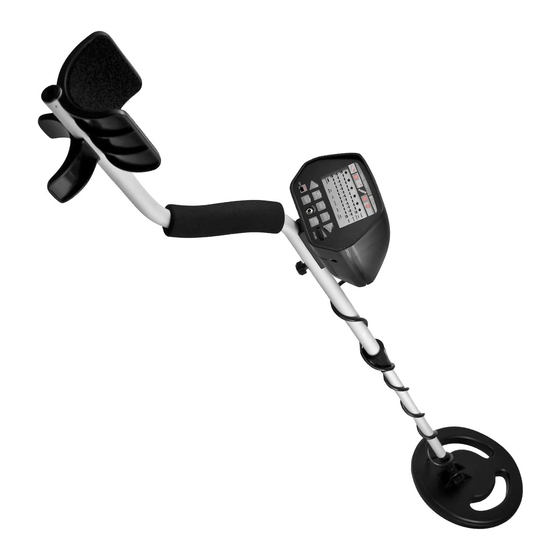

Elite Edition Metal Detector
LCD Display—probable type of metal,
depth of the target, operating mode and
low battery indication
Three Tone Audio—distinctive tones for
different types of metal
Super Slow Sweep Identification—with a
very slow sweep discriminate different metals
Notch Setting—ignores junk metal
Headphone Jack— connect headphones
(not supplied).
Waterproof Search Coil—use the detector
it shallow water

Advertisement

Table of Contents
loading

Related Manuals for Barska WINBEST Elite Edition

Summary of Contents for Barska WINBEST Elite Edition

  • Page 1 Elite Edition Metal Detector Notch Setting—ignores junk metal LCD Display—probable type of metal, depth of the target, operating mode and Headphone Jack— connect headphones low battery indication (not supplied). Three Tone Audio—distinctive tones for Waterproof Search Coil—use the detector different types of metal it shallow water Super Slow Sweep Identification—with a very slow sweep discriminate different metals...

  • Page 2: Table Of Contents

    Operates on two 9-volt alkaline batteries (not supplied). CONTENTS Features……………………………………………………………………... Preparation Assembling the detector………………………………………………… Installing the batteries…………………………………………………… Using headphones……………………………………………………….. Listening safely…………………………………………………………… Functions and indications Parts of the control box…………………………………………………… Displays…………………………………………………………………… Tones……………………………………………………………………… Operation Turning on the detector………………………………………………… Setting the operation mode……………………………………………… Testing and using the detector…………………………………………..

  • Page 3: Features

    With your metal detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector is versatile and easy to use, features include: LCD Display—shows the probable type of metal with an arrow, the depth of the target, DISC/NOTCH range, the level of SENS with segment, the operating mode, and low battery indication.

  • Page 4: Preparation Assembling The Detector

    TREASER HUNTER’S CODE OF ETHICS A few basic rules you should follow while using your detector • Always get permission before searching any site • Respect the rights and property of others • Observe all national, state and local laws when treasure hunting •...

  • Page 5: Installing The Batteries

    Unscrew the knob on the search coil and remove the knob connector. Insert the stem and align the holes on the search coil bracket and the stem. Push the connector through the holes and tighten the knob. Wind the search coil cable around the stem. Leave enough slack in the cable.

  • Page 6: Using Headphones

    1. Slide the POWER button to turn on the power. 2. Slide the left and right battery covers off in the direction of the arrow. 3. Place a 9V battery into the battery compartment matching the polarity symbols (+ and -) marked inside. Caution: •...

  • Page 7: Functions And Indications

    FUNCTIONS AND INDICATIONS 1. Parts Of The Control Box 2. DISPLAYS The indicator of target includes target icons and LCD displays and is located at the top of the detector. It can indicate coins of different type, gold, silver etc. When the detector detects an object, an arrow appears below the target icon of probable type of metal being detected.
  • Page 8 • Since the indications are approximations, the detector might not have actually found the item it indicates. The indicator is only a visual reference to help you decide if an item is worth perusing. TARGET INDICATION METAL ICONS DISC/NOTCH RANGE SENSITIVITY LEVEL DEPTH LOW BATT...

  • Page 9: Tones

    TONES If the detector is set to the ALL METAL target mode, it sounds a single tone when it detects any type of metal. If you set the detector to the DISC or NORTCH modes, the built in audio identification system sounds a unique audio tone for each of three categories of metal.

  • Page 10: Setting The Operation Mode

    2. SETTING THE OPERATION MODE The detector comes with three operating modes ALL METAL, DISC, NOTCH. You can select the desired mode by relative touch key. a. ALL METAL—used for detecting any type of metal. When the detector detects any type of metal, it sounds a tone b.

  • Page 11: Outdoor Testing And Use

    4. Adjust the search coil so the flat part points towards the ceiling. 5. Slowly sweep a sample of the material you want the detector to find (such as a gold ring or a coin) 2-3 inches or more above the face of the search coil.

  • Page 12: Search Coil Sweeping Hints

    Search Coil Sweeping Hints: • Never sweep the search coil as if it were a pendulum. Raising the search coil while sweeping or at the end of a sweep will cause false readings. • Sweep slowly hurrying will cause you to miss targets.

  • Page 13: Application Hints

    Note: In order to detect the target deeply buried, you can adjust the SENS to a high position. But do not set the level of SENS to Max position, or the detector will receive interference and false signal from a broadcast antenna and other electronic lines.

  • Page 14: Factors That Affect The Detecting

    Factors That Affect The Detecting It’s difficult to have an accurate detecting result. Sometimes the detecting may be restricted by some factors. Conditions For The Target Being Detected • The angle of the target buried in the soil. • The depth of the target. •...

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE Your metal detector is an example of superior design and craftsmanship. The following suggestions will help you care for your metal detector so you can enjoy it for years. Handle the detector gently and carefully. Dropping it can damage circuit boards and cases and can cause the detector to work improperly.

  • Page 16: Warranty

    BC192...
