Command access PD10-UL-M-KIT Insert Instructions page 6

i
n s Ta l l aT i o n

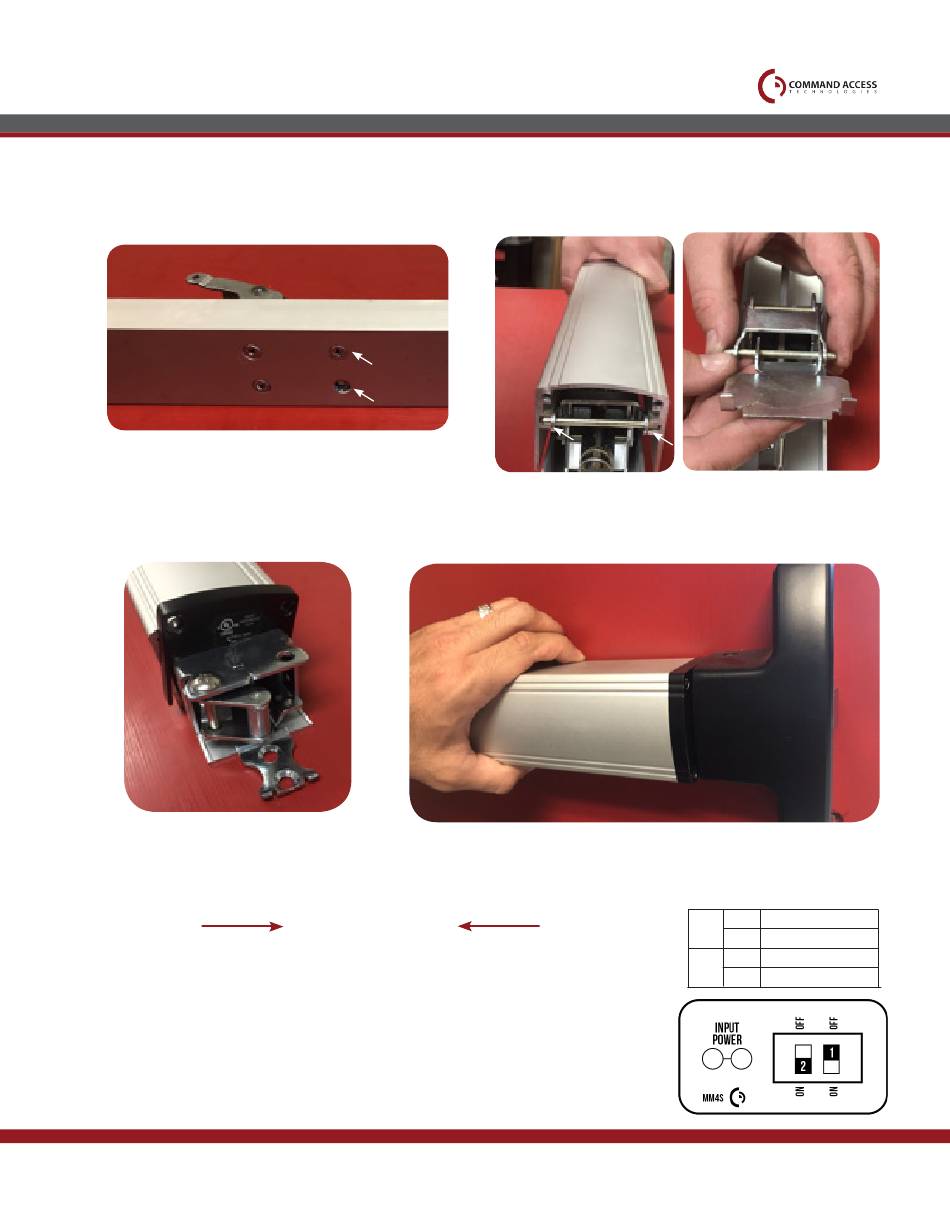

12. Install (2) screws provided based
on finish of your device to secure
motor to exit device housing.
14.
Re-install (2) screws securing the push
pad end caps on the front & back.
Make sure to set PTS before finishing installation
Step 1-
Select your preferred torque mode (ships in standard torque) Press the device push pad
to the desired setting. (Recommend to fully depress and release 5%, giving the device
room for changing door conditions.)
Step 2-
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3-
Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped,
release the pad and now the adjustment is complete. If not to your liking repeat the 3 steps.
Step 4-
Once you found the correct location, turn PTS switch to OFF position.
U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2
1
2
Setting PTS
**Important Info**
i
n s T r u c T i o n s
13. Re-install top pins on both activing brackets
and slide on the push pad making sure pins
are in the proper channel.
15. Set the "Push to Set Adjustment" following the
steps below.
MM4 Switches
OFF
STANDARDTORQUE
1
ON HIGH TORQUE
ON
PTS PROGRAMING On
2
OFF
PTS Programing Lock
