Prestige Floor Stand

Kit Part Number: PSSTND06

Parts List

1. (2) Leg Component A

2. (2) Leg Component B

3. (2) Side Frame Component C

4. (2) Side Frame Component D

5. Rail Component A

6. Rail Component B

7. Rail Component C

8. Rail Component D

9. (4) Level / Rubber Feet

10. (8) Retaining Clip Style A (not shown)

11. (6) Retaining Clip Style B (not shown)

Recommended Tools:

Tape Measurer

WARNING

Installation of the stand and boiler must be on a level foundation. Check and ensure floor loca-

tion is level. If the desired location is not level and the leveling feet are extended to maximum

height, a concrete foundation must be constructed. Do not use bricks, shims or other means to

level the stand prior to installing the boiler as this could potentially lead to an unstable condi-

tion for the boiler installation.

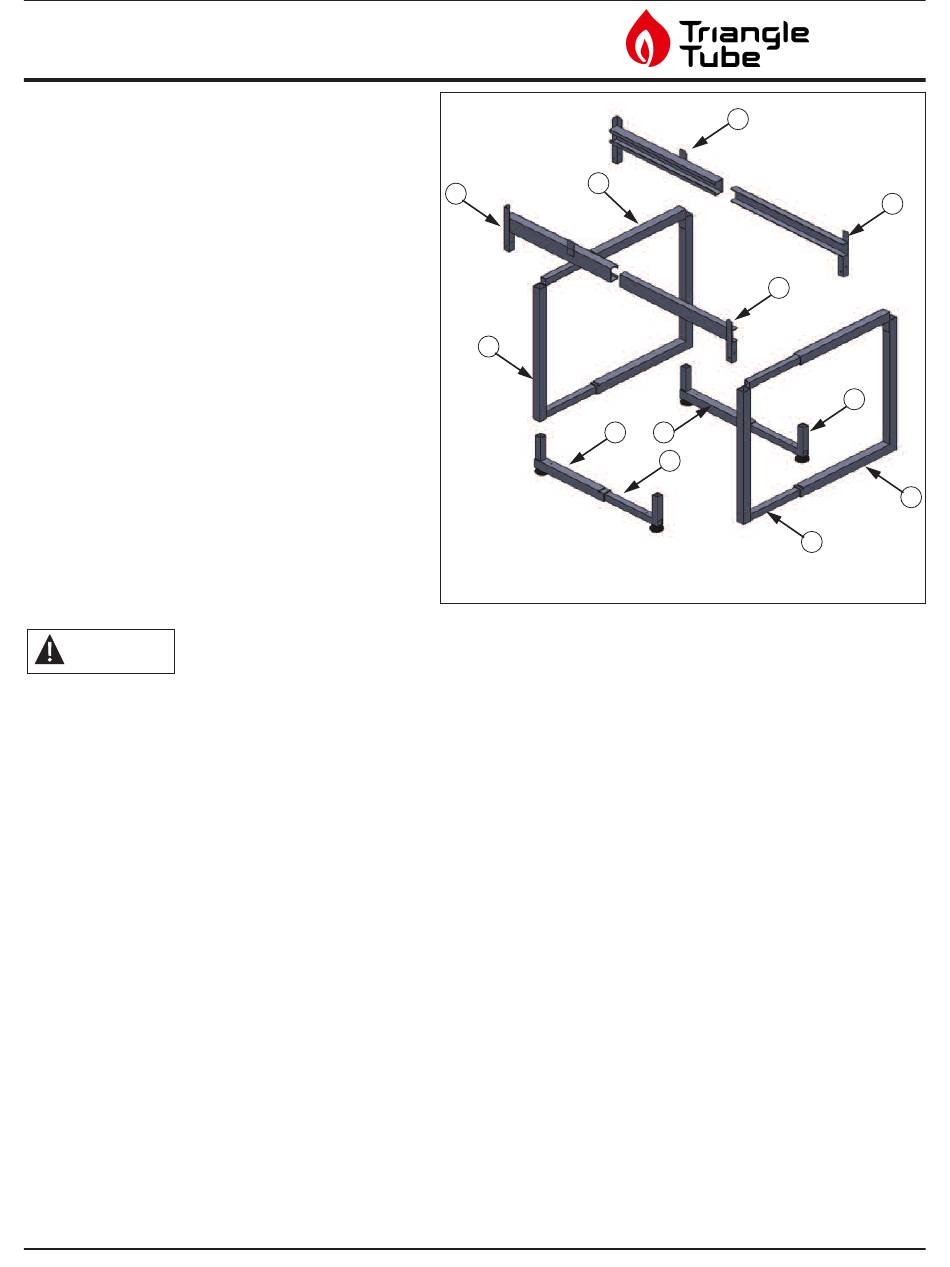

Exploded View

Need help?

Do you have a question about the PSSTND06 and is the answer not in the manual?

Page 1 Prestige Floor Stand Kit Part Number: PSSTND06 Parts List 1. (2) Leg Component A 2. (2) Leg Component B 3. (2) Side Frame Component C 4. (2) Side Frame Component D 5. Rail Component A 6. Rail Component B 7. Rail Component C 8.
Page 2 Prestige Floor Stand Stand Assembly Instructions 4. The Leg Component A and Leg Component B will insert and assemble as shown in Figure 4. 1. Unpack the pre-assembled side frame compo- With the side frame components, the base frame nents. The side frame should be locked togeth- assembly is completed as shown in Figure 5.
Page 3 Prestige Floor Stand Fig. 5: Completion of Leg-Components to side Frames Fig. 6: Rail Component to Side Frame Assembly 6. Use Table 1 to proper set the leg dimensions for Boiler Mounting the appropriate boiler. As shown in Fig. 8. Table 1: BEST PRACTICE Left to Right...
Page 4 Prestige Floor Stand WARNING Use extreme care not to drop the boiler or cause bodily injury while lifting / mounting the boiler onto the stand. Once mounted ver- ify the boiler sits securely onto the stand level and without rocking. Failure to comply could result in property damage, personal injury or death.
