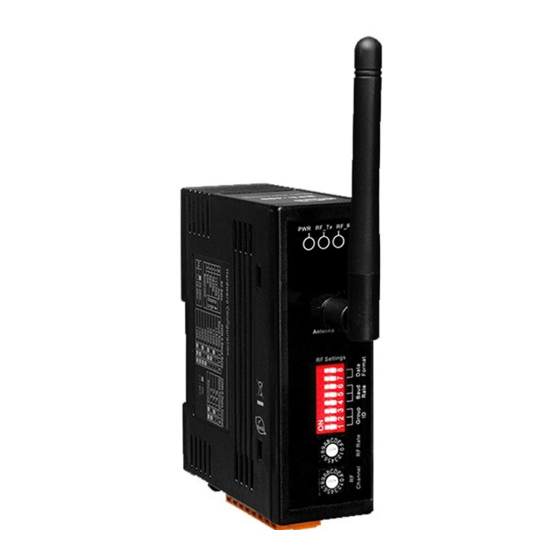

Wireless radio modem & external antenna (28 pages)
Summary of Contents for ICP DAS USA RFU-400
Page 1
RFU-400 FAQ Q1、How to increase communication distance of RFU-400? (2016/12/16, Ming) ....2 Q2、Why some time RFU-400 would receive the data of others channel? (2016/12/16, Ming) ..............................2 Q3、Is there a repeater available for RFU-400 / RFU-433? (2019/11/12, Ming) ..... 3 Q4、Is RFU-400 / RFU-433 possible to communicate with RS-485 device in repeater mode?
Page 2
Use the following diagram architecture: Using two RFU-400s, connect their RS-232 or RS-485 to each other, as shown in the middle of the figure above. So that you can form a group of RFU-400 repeaters to extend the wireless communication distance.
Page 3
Ming) Ans.: Only switch the DIP 7 and 8 (Data Format) of the RFU-400 / RFU-433 to ON and then power on it. The RFU-400 / RFU-433 module will have repeater function. Please note that, the repeater function only supports one hop and not supports repeater to repeater.
