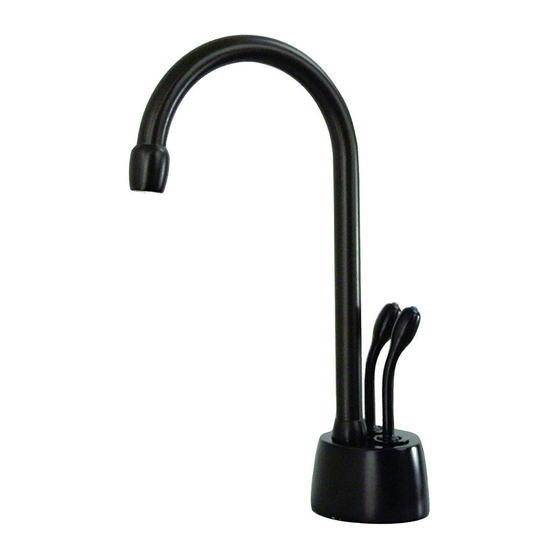

WESTBRASS D-272 Installation

INSTALLATION - D272 or D262
FLT-1
Water Filter
(Optional)
NOTE: Flex lines are color coded with red, black or
blue tape. The Blue and Black color coded Lines are
the lines directly under the hot and cold handles.

Step 1 - Mount to Sink

Remove mounting nut, washer and support plate from
threaded mounting tube.
Insert lines through 1-3/8" hole in sink or counter.
From underneath sink, slide support plate, washer and
mounting nut over flexible rubber tube and threaded mounting
tube.
Tighten the mounting nut to secure.
Do not over-tighten.

Step 2 - Connect to Hot Water Dispenser

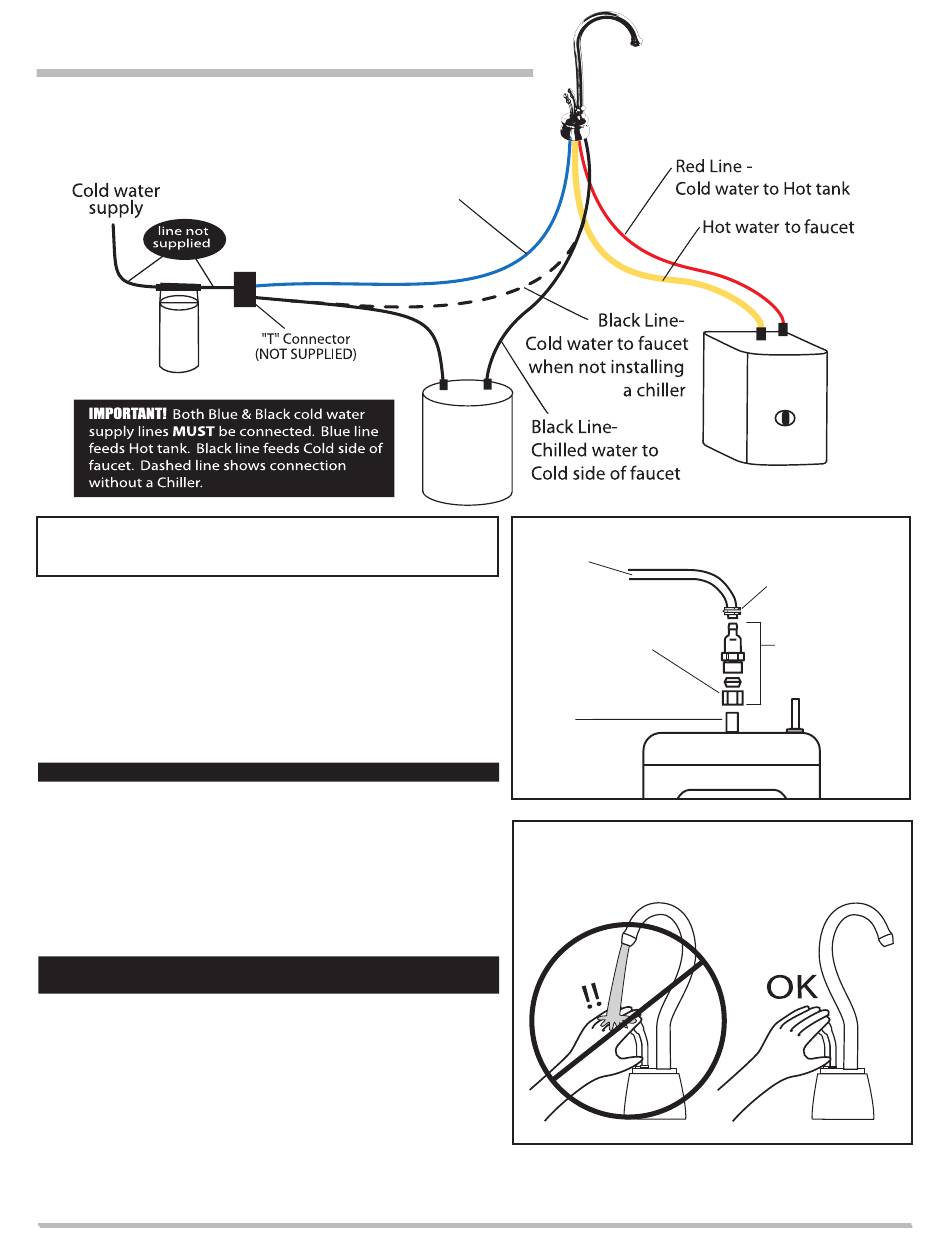

Refer to tank installation instructions and illustration above to
connect the Red line from the faucet to the rear corner inlet
tube on top of the tank using the provided coupling.
Connecting to Chiller, Filter, etc. to Cold Water Supply
Refer to appliance installation instructions and illustration
above for chiller and/or filter connections.
NOTE: Both Blue and Black lines MUST be connected
to incoming water. See illustration above.

Step 3 - Connecting to Cold Water Supply

Connect Blue line to cold water supply. Refer to tank
instructions for connecting to water supply line.
Do not plug in tank prior to completing installation.
Please refer to tank instruction sheet.
WARRANTY: Quick & Hot Faucets are warranted for 1 year
from the date of purchase.
Go to www.westbrass.com or call (800) 392-7277
for further details.
Blue Line:
Cold Water Supply
for Hot Tank
IWC-1
Water
Chiller
(Optional)
Faucet connection to center outlet of hot water tank
White or
Clear Line
Tighten compression
nut to clamp fitting to
tank outlet tube.
Do not overtighten.
center
outlet
WARNING!
Direct faucet spout away from handles to avoid
serious burn.
tank
WESTBRASS
2429 E Olympic Blvd. Los Angeles, CA 90021
QHT-1
Hot Tank
(Required)
Clamp
Hose connector -
provided with this
faucet.
Fine Decorative Plumbing Since 1935
