Desco 19430 Installation, Operation And Maintenance

Digital Static Locator
Installation, Operation, and Maintenance

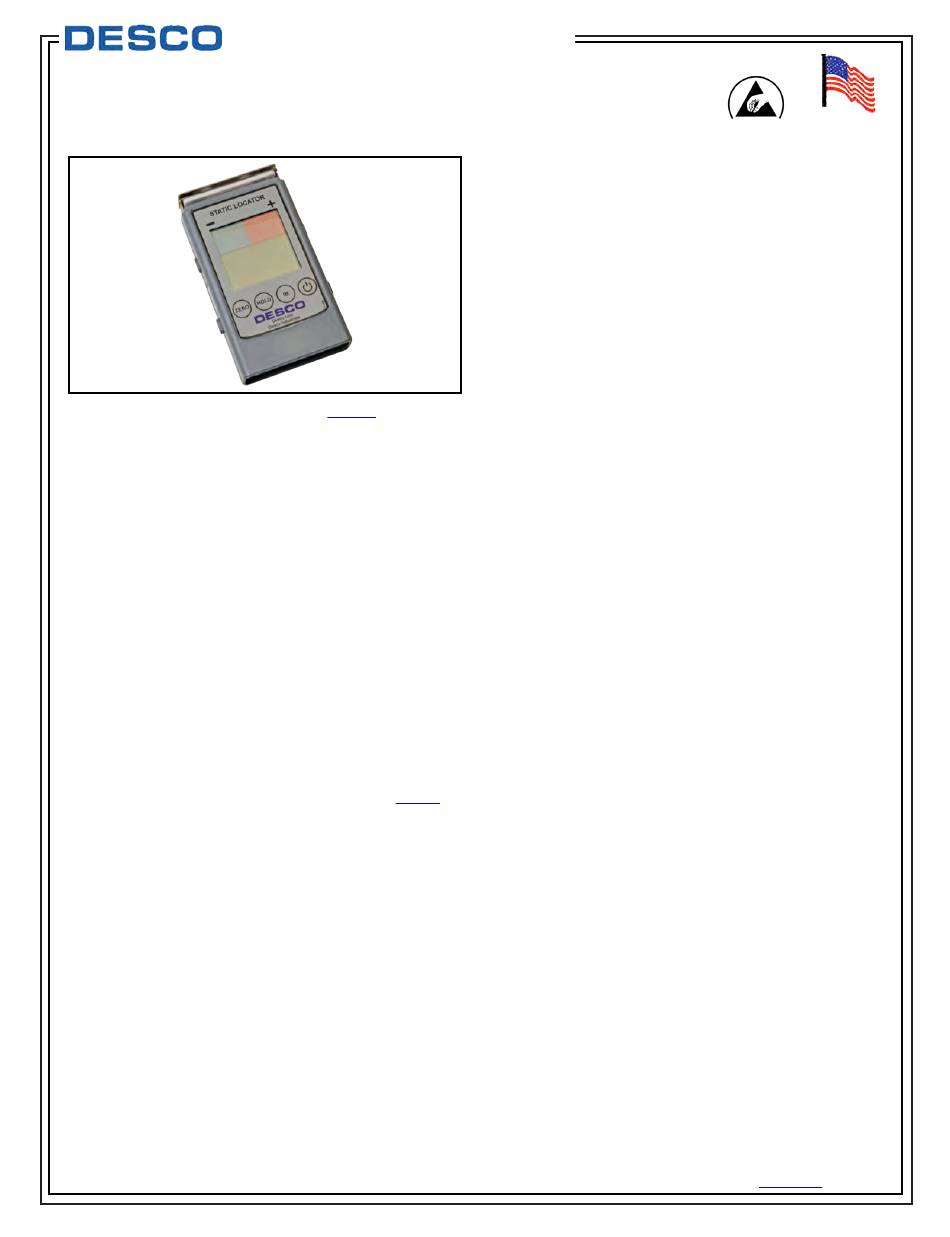

Figure 1. Digital Static Locator Item
Description

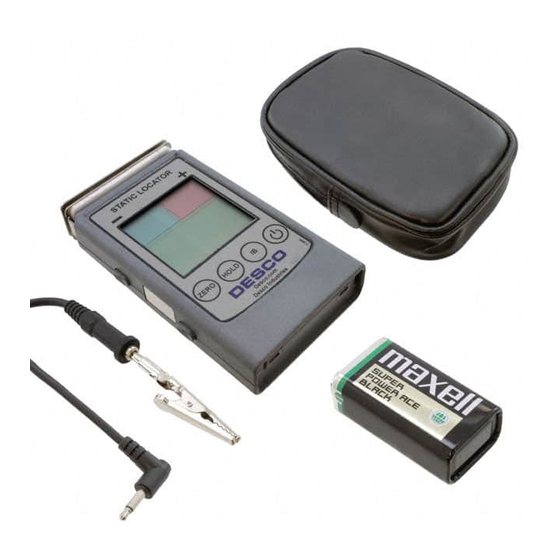

Desco's Digital Static Locator is a compact
electrostatic fieldmeter used for locating and measuring
static charges. Its pocket size makes it handy to use
and four button operation makes it easy to operate.
The Digital Static Locator measures static voltages
within ±20kV (20,000V) at a distance of 1". Results
are simultaneously displayed numerically and in bar
graph format. POWER on/off, ZERO adjustment, Ion
Balance (IB) and HOLD are all push button operation.
The HOLD button allows the display to retain the static
charge reading. This is especially useful where display
is difficult to see during measurement.
Two LED guide ring lights help position the fieldmeter at
the right distance from a charged test object. The
conductive case and ground snap facilitate grounding
for accurate measurement. The circuitry of the
has been designed to make measurements in areas
using air ionization.
Features
• Easy to read, easy to use operations
• Lightweight, compact design
• Range light assures accurate and repeatable
measurements
• Automatic range switching up to ±20kV (20,000V) at 1"
(25mm)
• Digital and bar graph display
• Automatic power off after five minutes (may be
disabled if preferred)
DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178 • Fax (909) 627-7449
DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Fax (781) 575-0172 • Web Site:
TB-3048 March 2011 Page 1 of 5
TECHNICAL BULLETIN TB-3048
#19430
19430
Specifications
Measuring range: 0 to ±1.49 kV (Lo range)
± 1.0 kV to ± 20.0 kV (Hi range)
(Range hysteresis: ± 1.0 kV to
± 1.5 kV)
0 to ± 200 V (Ion Balance
measuring range)
Measuring distance: 1"±1/64" (25mm ± 0.5mm); LEDs
guide for correct distance
(between charged object and
fieldmeter)
Response time: <1 s
LCD display
renewal rate: 5 times/s
Accuracy: 20KV ± 10 %
Ambient conditions: 50º-100ºF, (10º - 40ºC); 0 - 60
%RH (non-condensing)
Bar graph; red LCD positive
Display features:
polarity voltage, blue LCD
negative polarity voltage
Bar graph
precision: ±0.1 kV for low range ±1.5 kV for
high (Hi) range; ±15 V for ion
balance range
Auto-ranging, three digits . = 0 to
Digital reading:
±1.49 kV . = ±1.0 kV to
±20.0kV (Hi) = 0 to 200 (Ion
Balance)
Ion Balance mode display: [IB] is displayed
Battery capacity display indicator
HOLD switch to retain display after measurement
Error sign [Error] appears if the sensor is damaged
Beep sound will be heard during
Alarm feature:
the following actions:
Power on: one beep
Power on with Auto Off feature disabled: [Depress
power button for more than 3 seconds] three beeps
Auto power-off: short beeps at 1 second interval for 5
seconds before power off
Over range: Continuous sound
Made in America
