Desco TB-3081 Technical Bulletin

Desco TB-3081 Technical Bulletin

Body voltage meter

Advertisement

Quick Links

Body Voltage Meter
Installation, Operation and Maintenance

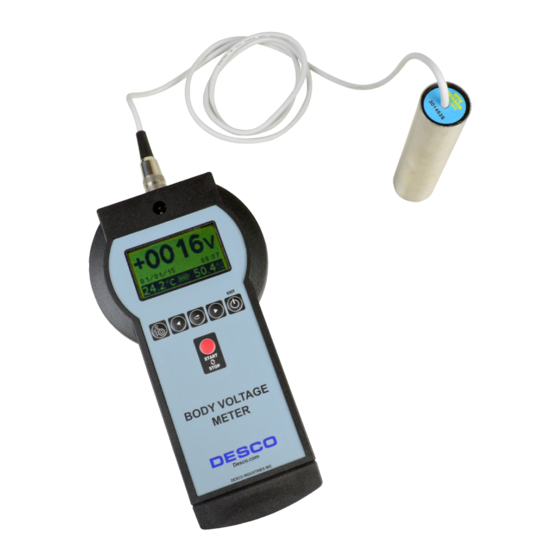

Figure 1. Desco 19431 Body Voltage Meter

Description

The Desco
19431
Body Voltage Meter is a portable
measuring system that allows analysis of charge levels
accumulated on the human body according to ANSI/
ESD STM97.2. The Body Voltage Meter measurement
may be logged using internal memory. Logged
measurements can be exported and further reviewed on
a PC. Graphs of measurements can be displayed on the
LCD display for quick evaluation.
Each Body Voltage Meter is calibrated with accepted
procedures and standards traceable to the National
Institute of Standards and Technology (NIST) and
includes a NIST certificate.
TB-3081 Page 1 of 6
September 2021
TECHNICAL BULLETIN TB-3081
"A compliance verification plan shall be established to
ensure the organization's fulfilment of the requirements
of the plan. Process monitoring (measurements) shall be
conducted in accordance with a compliance verification
plan that identifies the technical requirements to be
verified, the measurement limits and the frequency at
which those verifications shall occur. The compliance
verification plan shall document the test methods
used for process monitoring and measurements. If the
organization uses different test methods to replace
those of this standard, the organization shall be able
to show that the results achieved correlate with the
referenced standards. Where test methods are devised
for testing items not covered in this standard, these shall
be adequately documented including corresponding
test limits. Compliance verification records shall be
established and maintained to provide evidence of
conformity to the technical requirements. The test
equipment selected shall be capable of making the
measurements defined in the compliance verification
plan." (EN 61340-5-1 clause 5.2.4)

Packaging

1 Body Voltage Meter
1 Walking Test Probe
1 Black 8-Pin DIN to USB Cable, 1.8 m long
1 Black Ground Cord with Crocodile Clip, 5 m long
1 Lanyard with Hook
1 Certificate of Calibration
5 Commonwealth Ave
5 Commonwealth Ave
Woburn, MA 01801
Woburn, MA 01801
Phone 781-665-1400
Phone 781-665-1400
Toll
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Free 1-800-517-8431

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB-3081 and is the answer not in the manual?

Questions and answers

Summary of Contents for Desco TB-3081

  • Page 1 The test equipment selected shall be capable of making the measurements defined in the compliance verification plan.” (EN 61340-5-1 clause 5.2.4) Figure 1. Desco 19431 Body Voltage Meter Packaging Description 1 Body Voltage Meter 1 Walking Test Probe...
  • Page 2 Start / Stop button to increase the value. NOTE: AUTO range is only available for saved graphs. Figure 2. Body Voltage Meter features and components Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801 - TestEquipmentDepot.com TB-3081 Page 2 of 6...
  • Page 3 Press the Start / Stop button to enter the selected mode. Press the Exit button to exit the selected mode. Deletes last or all saved graphs. Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801 - TestEquipmentDepot.com TB-3081 Page 3 of 6...
  • Page 4 4. To stop the measuring process, press the Start / Stop or Exit buttons. 6. The meter is now ready for use. Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801 - TestEquipmentDepot.com TB-3081 Page 4 of 6 © 2021 DESCO INDUSTRIES INC Employee Owned...
  • Page 5 Press Start / Stop button to save or the Cursor button and Start / Stop button to discard the graph. Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801 - TestEquipmentDepot.com TB-3081 Page 5 of 6 © 2021 DESCO INDUSTRIES INC Employee Owned...
  • Page 6 6 alkaline batteries, and close the battery Country of Origin Italy compartment. Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801 - TestEquipmentDepot.com TB-3081 Page 6 of 6 © 2021 DESCO INDUSTRIES INC Employee Owned...
