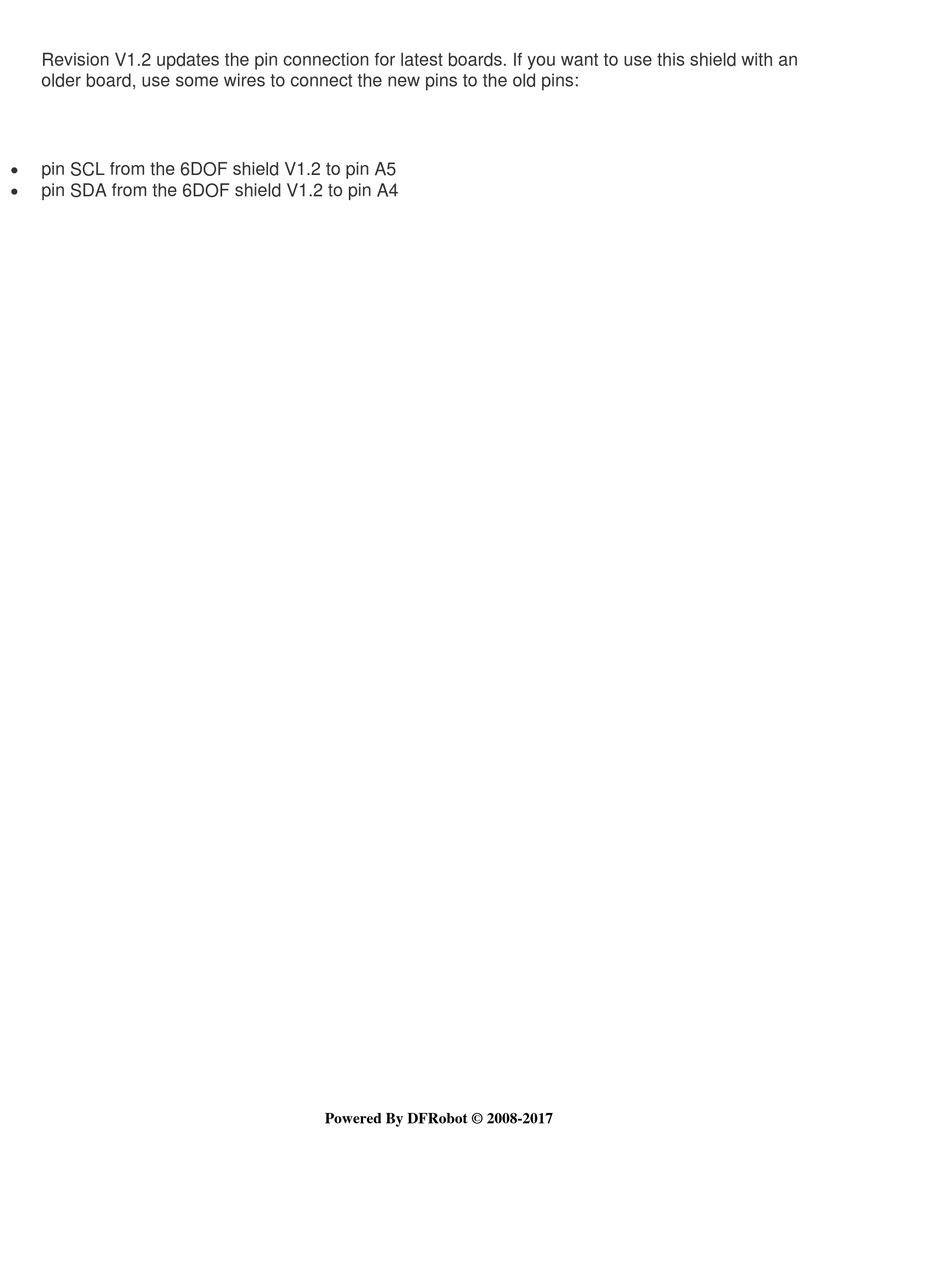

Revision V1.2 updates the pin connection for latest boards. If you want to use this shield with an
older board, use some wires to connect the new pins to the old pins:
pin SCL from the 6DOF shield V1.2 to pin A5
pin SDA from the 6DOF shield V1.2 to pin A4
Powered By DFRobot © 2008-2017
