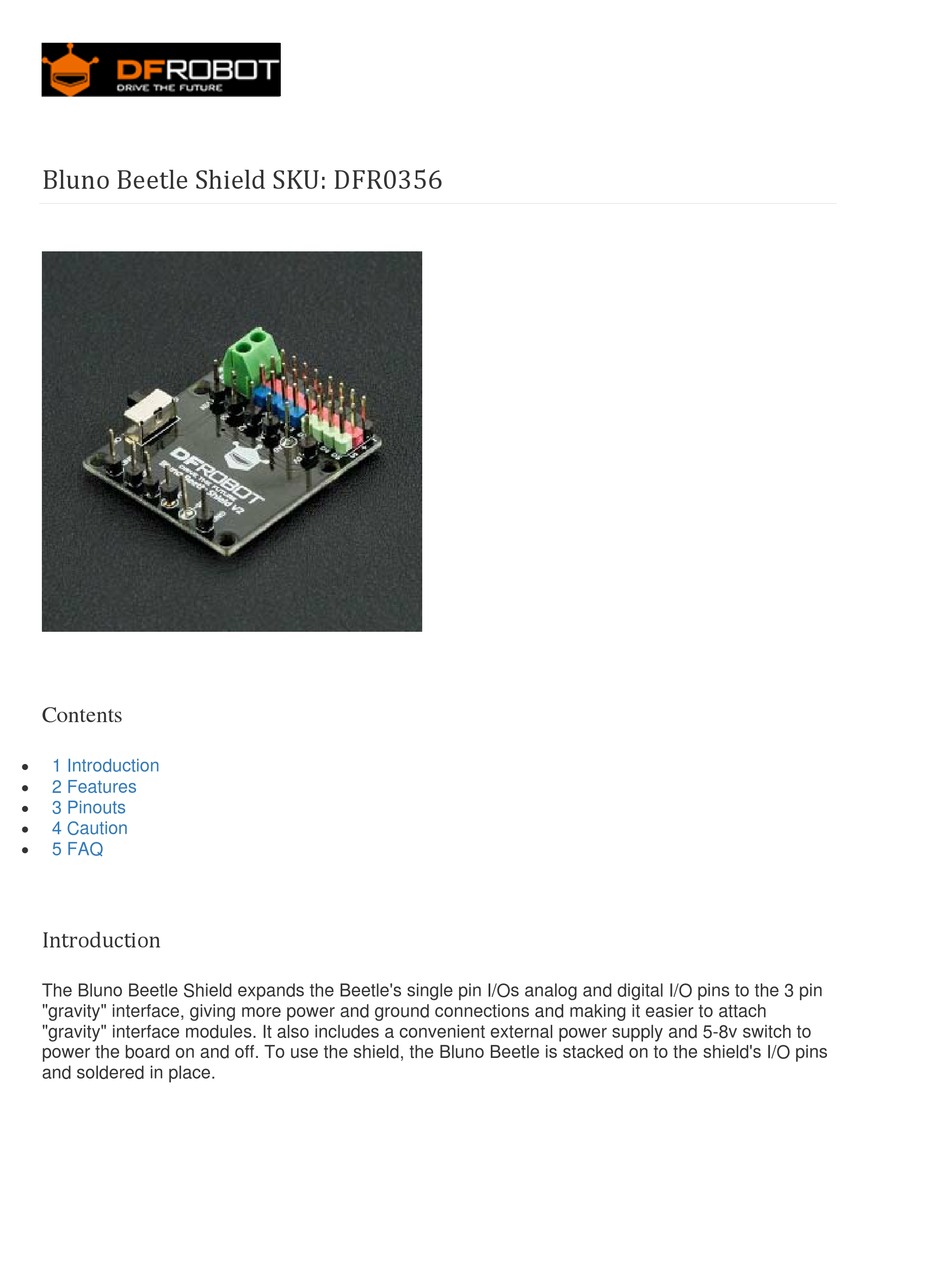

Bluno Beetle Shield SKU: DFR0356

Contents

1 Introduction

2 Features
3 Pinouts
4 Caution
5 FAQ
Introduction
The Bluno Beetle Shield expands the Beetle's single pin I/Os analog and digital I/O pins to the 3 pin
"gravity" interface, giving more power and ground connections and making it easier to attach
"gravity" interface modules. It also includes a convenient external power supply and 5-8v switch to
power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins
and soldered in place.


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFR0356 and is the answer not in the manual?

Questions and answers

Related Manuals for DFRobot DFR0356

Summary of Contents for DFRobot DFR0356

  • Page 1     Bluno Beetle Shield SKU: DFR0356   Contents  1 Introduction  2 Features  3 Pinouts  4 Caution  5 FAQ Introduction The Bluno Beetle Shield expands the Beetle's single pin I/Os analog and digital I/O pins to the 3 pin "gravity"...
  • Page 2 Features  4 digital I/O pins: D2-D5  4 analog Input pin: A0-A3  Vin input range: 5-8v  A power switch  Dimensions: 38 x 37 mm/ 1.5 x 1.45 inches  Mounting holes x4 (3mm diameter) Pinouts Note： ...
  • Page 3  2. When soldering the Beetle to the Shield, make sure the orientation of the Beetle is correct so as to avoid connecting the wrong pins. The beetle should sit on the shield as pictured:...
  • Page 4 (5-8v DC) There are no questions about this product yet. If you have any problems or suggestions, you are welcome to email us or post on the DFRobot forum! For any questions/advice/cool ideas to share, please visit the DFRobot Forum.
