DFRobot Beetle Shield Quick Start Manual

Beetle Shield

SKU:DFR0285

Contents



1 Introduction



2 Specification



3 Attaching the Beetle controller to the Beetle shield



4 Pinout



Introduction

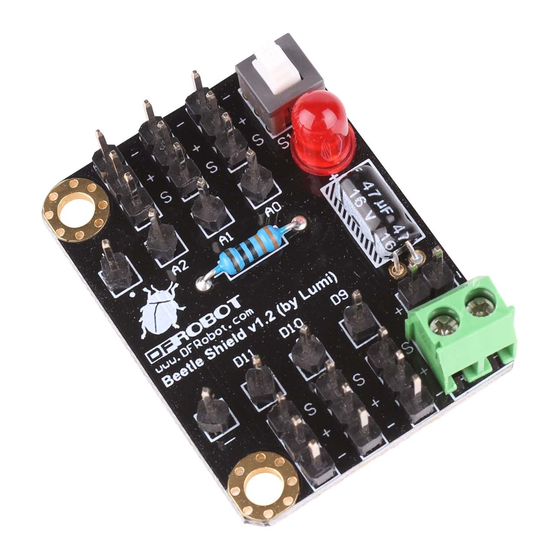

The Beetle shield is designed to attach a

Beetle controller

for easy connecting servos and sensors.

Table of Contents

Do you have a question about the Beetle Shield and is the answer not in the manual?

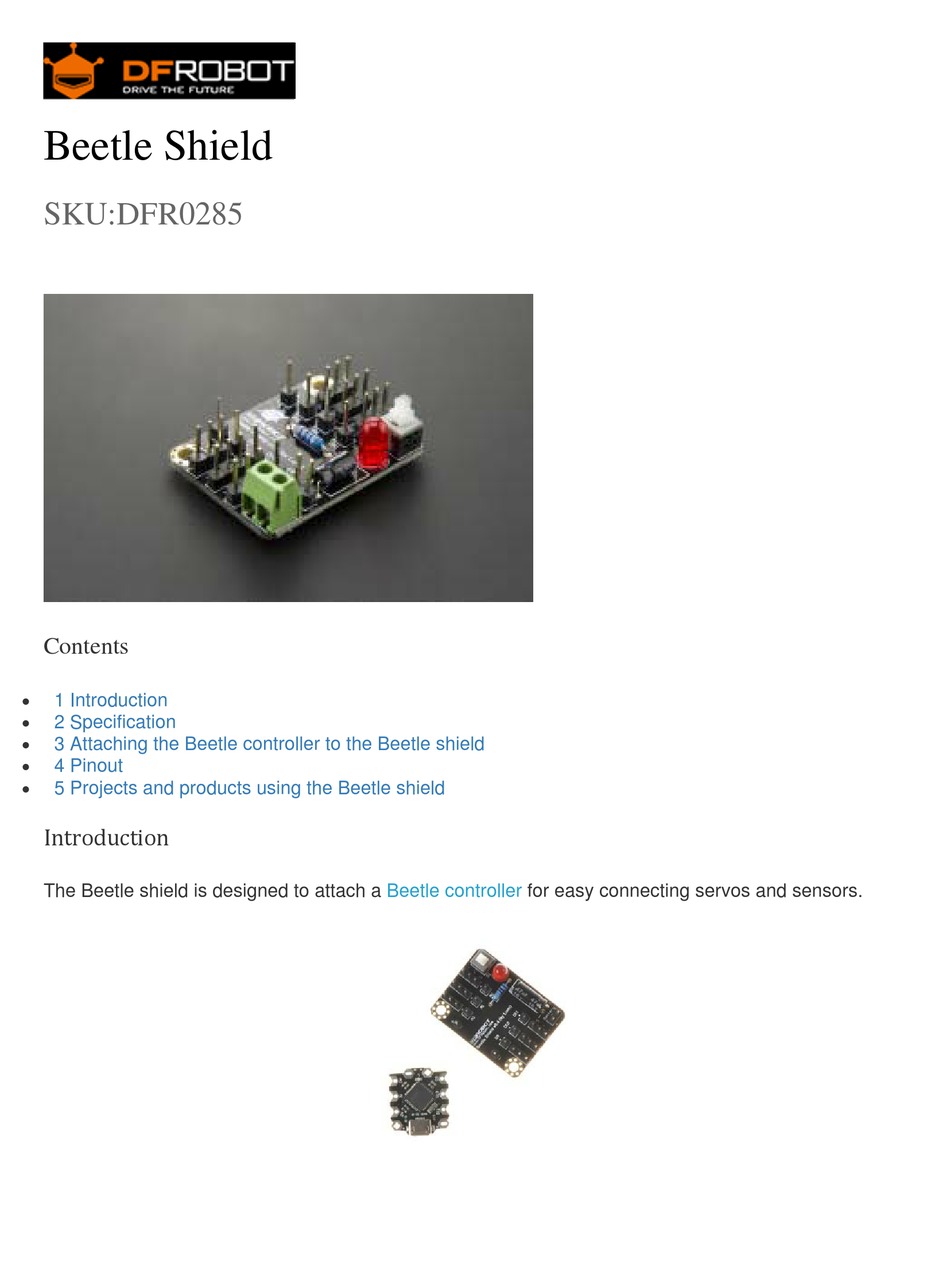

Page 1 SKU:DFR0285 Contents  1 Introduction  2 Specification  3 Attaching the Beetle controller to the Beetle shield  4 Pinout  5 Projects and products using the Beetle shield Introduction The Beetle shield is designed to attach a Beetle controller...
Page 2 Attaching the Beetle controller to the Beetle shield Note: For Beetle shield versions lower than v1.1 the label for D9 and D11 is switched. The pin labeled with D9 on the shield goes to D11 on the Beetle and D11 on the shield is going to D9 on the Beetle.
Page 3 After soldering the Beetle on the shield you may power it up by connecting a power source from 3V to 5V with the power pins labeled with + and - on the Beetle shield. With switching the power on by pressing the button the LED should light up to confirm the power is witched on.
