Symbol SPT 1700 Series Quick Reference Manual

S P T 1 7 0 0 S e r i e s
Parts of the SPT 1700

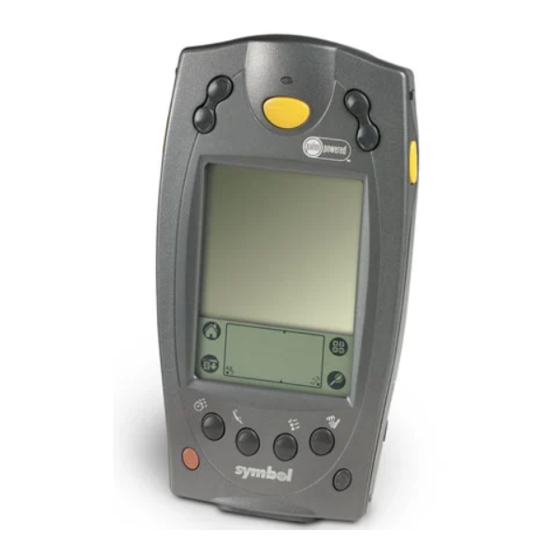

The following illustration indicates each part of the SPT 1700
Terminal.
Front View
WAN Antenna
(SPT 1733/34 only)
Scroll Button
(Up and Down)
Graffiti Input Area
Applications Icon
Menu Icon
Power Button
Left View
Laser Decode LED
Center Scan Button
Scroll Button
Up and Down)
ight Scan Trigger
LCD (Screen)
Calculator Icon
Find Icon
Contrast Button
Application Buttons
Left Scan
Trigger
Q u i c k R e f e r e n c e
Parts of the SPT 1700 (continued)
Back View
Battery Compartment
Infrared Port
Handstrap Connector
Speaker
Reset Button
Lithium-Ion Battery
Battery Latch
Handstrap Connector
Top View Bottom View
Scanner Exit Window Serial Port
