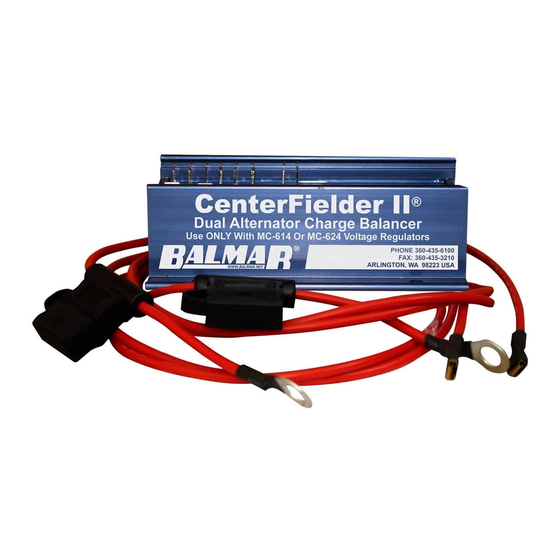

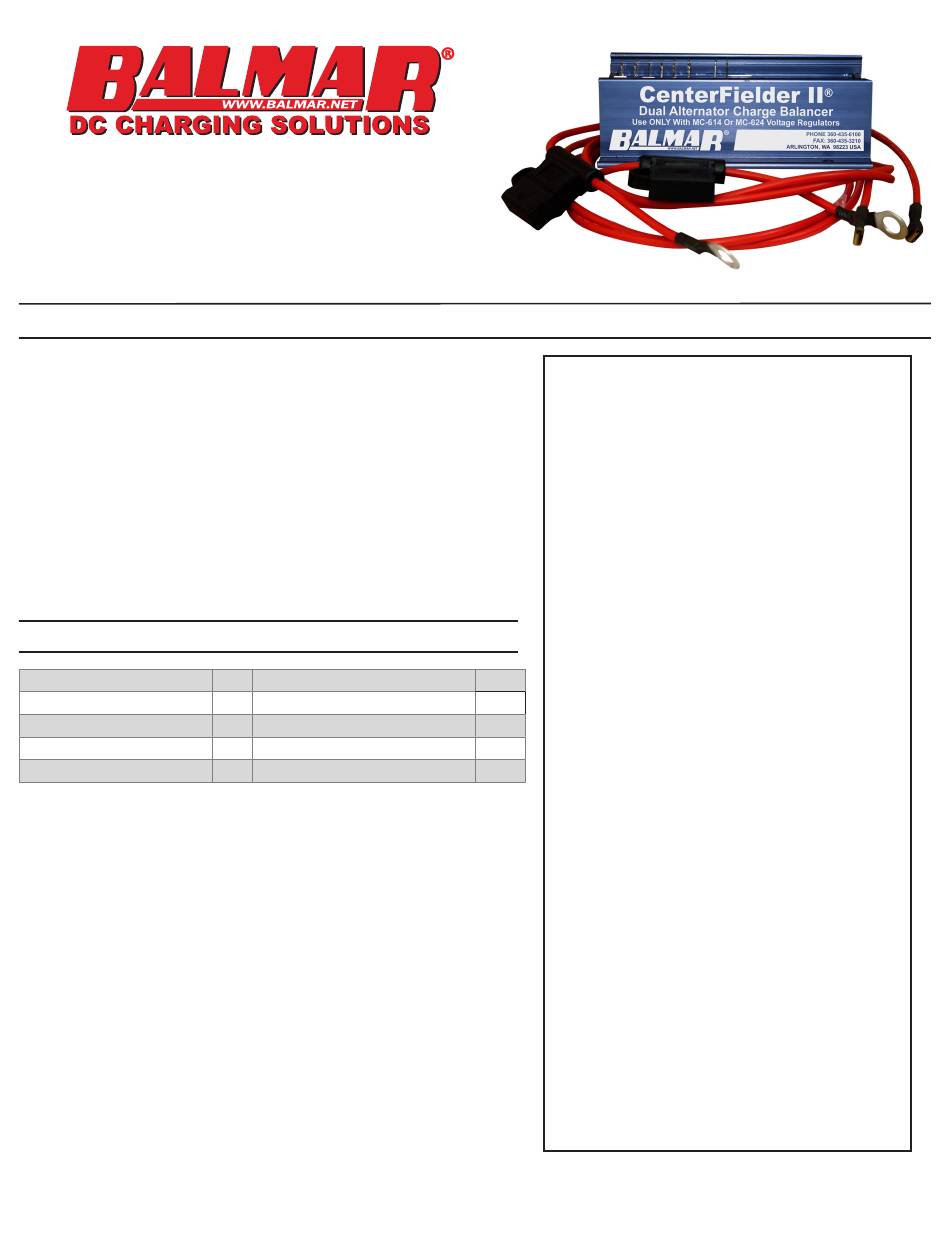

Centerfielder II
CFII-12/24
Introduction
Designed for use in application requiring balanced charge control from
two alternators and two regulators on twin engines, the Centerfielder
II: CFII-12/24 makes it possible to utilize the combined output of both
alternators to supply optimized charging to a single large battery bank.
By monitoring the ignition and field voltages at port and starboard
regulators, the CFII-12/24 determines when both engines are running,
and directs field current from the master (starboard) regulator to both
alternators. By controlling both alternators with the same field source,
the CFII-12/24 ensures that alternators can work together to ensure
optimal charging at a single large battery bank.
Table of Contents
Introduction
Safety Considerations
CFII-12/24 Installation
Unpacking Box
Locate/Mount Regulator
www.balmar.net / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3
INSTALLATION AND OPERATION MANUAL
1
Regulator Terminal Layout
1
12 Volt Wire Diagram
2
24 Volt Wire Diagram
2
Warranty
2
Tech Service is available Monday - Friday (8:30am - 7:30pm EST)
Safety Considerations
1.
Always disconnect your battery banks and
ensure that switches are "OFF" prior to
installing your regulator.
2.
Remove loose-fitting clothing or jewelry,
which could become entangled in your
motor or other machinery prior to installing
regulator.
3.
Wear ANSI-approved safety eye-wear and
protective gear.
4.
DO NOT attempt to modify the regulator.
Modifications could result in damage to
your charging system, and will void your
warranty.
3-4
5
5.
DO NOT attempt installation if you are tired
6
or fatigued.
7
6.
Ensure that the engine has cooled before
initiating installation.
7.
DO NOT attempt regulator installation while
using alcohol or medication that could
impair your judgment or reaction time.
8.
Always use the right tool for the job.
Improper tool use may damage regulator
or your vessel, and could result in personal
injury.
9.
Take time to read the manual. Equipment
damage and possible injuries may result
from an incomplete understanding of the
installation and operation of the MC-612-
DUAL regulator. If you are unfamiliar with
marine electrical systems, consult with a
licensed marine electrician.
1
©2019 Balmar LLC SUP-0200 REV.D 10/16/19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Balmar Centerfielder II
Summary of Contents for Balmar Centerfielder II
- Page 1 / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3 Tech Service is available Monday - Friday (8:30am - 7:30pm EST) ©2019 Balmar LLC SUP-0200 REV.D 10/16/19...
-
Page 2: Installation
Installation The Centerfieldr II is easy to install. You will find, included with the Centerfielder II, a collction of wiring terminal connector as well as two fused 12-gauge RED wires required to replace the standard 14-gauge RED power wires in the Max Charge regulator’... - Page 3 PORT REGULATOR IGNITION - Connect Terminal #4 to the port voltage regulator’s BROWN ignition wire. A BROWN 14- Gauge user-supplied wire is recommended. A female 1/4” spade terminal is supplied with the Centerfielder II. PORT IGNITION INPUT - Connect Terminal #5 to the port engine ignition switch or port engine oil pressure switch.
- Page 4 -12/24 will continue to supply balanced field current to both port and starboard alternators when the LED is activated. www.balmar.net / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3 Tech Service is available Monday - Friday (8:30am - 7:30pm EST)
- Page 5 / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3 Tech Service is available Monday - Friday (8:30am - 7:30pm EST)
- Page 6 / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3 Tech Service is available Monday - Friday (8:30am - 7:30pm EST)
-
Page 7: Balmar Warranty
Attention: Warranty Returns RMA# Once Balmar receives the product, we will test the product to determine if the problem is due to a defect in the product. If, at the sole discretion of Balmar, the problem is determined to be a manufacturer defect, Balmar will repair the product or send a new product to replace the defective product. - Page 8 Please read carefully. All policies, procedures and instructions are subject to change. This guide was prepared to provide information and does not constitute a contract. Balmar reserves the right, without prior notice, to change, delete, supplement, or otherwise amend at any time the information and policies contained in this guide.
