Product:
Heavy-Duty Over-Travel Drawer Slide
Mounting:
Side - Unhanded Slide and QD Rail
Clearance:
.89" (+.030, -.000)
Load Rating:
200-Pound Class
Height:
2-9/32". Slide with QD 2-25/32".
Finish:
Zinc Plated
Travel:
1" Over-Travel
REAR
CROSS SECTION
(+ 0.03", - 0.00")
NOTE: This slide must never be used as a pullout step, platform or any other application supporting human weight as injury may result.
PATENT PENDING
Heavy-Duty, Over-Travel Drawer Slide

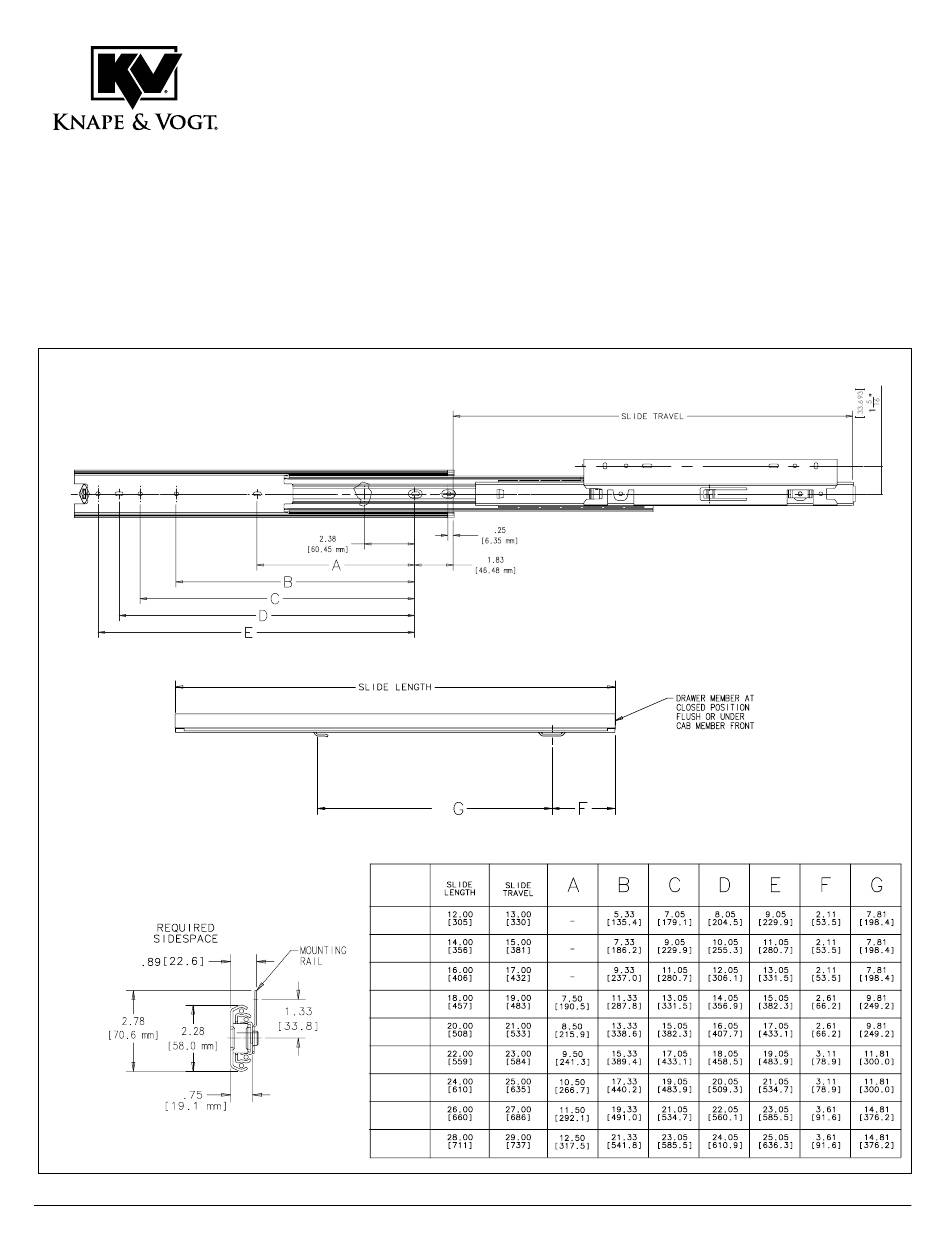

KV 8805 Major Dimensions and Mounting Hole Locations
QD
LENGTH
10"
[254]
10"
[254]
10"
[254]
12"
[305]
12"
[305]
14"
[356]
14"
[356]
17"
[432]
17"
[432]
Action:
Telescopic
Hardware:
Customer supplied mounting hardware
# 8 Panhead Wood Screws [Customer to determine length
of mounting hardware based on application.]
Sizes:
12", 14", 16", 18", 20", 22", 24", 26", 28"
Packaging:
Bulk pack (8805B):
All Sizes .................................4 pair per box
Mounting hardware not included.
One set of installation instructions.
Dimensions in [ ] are in millimeters
8805
FRONT
300960 0617
