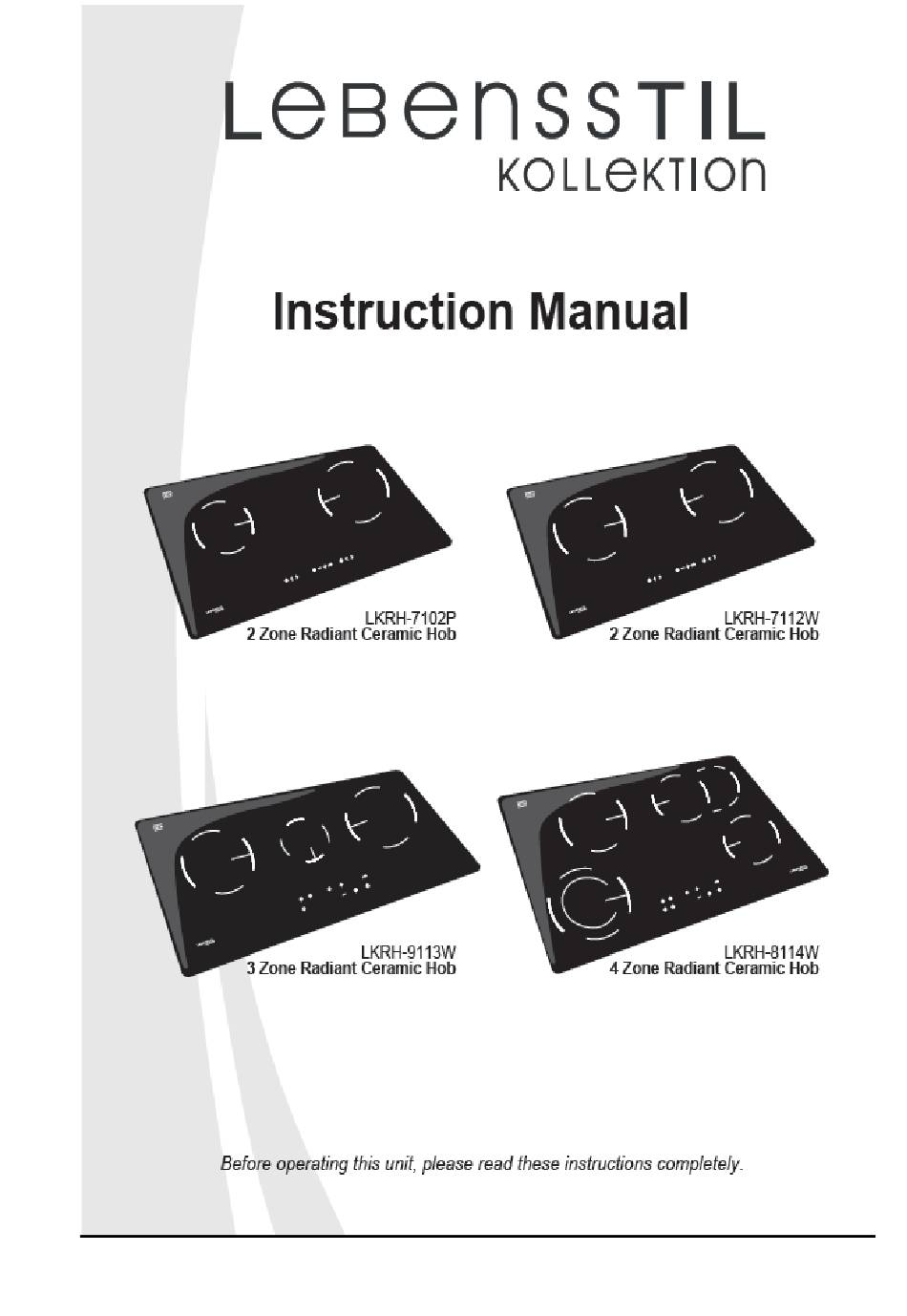

Lebensstil Kollektion LKRH-7102P Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LKRH-7102P and is the answer not in the manual?

Questions and answers

Related Manuals for Lebensstil Kollektion LKRH-7102P

Summary of Contents for Lebensstil Kollektion LKRH-7102P

  • Page 2 Dear Customer: You are now the proud owner of one of the finest and most modern appliance that today’s technology can produce. You and your new hob are going to make a great team together. But first you should get to know the product so as to gain the maximum benefit from it.

  • Page 3: Table Of Contents

    Electrical Connection  Operation Guide o Using The Touch Control o How To Operate The Radiant Ceramic Hob  Model-LKRH-7102P & LKRH-7112W  Activating The Cooking Zone  Using The Timer  Using The Lock Down Mode (for Model LKRH-7112W only) ...

  • Page 4: Safety Instructions

    Safety Instructions IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. WARNING This symbol will help alert you to situations concerning your personal safety INFOMATION/PRACTICAL TIPS This symbol will provide information that are useful to you WARNING...

  • Page 5: About The Radiant Ceramic Hob

     DO NOT HEAT unopened food containers. Build-up of pressure may cause the container to burst and result in injury  WARNING Always ensure service is carried out by a qualified personnel  The installation and connection of the new appliance MUST be carried out by qualified personnel ...

  • Page 6: Model Appearance

    OFF, even at the highest power level setting. This also helps to prevent damage to the ceramic hob. Model Voltage Wattage LKRH-7102P 220V-240V 1200W/1800W 220V-240V LKRH-7112W 2200W/2200W 2200W/1200W/ 220V-240V LKRH-9113W 2200W 2200W/1800W/ 220V-240V LKRH-8114W 2000W/1200W Model Appearance Radiant Ceramic Hob Models  LKRH-7102P  LKRH-7112W  LKRH-9113W  LKRH-8114W...
  • Page 7 LKRH-7112W LKRH-7012P LKRH-9113W...

  • Page 8: Installation Guide

    LKRH-8114W Installation Guide Hob Installation  The tabletop groove for the hob should be made according to size of the models (please refer to the diagrams below for the groove measurements). Please ensure a clear space of minimum 50mm around the hob. The tabletop must be at least 30mm thick and made of heat resistance material to avoid deformation or damage due to the high heat from the cooker.
  • Page 9  Due to the high temperature inside the radiant ceramic hob, please ensure that there is sufficient ventilation available to ensure normal operation of the hob. As shown in the diagram below. (Fig. 2)  Groove Opening...

  • Page 10: Electrical Connection

    The hob is to be connected to the mains using the “terminal block” that allows the (For models LKRH-7112W, appliance to be disconnected from the mains at all poles. LKRH-9113W & LKRH-8114W) LKRH-7102P  For model the hob is connected to the mains by a supply cord and a plug, .
  • Page 11 Power Connection Diagram & Power Rating Label Fig. 3...

  • Page 12: Operation Guide

    Lightly contact the pad with the flat part of your entire fingertip. Do not just use the narrow end of your fingertip. Fig. 5 How To Operate The Radiant Ceramic Hob Model LKRH-7102P & LKRH-7112W Symbol Description Function...
  • Page 13 On/Off Key Activates the Left Cooking Zone Power Regulator Decreases Power Level of Left Cooking Zone Power Regulator Increases Power Level of Left Cooking Zone Booster Key Activates the Left Cooking Zone’s Outer Heating (For Model LKRH- Element 7112W Only) Timer Key Controls the Timer Functions Timer Control Key...

  • Page 14: Activating The Cooking Zone

    Left Cooking Zone Shows the Selected Power Level of the Left Power Level Cooking Zone Indicator Left Cooking Zone Booster Key Indicates the Left Cooking Zone Booster has Activation Indicator been activated. (for Model LKRH- 7112W Only) Left Cooking Zone Indicates Timer Set for Left Cooking Zone Timer Indicator Timer Hour Display...

  • Page 15: Using The Timer

    Using The timer 1. Once the cooking zone has been activated, touch the key to choose the desired cooking zone, the timer needs to be activated for. The desired cooking zone is “Cooking Zone Timer Indicator”. indicated by the Note: If a setting is not done within 10sec after selecting the Timer. The Timer function for the selected cooking zone would automatically shutdown.

  • Page 16: Booster Function (For Model Lkrh-7112W Only)

    (for Model LKRH-7112W only) Booster Function 1. When the cooking zone has been activated, touch the key of the corresponding cooking zone once, this would activate the outer heating element of the cooking zone. Once activated the power level of both the inner and outer heating element would be regulated simultaneously.
  • Page 17 Left Cooking Zone Power Selector Shows the Selected Power Level of the Left Indicator Cooking Zone (For Model LKRH- (For Model LKRH-9113W) 9113W) Left Bottom Cooking Zone Shows the Selected Power Level of the Left Power Selector Bottom Cooking Zone Indicator (For Model LKRH-8114W) (For Model LKRH-...
  • Page 18 9113W) Left Bottom Indicates Timer Set for Left Bottom Cooking Cooking Zone Zone Timer Indicator (For Model LKRH-8114W) (For Model LKRH- 8114W) Timer Key Controls the Timer Function Stand Alone Timer Indicates Timer Set for Independent usage Indicator Right Bottom Cooking Zone Timer Indicator Indicates Timer Set for Right Bottom Cooking...
  • Page 19 8114W) Center Cooking Zone Indicates Center Cooking Zone has been selected Selection Key (For Model LKRH-9113W) (For Model LKRH- 9113W) Left Top Cooking Indicates Left Bottom Cooking Zone has been Zone Selection Key selected (For Model LKRH- (For Model LKRH-8114W) 8114W) Right Cooking Zone Selection Key...

  • Page 20: Activating The Cooking Zone

    Left Top Cooking Zone Timer Indicator (For Model LKRH- 8114W) Timer Minute Indicates Minutes Set Display Right Cooking Zone Timer Indicator Indicates Timer Set for Right Cooking Zone (For Model LKRH- (For Model LKRH-9113W) 9113W) Right Top Cooking Zone Timer Indicates Timer Set for Right Top Cooking Zone Indicator (For Model LKRH-8114W)

  • Page 21: Using The Timer

    The power levels are indicated on the Power Level Indicator with 0 -9” 0” 9” numerical of “ . With level “ being for shutdown and level “ being the highest Power Level setting. iii. When selecting power level upon activation, the key is preset to a Power Level 5 when touched once, upon activation and increases the power level thereon.

  • Page 22: Using The Lock Down Mode

    4. To cancel the Timer, use the key to count down the timer back to 5. The timer function can be used without the activation of the cooking zone (e.g. to time the duration for meat marinating), The activation of this function is indicated by “Stand Alone Timer Indicator”...

  • Page 23: Residual Heat Indicators

    Residual Heat Indicators residual heat 1. After using the hob remains in the cooking area. The corresponding cooking zone power level indicator would display “H” 10sec after the power level of the cooking zone has been set to “ ” or when the hob has been turned OFF by touching the , warning to keep away from the cooking area.

  • Page 24: Cookware Material Types

    POOR  Curved and warped pan bottom.  Pan over hangs the cooking zone.  Heavy handle tilts pan.  Pan is smaller than the cooking zone. Always use a cookware for it’s intended purpose. Follow manufacturer’s instructions. Some cookwares were not made to be used on the radiant hob. The size of the cookware would influence the setting needed for best cooking results.

  • Page 25: General Care And Cleaning

    GENERAL CARE AND CLEANING Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the hob surface. Do not slide anything metal or glass across the hob. Do not use your hob top as a cutting board or work surface in the kitchen. Do not cook foods directly on the hob without a cookware.

  • Page 26: Solution To Common Problems

    CAUTION Damage to the ceramic glass hob to may occur if you use scrub/scouring pad. Plastic or Foods with a High Sugar Content  These types of soils must be removed immediately if spilled or melted onto the hob top. Permanent marks may occur if not removed immediately. After turning OFF the cooking zone, use a razor blade scraper or a metal spatula and scrape the soil from the hot surface.
  • Page 27 Heating Element Does Not Heat Up  No power to appliance. Check/reset circuit breaker or replace fuse. If the problem is a circuit overload or improper connection have it corrected by a qualified electrician.  Too Low heat setting. Turn control to a slightly higher setting until the elements comes on ...

  • Page 28: Warranty Information

     Mineral deposits from water and food. Wet surface with water and sprinkle on a ceramic glass cleaner. Clean away with a damp paper towel or fluff-free cloth until the stain disappears. Wipe away remaining paste away, then apply a small amount of ceramic glass cleaner and polish with a clean paper towel or fluff-free cloth.

  • Page 29: Disclaimer

    Disclaimer All contents in this material has been subjected to careful verification and checking, to ensure all information contained herein are accurate. We shall not be liable to any mistakes, omissions in printing or misunderstanding of the contents, the company reserves the right of interpretation herein.

This manual is also suitable for:

Lkrh-7112wLkrh-9113wLkrh-8114w
