g) Image Measuring Tools

For measuring tools to be accurate, first calibrate your microscope. See section "14. Calibrating the
Microscope" for information about how to do this.
Double-click an image in the saved images window (B7) to enter the measurement interface, then select
the measure

h) Draw and Text

Double-click an image in the saved images window (B7) to enter the Image Markup / Comment interface,
then select the draw
40
icon.

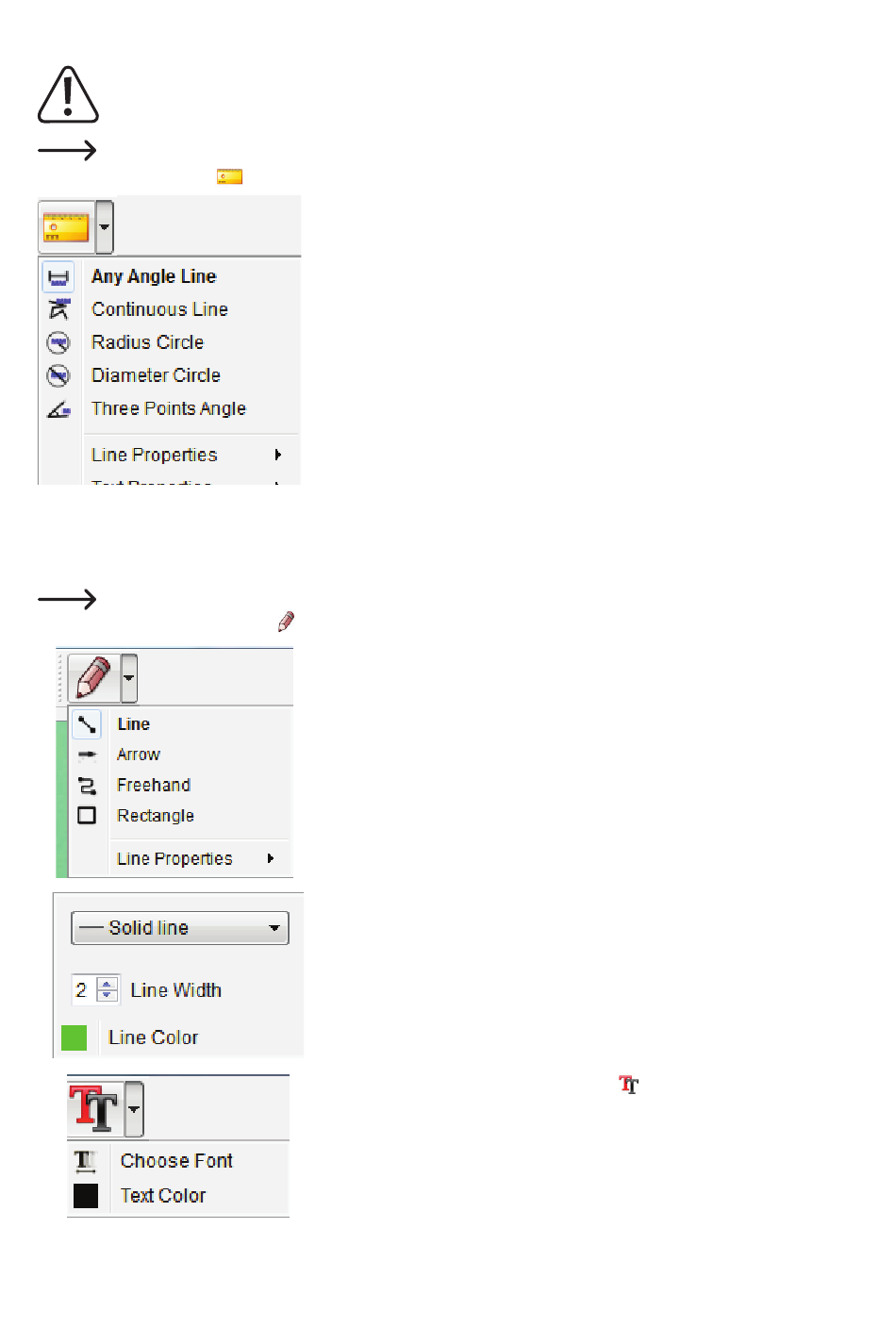

• Any Angle Line Measurement. Click and drag from one point to another.
• Continuous Line Measurement. Click and drag from one point to multiple
points.
• Radius Circle Measurement. Click and drag to extend the radius.
• Diameter Circle Measurement. Click and drag to extend the diameter.
• Three Points Angle Measurement. Click and drag from one point to
another, measure the angle, then click the mouse to release.
icon.
• A dropdown menu will show with various options.
• Line Properties include Line Width and Line Color.
• To modify text options, select the text
• A dropdown menu will show with various options such as font selection and
text color.
icon.
