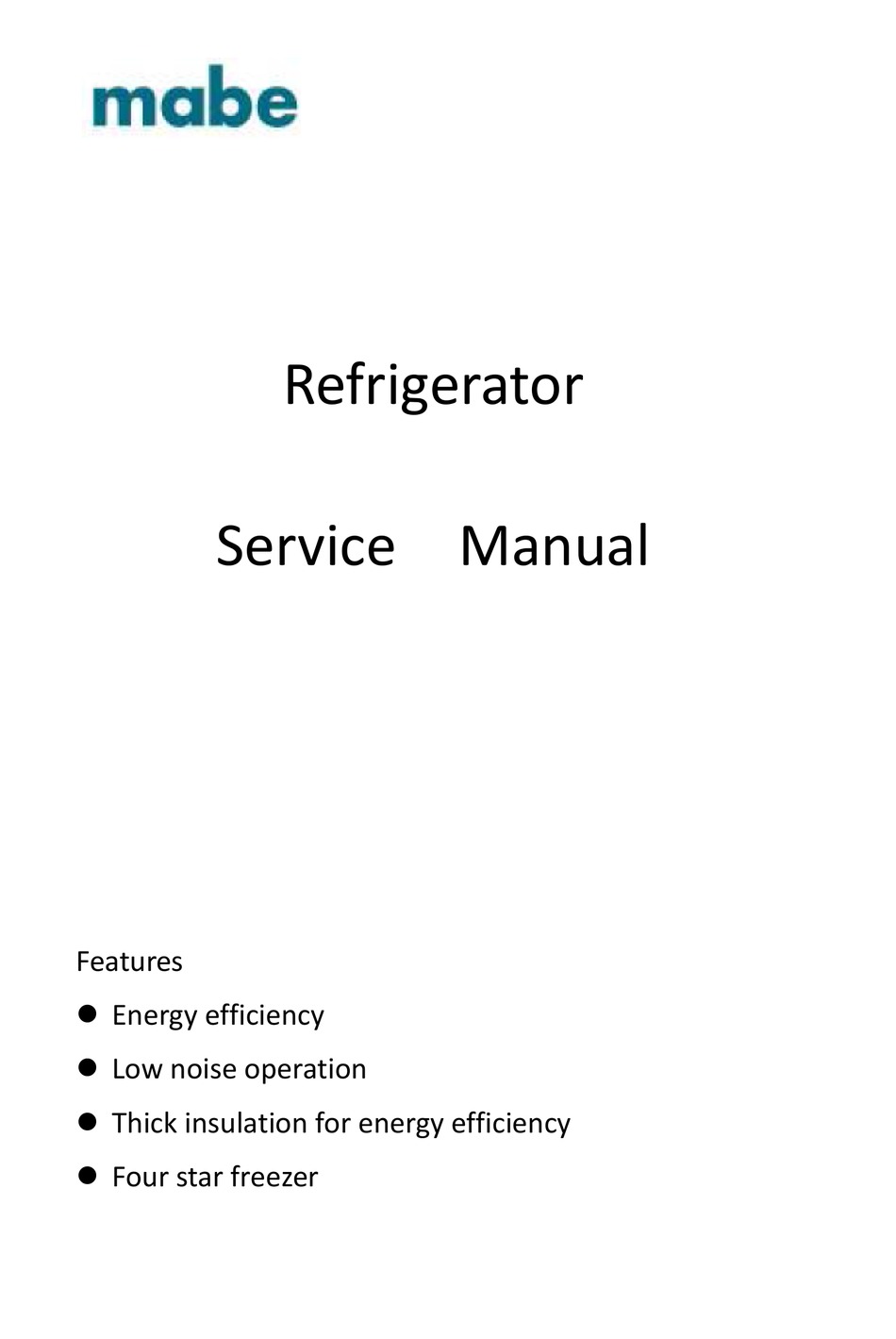

- Page 1 Refrigerator Service Manual Features Energy efficiency Low noise operation Thick insulation for energy efficiency Four star freezer...
-
Page 2: Table Of Contents
CONTENT Content Product code illumination and series introduction Specifications Safety precautions Function schedule Circuit diagram Maintenance service and trouble shooting Explosive view List of parts... -
Page 3: Specifications
Specifications Models FMM300UESX0 Capacity(L) Color Silver Power supply (V/Hz) 220-240V/60HZ Rated Input Power (W) Power Consumption (Kw.h/Y) 485.45 Net Weight(Kg) Gross Weight (Kg) Unit Dimension (D*W*H) (mm) 585*595*1750 Packing Dimension (D*W*H) (mm) 694*651*1821 Container Quantity 40’HQ (pcs) -
Page 4: Safety Precautions
Safety Precautions WARNING! It is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself. Safety tips o not use electrical appliances such as a hair dryer or heater to defrost your Fridge/Freezer. - Page 5 f the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Function Schedule
Function Schedule Energy efficiency Low noise operation Thick insulation for energy efficiency Four star freezer... -
Page 7: Circuit Diagram
Circuit Diagram... -
Page 8: Maintenance Service And Trouble Shooting
Maintenance Service Trouble Shooting Trouble Shooting Power cut If the internal temperature of the Freezer compartment is -18℃ or less when the power returns, your food is safe. The food in your Freezer will remain frozen for approx 16 hours with the door closed. -
Page 9: Explosive View
Explosive View... - Page 10 Spare Parts List DESCRIPTION CODE CABINET C0922.1.1/B TOP COVER C1327-TA04(009L) TOP BOARD C1327.1-1 STRENGTHEN PLATE C0614.2.1-4(A1) STOPPER C0616.2-3 UPPER HINGE C0921.1.2 FRIDE DOOR C0716.2.1 UPPER HINGE ASSY C0921.1-4 HANDLE C0419.2-1 THERMOSTAT KNOB C0921.4-1 THERMOSTAT C0615.4.3/I DISPLAY BOARD C0922.4.1(A1) LIGHT PIPE C0615.1-2 GROUND LEAD Q/MLKT-205/F30J...
