Thank you for choosing OMP Global Style.
AMERICAS
EUROPE/MIDDLE EAST
200 Norfinch Drive
Common Lane
Toronto, Ontario,
Setchey, Kings Lynn
Canada
Norfolk, PE33 0AT
M3N 1Y4
England
Tel: 1-416-667-9909
Tel: 44-1553-813-300
Email: americas@omp-global.com
Email: europe@omp-global.com
omp-global
ASIA PACIFIC
1D Quadrant Dr,
Gracefield,
Lower Hutt, 5010
New Zealand
Tel: 64-4-586-6677
Email: asiapacific@omp-global.com

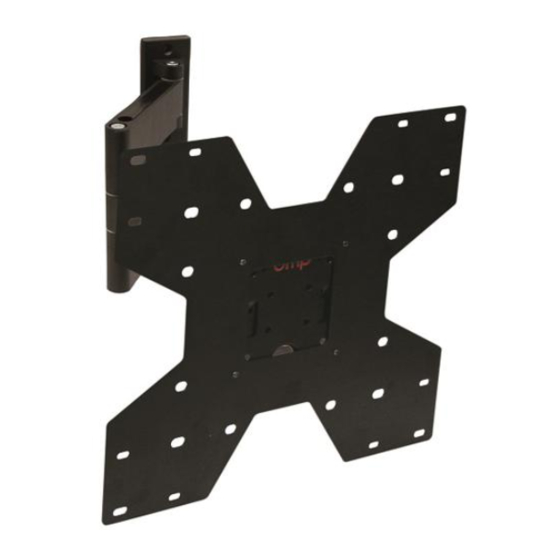

7231
Advertisement
Table of Contents
Related Manuals for OMP M7231
Summary of Contents for OMP M7231
- Page 1 7231 Thank you for choosing OMP Global Style. AMERICAS EUROPE/MIDDLE EAST ASIA PACIFIC 200 Norfinch Drive Common Lane 1D Quadrant Dr, Toronto, Ontario, Setchey, Kings Lynn Gracefield, Canada Norfolk, PE33 0AT Lower Hutt, 5010 M3N 1Y4 England New Zealand Tel: 1-416-667-9909...
-
Page 2: Mounting Installation Instructions
MOUNTING INSTALLATION INSTRUCTIONS COMPONENT CHECKLIST CAUTION: If you do not understand these instructions, or have doubts about the safety of the installation, please call a qualified installer or contact us. We will provide assistance for any safety issues and resolve any missing component problems. Please check carefully to make sure there are no missing or defective parts. - Page 3 CORRECT INCORRECT TIP: Use a spirit level to ensure the wall plate is horizontal. concrete 4mm (5/32”) hole Timber Stud plaster/drywall plaster/drywall Wall Mount (A) concrete wall plate concrete Flat head wood screw (E) TIP: Use a spirit level to INSTALLATION OF THE WALL PLATE TO THE WALL ensure the wall plate is horizontal.
- Page 4 ATTACH HOOK ADAPTOR PLATE TO SCREEN VESA 75X75 SELECT THE CORRECT MOUNTING HARDWARE FOR YOUR TELEVISION Select the correct mounting screws (I,J,K,L or M). Optional spacers (H) may be used between mount and monitor. Do not overtighten screws and make sure that screws do not bottom out in the mounting holes.
- Page 5 ATTACH ADAPTOR PLATE TO VESA 200X100 HOOK ADAPTOR metal washer (G) adapter plate (C) M5x6 Screw (N) M4x10 Screw (I) NOTE: If hole pattern is in metal washer (G) a pocket, attach adaptor adaptor plate (C) plate to back of screen using four M4x20 screws fig.
-
Page 6: Installing And Removing Flat Panel Screen
INSTALLING AND REMOVING FLAT PANEL SCREEN Lower hook adaptor plate with screen at an angle into recesses of assembly arm. Once clips are engaged, push down to seat clips in recesses. Insert and tighten M5x6mm (N) Philips screw to lock screen to assembly arm. NOTE: This procedure will require two persons, see fig.
