RITE-HITE Wheel-Lok MWL-1300 Owner's Manual

RITE-HITE Wheel-Lok MWL-1300 Owner's Manual

Vehicle restraint
Hide thumbs Also See for Wheel-Lok MWL-1300:

Advertisement

Quick Links

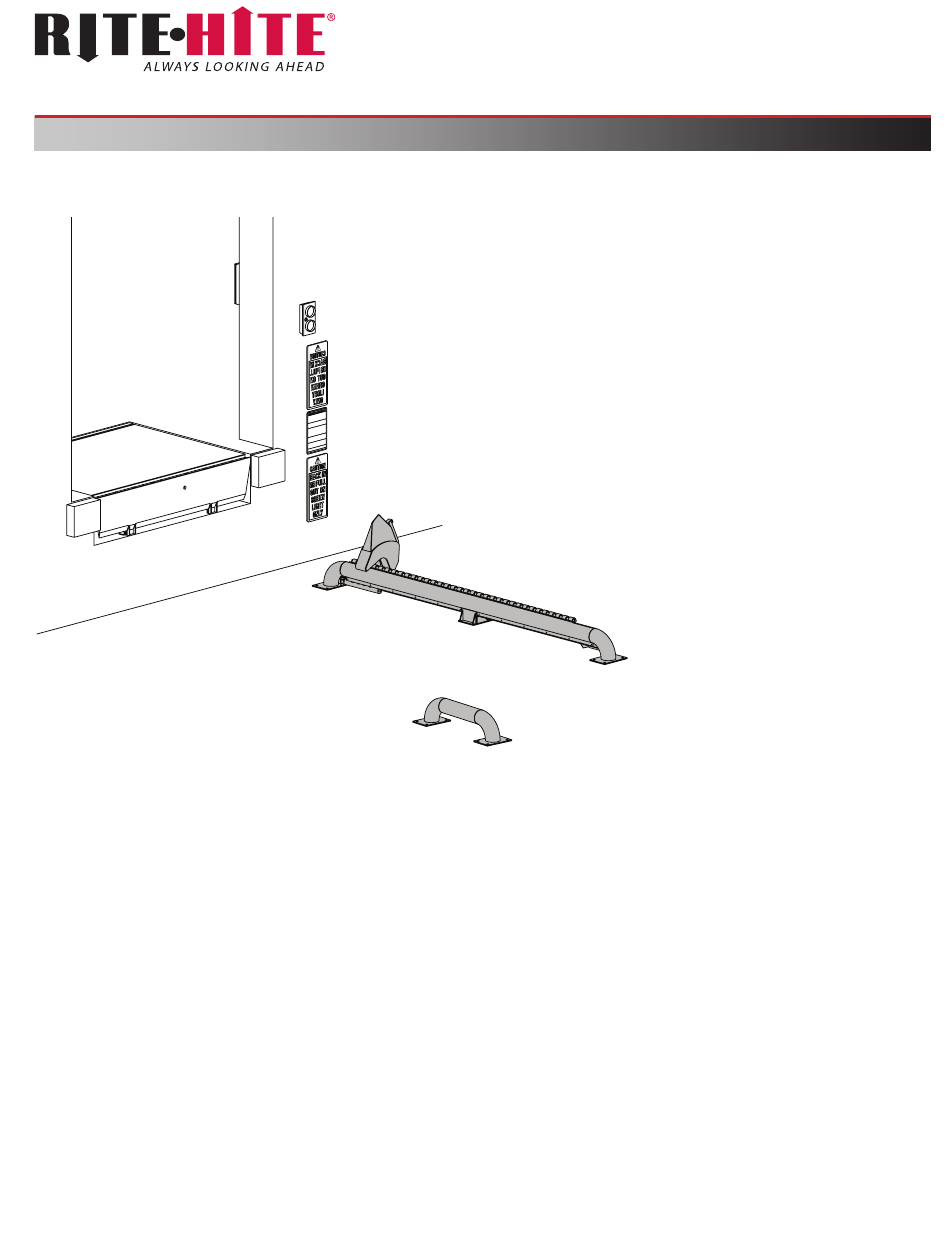

MWL-1300 Manual Wheel-Lok
™
Vehicle Restraint
Owner's Manual
This manual covers units built After Serial Numbers: 13KD900001M and up
Model: MWL-1300
Language: English
Publication: AMEN00158 2018-04-27B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wheel-Lok MWL-1300 and is the answer not in the manual?

Questions and answers

Related Manuals for RITE-HITE Wheel-Lok MWL-1300

Summary of Contents for RITE-HITE Wheel-Lok MWL-1300

  • Page 1 MWL-1300 Manual Wheel-Lok ™ Vehicle Restraint Owner's Manual This manual covers units built After Serial Numbers: 13KD900001M and up Model: MWL-1300 Language: English Publication: AMEN00158 2018-04-27B...

  • Page 2: Table Of Contents

    NOTICE TO USER Your local Rite-Hite representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your specific ® operation. Call your local representative or Rite-Hite at 414-355-2600. ® The Rite-Hite products in this manual are covered by one or more of the following U.S. patents: 6065172, 6070283, ®...

  • Page 3: Safety Warnings

    RITE-HITE ® Corporation does not recommend any particular lockout device, but recommends the utilization of an OSHA approved device (refer to OSHA regulation 1910.147). RITE-HITE Corporation also recommends the review and ® implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout). These regulations are available through OSHA publication 3120.

  • Page 4: Owner Responsibility

    5. As with any piece of machinery, dock equipment requires routine maintenance, lubrication, and adjustments. Your local Rite-Hite representative offers owners the option of a Planned Maintenance Program (P.M.P.). As part of this service, your local Rite- Hite representative will do all routine maintenance, lubrication, and adjustments.

  • Page 5: Definition And Function

    Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual DEFINITION AND FUNCTION FEATURES The MWL-1300 vehicle restraint is a truck and trailer locking system used to help secure trucks and trailers to the face of a loading dock. The barrier is deployed in front of the tire after the trailer has been positioned against the dock bumpers.
  • Page 6 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual Anchor Outside Control Light Inside w/Horn Sign Outside Sign Operation Sign Wheel Guide Barrier Carriage Stored Locked Sensor Sensor Barrier Stored Sensor Photo-Eye Barrier Barrier Link Barrier Carriage FIGURE 2 - MWL-1300 FEATURES...

  • Page 7: Operating Procedures

    GREEN light and the inside RED light are flashing, understand the Owner’s Manual. the Barrier is stored. A truck backs in. When the truck is • Call your local representative or Rite-Hite at parked firmly against the bumpers, the operator can now (800) 456-0600 with any questions.
  • Page 8 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual Restraint LOCKED Restraint UNLOCKING, LOADING OPERATION COMPLETE Button Pressed If the MWL-1300 vehicle restraint is in the LOCKED position (Barrier is down in front the tire), the Light In order to release the truck after completion of the...
  • Page 9 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual FAULT State From LOCKING State HORN OVERRIDE State, HORN OVERRIDE Button Pressed after Securing Trailer by In case the Barrier does not engage properly or if it Alternate Means does not sense a tire, the alarm will sound. The outside and inside lights will show flashing RED.

  • Page 10: Maintenance

    6. Verify decals are present and legible, replace as (extreme climates, corrosive chemicals, frequency required. of usage, etc.). Consult Rite-Hite if these conditions exist for accelerated maintenance requirements. NOTE: Your local Rite-Hite representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your specific operation.
  • Page 11 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual Some Items Removed For Clarity Track Coil Cord Coil Cord Support Cable Trolley Wheel Trolley Slider Trolley Carriage Roller Photo-Eye Carriage FIGURE 9 - INSPECTION ELECTRICAL COMPONENT TESTING Unlocked: Locked: 1. Place restraint in its stored position, Barrier stored and 1.
  • Page 12 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual Sensing Switch Test Procedure Sensing Switch Mag. Res. Sensor: 1. Locate sensor wires and disconnect. 2. Set multi-meter to Continuity setting. Magnet 3. Attach leads to switch wires and place a magnet in front...
  • Page 13 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual LED STATUS CHART Publication: AMEN00158 2018-04-27...
  • Page 14 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual HORN OVERRIDE CODE AND DIAGNOSTICS SETTING HORN OVERRIDE CODE DIAGNOSTICS 1. *Press and hold DIAGNOSTIC button until the horn Diagnostic mode may be entered while the restraint is in chirps (approximately five seconds).

  • Page 15: Electrical Schematic (Standard)

    Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual ELECTRICAL SCHEMATIC (STANDARD) FROM CUSTOMER MAIN POWER & SAFETY PROTECTION DEVICE. 110-120v. 1PH. 60HZ./208-240v. 1PH. 50HZ. USE 20.0A/10.0A DUAL ELEMENT TIME DELAY FUSE SEE NOTE 2 1FU1 (1L1) DUMMY FUSED DISCONNECT (BY OTHERS)
  • Page 16 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual MICRO CONTROL CIRCUIT BOARD TO LED BOARD (SEE DETAIL - "B") INSIDE HORN HORN+ (WH/RD) HORN- (WH/BK) 12V, 0.03A HORN- (WH/BK) GREEN LIGHT "RIG" SENSOR (SW1) N.O. LOCK INTERLOCK (COM) (SW1) (WH)
  • Page 17 4.0 LB-IN -GROUND TERMINAL: 35 LB-IN DOWN OUTSIDE LIGHTS - RED/GREEN 6. LS1 & LS2 PROVIDED BY RITE-HITE WITH VEHICLE RESTRAINT. OTHER FIELD DEVICES ARE OPTIONAL. SEE SPECIFIC ELECTRICAL SCHEMATIC. PEDESTRIAN-VU 7. FUSED DISCONNECT NOTES: -FUSED DISCONNECT IS NOT PROVIDED BY RITE-HITE PRODUCTS CODED HORN OVERRIDE CORPORATION.
  • Page 18 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual CORNER/LEVELER-VU WIRING MICRO CONTROL CIRCUIT BOARD N.O. N.C. J13-1 N.O. J13-2 J13-3 N.C. J13-4 RITE-VU WIRE LABELS J13-5 PLUG & PLAY J13-6 ORIGINAL RELEASE VERSION J14-1 J14-2 PVDT J14-3 OUT0 CVRD 14-4...
  • Page 19 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual OUTSIDE LIGHT BOX WIRING #40 Wire White Wire Red Wire #42 Wire Red Lamp Black Wire Horn Red Wire Red Wire Green Lamp #41 Wire White Wire Light Box Cover FIGURE 17 - OUTSIDE LIGHT BOX WIRING...

  • Page 20: Replacement Parts

    MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual REPLACEMENT PARTS WHEEL GUIDE REPLACEMENT PARTS 12, 21 12, 21 Publication: AMEN00158 2018-04-27...
  • Page 21 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual WHEEL GUIDE ASSEMBLY PARTS LIST Order Parts for the restraint that matches your loading dock. Left Side Right Side Part Number Item Description Left Right Wheel Guide WELDMENT 156" 135625 134763 Pin, Spring Roll 1/4" x 1-3/4" Long...
  • Page 22 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual REPLACEMENT PARTS TROLLEY ASSEMBLY REPLACEMENT PARTS 14 36 Publication: AMEN00158 2018-04-27...
  • Page 23 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual TROLLEY ASSEMBLY PARTS LIST Order Parts for the restraint that matches your loading dock. Left Side Right Side Part Number Item Description Left Right Carriage Assembly (includes items: 1, 3, 5, 10, 11, 16, 17, 19, 20)
  • Page 24 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual BARRIER REPLACEMENT PARTS Order Parts for the restraint that matches your loading dock. Left Side Right Side Part Number Item Description Left Right BARRIER 142107 142105 PHOTO-EYE SENSOR (Items 14 & 15 must be ordered with this)
  • Page 25 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual LATCH ASSEMBLY REPLACEMENT PARTS Order Parts for the restraint that matches your loading dock. Left Side Right Side Part Number Item Description Left Right LATCH ACTUATOR ASSEMBLY 149337 149326 GROMMET 139986 139986...
  • Page 26 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual ELECTRICAL PARTS DO NOT ENTER TRAILER KEYED OPTION ENTER TRAILER OUTSIDE LIGHTS WHEEL-LOK™ BEFORE Loading or HORN OVERRIDE Unloading AFTER LOADING OPERATION Loading or COMPLETE Unloading 708 709 X2/N J13-1 LOCK J13-2...
  • Page 27 Power circuit board, Including Fuses (115 Volt Power) 142126-04 Power circuit board, Including Fuses (230 Volt Power) 142126-05 Standard Micro Control Board 141578-861D106 Micro Control Board with Program Options (Consult Rite-Hite for specific part number) 141578-xxx Micro circuit board cover 144802 Control wiring harness 144864-01...
  • Page 28 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual ELECTRICAL PARTS - CONTINUED DO NOT ENTER TRAILER KEYED OPTION ENTER TRAILER OUTSIDE LIGHTS WHEEL-LOK™ BEFORE Loading or HORN OVERRIDE Unloading AFTER LOADING OPERATION Loading or COMPLETE Unloading 708 709 X2/N J13-1...
  • Page 29 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual ELECTRICAL PARTS LIST - CONTINUED Item Description Part Number Lock actuator components for LOK-P1/CBC 146005 Standoff, Male/Female, #6-32, 0.75" length 142100 Standoff, Male/Female, #6-32, 1.625" length 142101 Screw, round head, #6-32, 0.25" length...
  • Page 30 MWL-1300 Manual Wheel-Lok Rite-Hite ™ ® Owner's Manual MISC PARTS 8 1/2 MWL-1300 Wheel-Lok Vehicle Restraint Owners Manual 10 1/2 MADE IN U.S.A. This Manual Covers Restraints Built After Serial Numbers: 13KD900001M and up PRINTED IN U.S.A. PUBLICATION NO. 1307...
  • Page 31 Rite-Hite MWL-1300 Manual Wheel-Lok ® ™ Owner's Manual OPTIONAL EQUIPMENT REPLACEMENT PARTS (Right Side Facing Dock) Also used as optional protective guide for Lefts Side Facing Dock MWL installations. (Left Side Facing Dock) Also used as optional protective guide for Right Side Facing Dock MWL installations.
  • Page 32 Product claimed to be defective and shall, at Rite-Hite's option, either (x) grant Rite-Hite or its agent access to Owner's premises for the purpose of repairing or replacing the Product or (y) return of the Product to the Rite-Hite, F.O.B.
