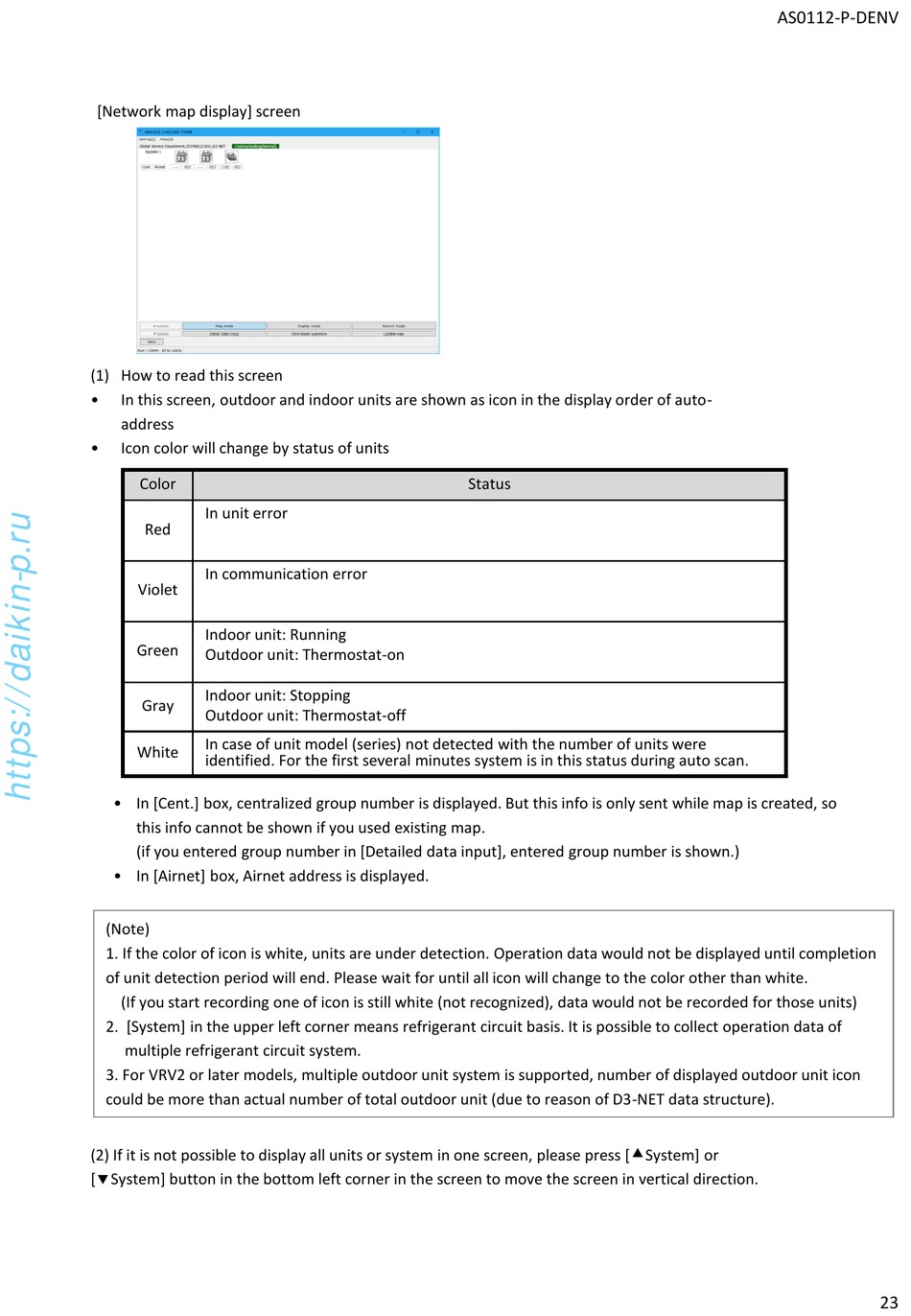

[Network map display] screen
(1) How to read this screen
• In this screen, outdoor and indoor units are shown as icon in the display order of auto-
address
• Icon color will change by status of units
Color
In unit error
Red
In communication error
Violet
Indoor unit: Running
Green
Outdoor unit: Thermostat-on
Indoor unit: Stopping
Gray
Outdoor unit: Thermostat-off
In case of unit model (series) not detected with the number of units were
White
identified. For the first several minutes system is in this status during auto scan.
• In [Cent.] box, centralized group number is displayed. But this info is only sent while map is created, so
this info cannot be shown if you used existing map.
(if you entered group number in [Detailed data input], entered group number is shown.)
• In [Airnet] box, Airnet address is displayed.
(Note)
1. If the color of icon is white, units are under detection. Operation data would not be displayed until completion
of unit detection period will end. Please wait for until all icon will change to the color other than white.
(If you start recording one of icon is still white (not recognized), data would not be recorded for those units)
2. [System] in the upper left corner means refrigerant circuit basis. It is possible to collect operation data of
multiple refrigerant circuit system.
3. For VRV2 or later models, multiple outdoor unit system is supported, number of displayed outdoor unit icon
could be more than actual number of total outdoor unit (due to reason of D3-NET data structure).
(2) If it is not possible to display all units or system in one screen, please press [System] or
[System] button in the bottom left corner in the screen to move the screen in vertical direction.
Status
