Ricoh StreamPunch
Contents
1.
2.
3.
4.
5.
6.
7.
ACCO Brands, Inc.
1
Four Corporate Drive
Lake Zurich, IL 60047
www.acco.com

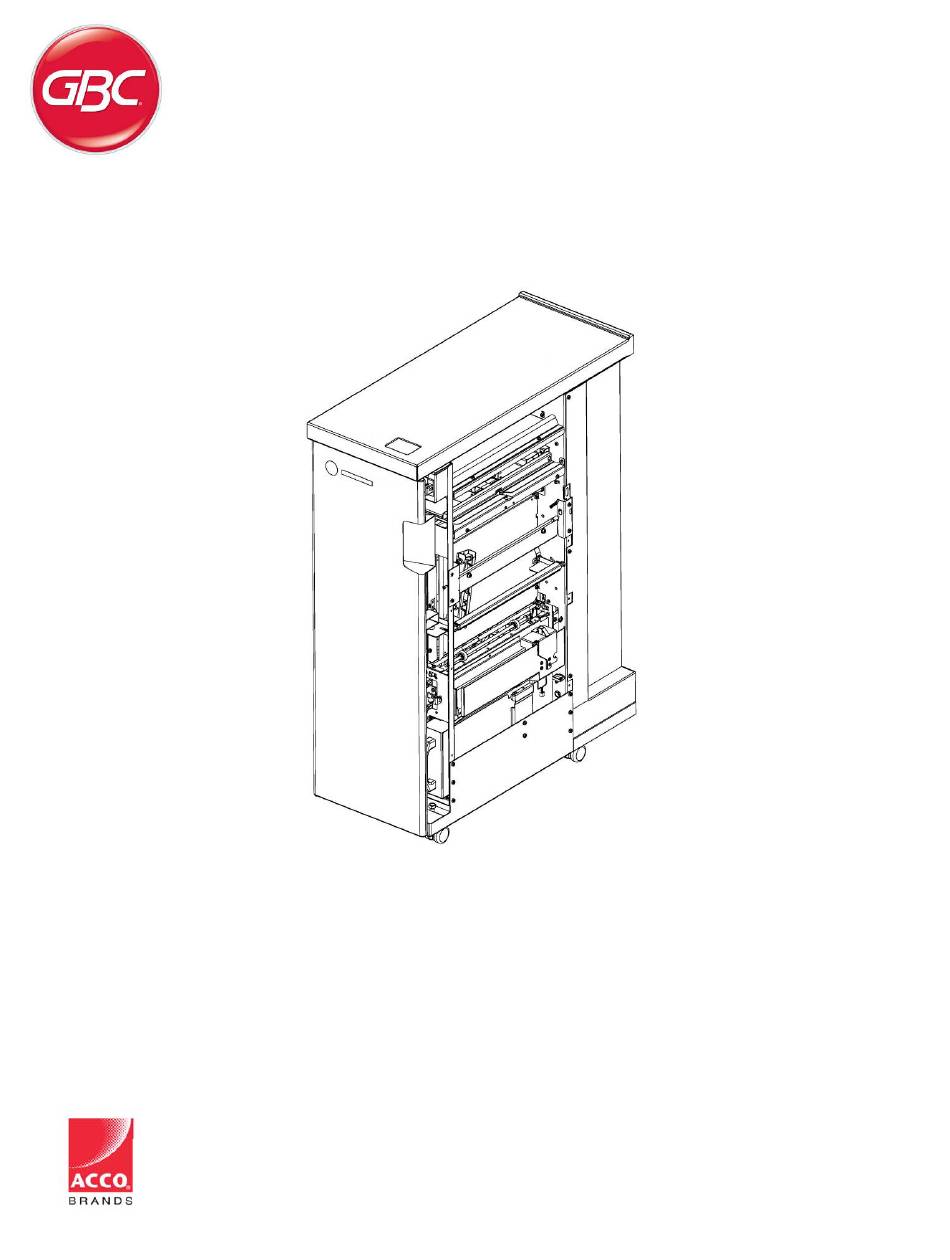

Ricoh StreamPunch Pro, Pro EX & MP Installation Manual
Pro, Pro EX & MP
™
Installation Manual
Page
2
2
2
5
7
8
9
Part No. 7712832
Rev No. K1
Issue Date: April 11, 2014
1
Advertisement
Related Manuals for GBC Ricoh StreamPunch Pro
Summary of Contents for GBC Ricoh StreamPunch Pro
-
Page 1: Table Of Contents
Docking Bracket Installation Leveling & Height Adjustment Final Steps Part No. 7712832 Rev No. K1 ACCO Brands, Inc. Issue Date: April 11, 2014 Four Corporate Drive Lake Zurich, IL 60047 www.acco.com Ricoh StreamPunch Pro, Pro EX & MP Installation Manual... -
Page 2: Recommendations And Pre-Requisites
SR5000 Finisher The cables below are required to attach the StreamPunch Pro to this type of finisher. Finisher to StreamPunch cable Finisher to printer cable (longer version) p/n VR340046 p/n VRC57001 Ricoh StreamPunch Pro, Pro EX & MP Installation Manual... - Page 3 #8 screws provided, to the lower entrance guide of the StreamPunch. If installing the StreamPunch directly downstream from the printer, contact your local service representative to obtain the correct entrance guide. Go to Section 4 to complete the installation. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual...
- Page 4 StreamPunch, the angled guide shown below should be fitted in place of the 90 degree guide. The angled exit guide is provided with the installation kit. Lower exit Angled Standard 90 guide exit guide degree exit guide Ricoh StreamPunch Pro, Pro EX & MP Installation Manual...
-
Page 5: Installing The Sound Deadening Foam
4.1 Paper Exit Side (Finisher Side) Apply the wide strip to the right side as shown. Apply one of the two shorter pieces to the side of the top cover as shown. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual... - Page 6 Apply the last remaining short strip to the top cover edge of the printer side of the StreamPunch as shown. Apply the last remaining long strip to the left side of the printer side of the StreamPunch as shown. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual...
-
Page 7: Docking Bracket Installation
StreamPunch. The docking bracket(s) provided with the finisher should be attached to the downstream side of the StreamPunch with 4 size M4 screws. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual... -
Page 8: Leveling & Height Adjustment
Using the 9/16” (15mm) wrench, rotate the caster stems to change the height. Re-tighten the jam nuts once the correct height is achieved. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual... -
Page 9: Final Steps
Run a small job with punch enabled. Check the punched holes of the job. e) Run each die set to punch 100 sheets or until there is no oil residue around the holes. Ricoh StreamPunch Pro, Pro EX & MP Installation Manual...
