Connecting The Unit - Quooker Scale Control Plus Installation Manual

5
7
A
Scale Control Plus
cartridge
Reduces limescale
Step 1 When alarm sounds, 0% blinks.
Step 2 Unscrew the old cartridge (counter
automatically.
Step 3 Screw in the new cartridge
(clockwise).
Step 4
The Scale Control meter is 100%.
Step 5 Run boiling water for 20 seconds.
Step 6 Check for leaks.
6
COLD
8
B
B
A
COLD

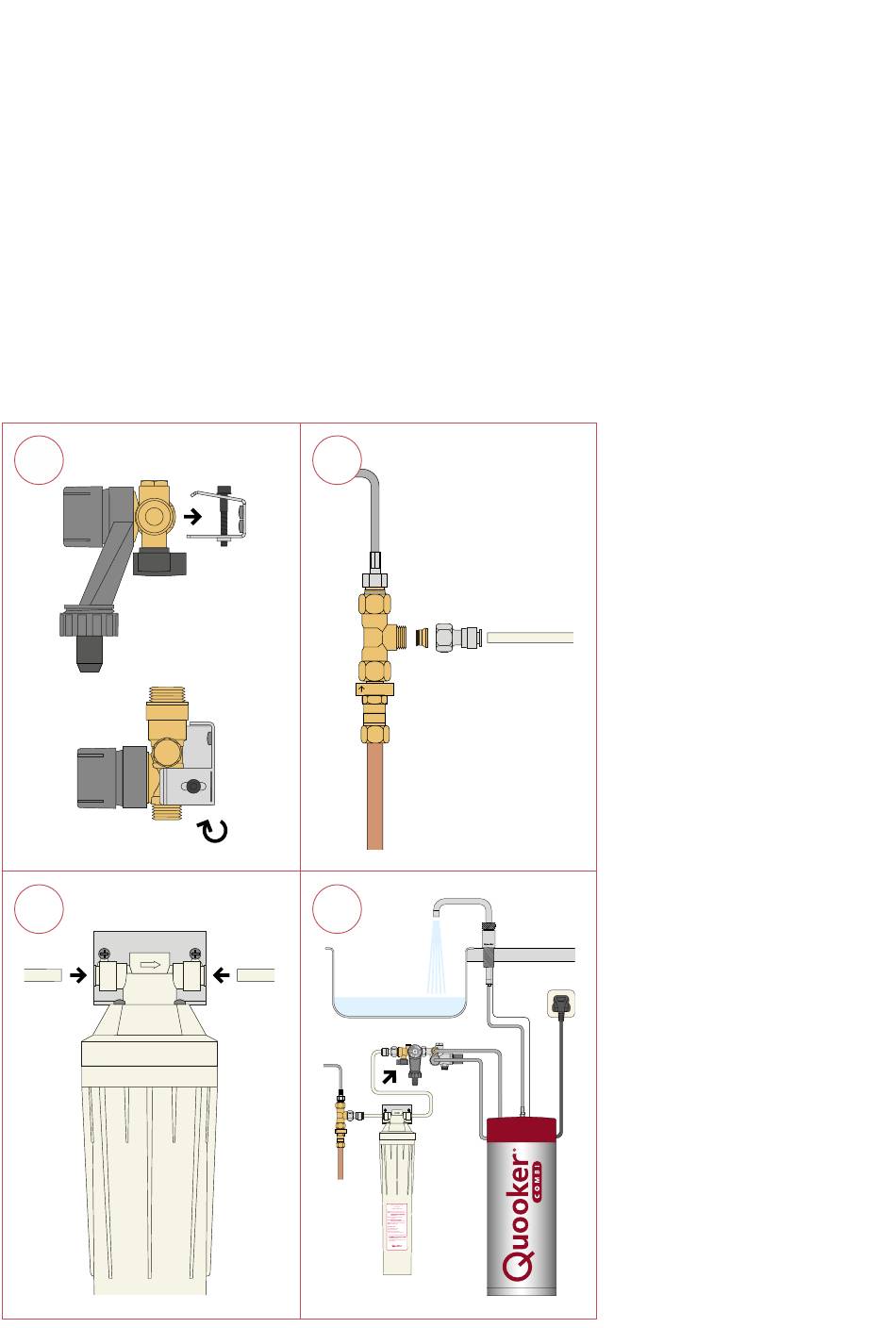

5. Mounting the inlet combination
Insert the inlet combination into the
bracket. Turn the screw on the top of the
bracket clockwise using the supplied Allen
key until the inlet combination is securely
attached.
A
6. Connecting the tube
Mount the provided push-fit connection
using the insert on the T-piece. Then
connect plastic tube A to the push-fit.
7. Connecting the Scale Control Plus
Now connect plastic tube (A) to the head
of the Scale Control Plus. Make sure that
this is done in the right direction (see
the arrow on the head). Now connect the
second plastic tube (B) to the other side
of the head.
8. Flushing out the cartridge
Open the inlet combination and turn on
the mains cold water supply. Ventilate the
system by opening the boiling water tap.
Flush the system with 20 litres of water
until the water runs clear. Turn on the tank.
Once the water has heated up again, the
Quooker system is ready to use.
