- Page 1 ENERGY & LIGHTING SUN POWER PS120A, PS180A Portable Solar Kit Installation and Operating Manual...
-
Page 3: Table Of Contents
PS120A, PS180A Explanation of symbols Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. -
Page 4: General Safety Instructions
• Fire hazards • Injury General safety WARNING! • Only use the device as intended. Any alternation to the product without express permission from Dometic Australia head office avoids warranty. • Disconnect the device – Before cleaning and maintenance – After use –... - Page 5 PS120A, PS180A General safety instructions • Electrical devices are not toys. Always keep and use the device out of the reach of children. • Children must be supervised to ensure that they do not play with the appliance. NOTICE! • Check the manufacturer‘s data for your battery and ensure that the maximum voltage of the solar charge controller does not exceed the manufacturer‘s recommended charging voltage.
-
Page 6: Scope Of Delivery
Scope of delivery PS120A, PS180A Scope of delivery PS 120A PS 180A No. in Description fig. 1 Portable solar panel with solar controller 5 m cable with Anderson plugs Alligator clips adapter Carry bag – Temperature sensor – Installation and operating manual... -
Page 7: Intended Use

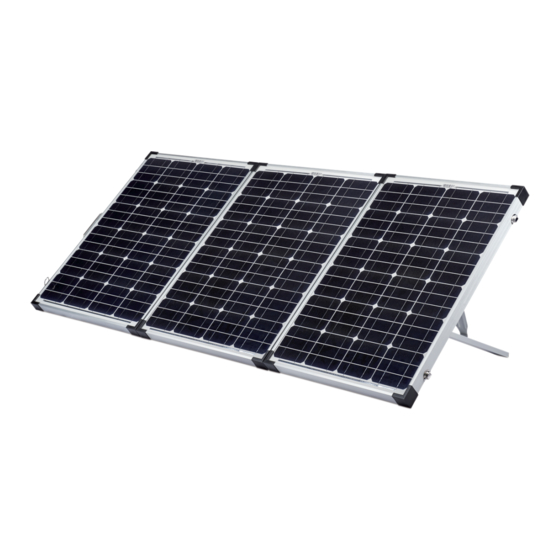

PS120A, PS180A Intended use Intended use The portable solar panel is a mobile power supply with a solar controller attached to the back for charging a 12 Vg battery and connecting a 12 Vg device. Technical description The portable solar panel is designed as monocrystalline construction with tempered glass coating. - Page 8 Technical description PS120A, PS180A Connecting and display elements No. in Description fig. 2 Solar controller Status LEDs Battery is being charged according to the number of LEDs shinning in cycle: LED 1 = 25% LED 2 = 50% LED 4 = 75%...
-
Page 9: Using The Appliance
PS120A, PS180A Using the appliance No. in Description fig. 3 Solar panel terminals Battery terminals Load terminals Using the appliance Positioning the solar panel NOTE To obtain maximum output, regularly move the solar panel to track movement of the sun throughout the day. - Page 10 Using the appliance PS120A, PS180A PS 120A PS 180A ➤ Extend the stands to the required length and lock them in position. Connecting the solar panel NOTICE! • Always observe the following connection sequence. Overvoltage can damage the electronics of the device.
- Page 11 PS120A, PS180A Using the appliance Connecting diagram Key to connecting diagram No. in Description fig. 5 Solar controller Load 12 Vg battery Solar panel...
- Page 12 Using the appliance PS120A, PS180A Connecting to a battery ➤ Connect the Alligator clips to the battery terminals. Connect the red lead with red clamp to the positive (+) battery terminal. Connect the black lead with black clamp to the negative (–) battery terminal. Ensure that the connection is secure and tight.
- Page 13 ➤ Replace the defective fuse (1) with a new fuse of the same type and rating: – Cable: 15 A, automotive, fast acting – Controller: 15 A for PS120A, 20 A for PS180A, automotive, fast acting ➤ Refit the protective cover.
-
Page 14: Troubleshooting
Troubleshooting PS120A, PS180A Troubleshooting If you are unable to rectify the fault, get in touch with a specialist workshop. Fault Possible cause Suggested remedy Device does not function, The device fuse is defective Replace the device fuse, see LED does not glow. -
Page 15: Disposal
PS120A, PS180A Disposal Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the... -
Page 16: Technical Data
Technical data PS120A, PS180A Technical data PS120A PS180A Ref. no.: 9108400883 9108400917 Panel type: Monocrystalline Peak power: 120 W ±3% 180 W ±3% Voltage at max. power (V 18.1 V Current at max. power (I 6.63 A 9.95 A Open circuit voltage: 22.44 V... - Page 17 PS120A, PS180A Technical data Measurements PS 120A 1068 PS 120A...
- Page 18 Technical data PS120A, PS180A PS 180A PS 180A 1614...
- Page 20 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
